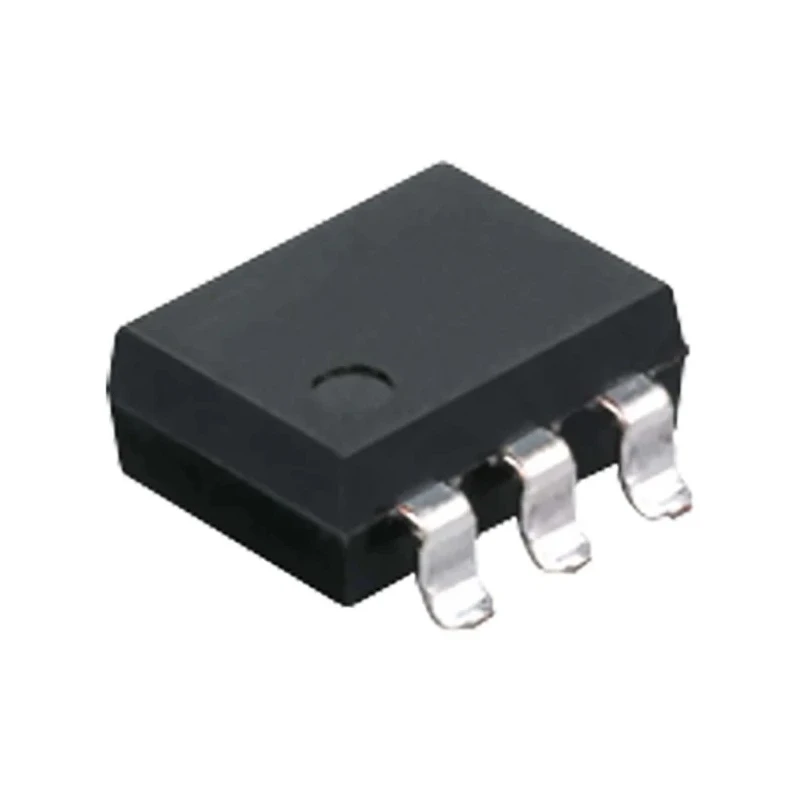

Panasonic PhotoMOS Series Solid State Relay Surface Mount 6 A Load 30 V Load AQV251GA

Panasonic AQV251GA PhotoMOS Series Solid State Relay is a high-performance electronic relay designed for industrial and commercial applications requiring reliable, high-frequency switching. It features a surface mount body with through hole terminals, enabling easy integration into various PCB layouts. This relay supports a maximum load current of 6 A and a load voltage up to 30 V, making it suitable for controlling small to medium power devices.

The PhotoMOS relay utilizes MOSFET technology that ensures low on-state resistance (80 mΩ typical), thus enhancing energy efficiency by minimizing power loss during conduction. An extremely low off-state leakage current of 1 μA reduces standby energy consumption. With a contact configuration of SPST (Single Pole Single Throw) and AC/DC switching functionality, this relay is versatile for multiple circuit designs.

Engineered to operate within a temperature range between -40°C and 85°C, it is durable for harsh industrial environments. The low capacitance of 1.5 pF helps reduce noise and prevents signal distortion, enhancing performance in sensitive electronic circuits.

Manufactured in Japan, the AQV251GA meets RoHS compliance, ensuring that it adheres to environmental and safety regulations for hazardous substances. This makes it an excellent replacement for traditional mercury or mechanical relays, offering increased lifespan and reliability with no mechanical wear.

This solid state relay suits applications in industrial automation, electrical equipment, signal conditioning, measurement instruments, and electronic controls. Its compact form factor helps save PCB space while delivering high capacity and durability.

Supports maximum load current of 6 A for reliable switching. Surface mount type with through hole terminal ensures flexible installation options. Low on-state resistance of 80 milliohms minimizes power loss during operation.

Operates efficiently within a temperature range of -40°C to 85°C. Features AC/DC switching function and SPST contact configuration for versatile applications. Contains MOSFET output with very low off-state leakage current of 1 microampere.

Capacitance is minimal at 1.5 picofarads to reduce interference. Complies with RoHS standards ensuring environmental safety. Manufactured in Japan to strict quality standards. Browse Panasonic Solid State Relays and other electronic components on EnvMart for quality and reliability in your projects.
