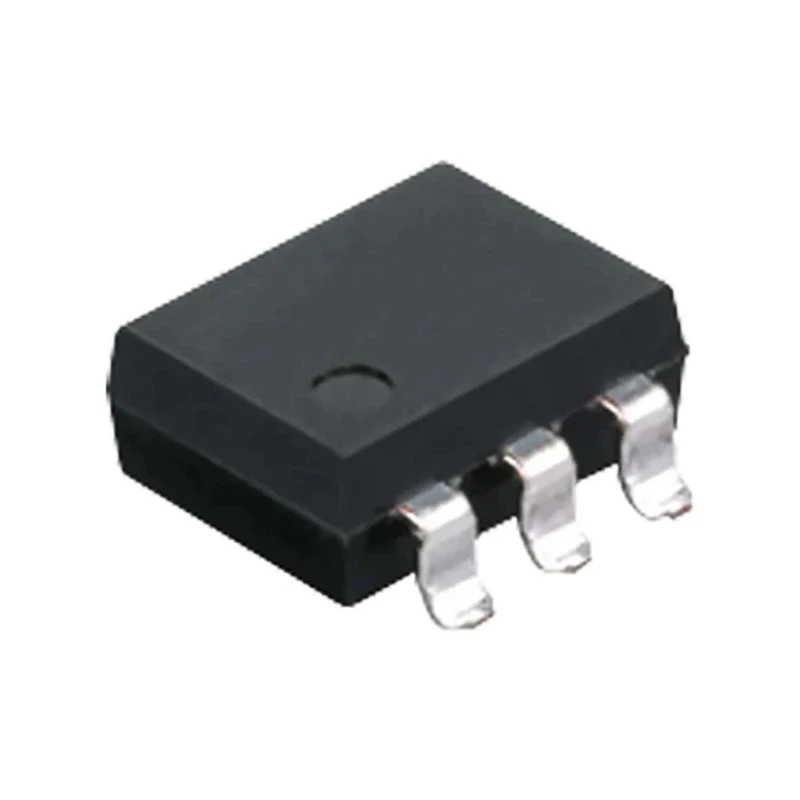

Panasonic PhotoMOS Series Solid State Relay, 6 A Load Current, Surface Mount, 30 V Load AQV251GA

Panasonic AQV251GA is a PhotoMOS series solid state relay designed for reliable and efficient load switching up to 6 amperes with a maximum load voltage of 30 volts. Featuring a compact surface mount package with through-hole terminal type, this relay is suitable for AC and DC switching applications in industrial automation, electrical controls, and signal conditioning systems.

The device has an exceptionally low on state resistance of 80 milliohms, which results in minimal power dissipation during operation. It operates effectively in environments ranging from -40°C to 85°C, making it ideal for harsh industrial conditions. The relay's output is based on MOSFET technology, ensuring low off state leakage current of 1 microampere and high switching frequency capabilities.

This solid state relay is suitable for replacing traditional mercury and mechanical relays with improved durability and reliability. It supports continuous load currents of up to 3.5 amperes in a compact DIP package, enabling flexible industrial application usage.

Key functional specifications include SPST contact configuration, capacitive load of 1.5 pF, and compliance with RoHS standards governing environmental safety.

Manufactured in Japan, the Panasonic AQV251GA offers reliable performance for electrical, industrial automation, manufacturing, and HVAC control systems. Its integration ensures long-term stable operation and simplified system design without mechanical wear concerns.

Compact and highly reliable PhotoMOS relay suitable for AC/DC load switching. 6 A maximum load current supports robust industrial usage scenarios. Low on state resistance and leakage current improve system efficiency. Wide operating temperature range qualified for harsh industrial environments.

Surface mount package with through-hole terminals for versatile mounting. Compliant with RoHS for environmental and quality standards assurance. Manufactured in Japan ensuring premium product quality and consistency. Suitable for replacing mechanical relays to enhance durability and lifespan.

High switching frequency suitable for automation and signal conditioning. Low capacitance ensures minimal interference in switching applications. Explore more Panasonic electronics and relays in the Solid State Relay category at EnvMart for industrial-grade automation and control solutions.
