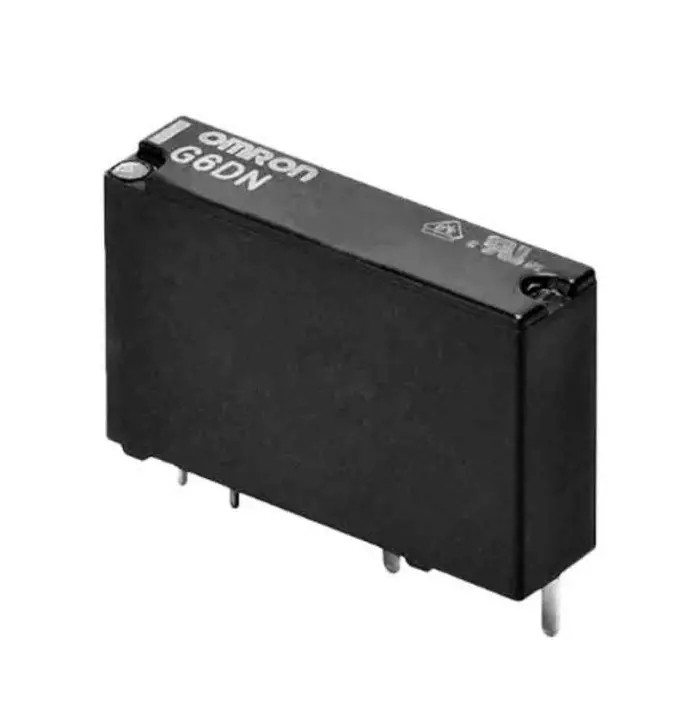

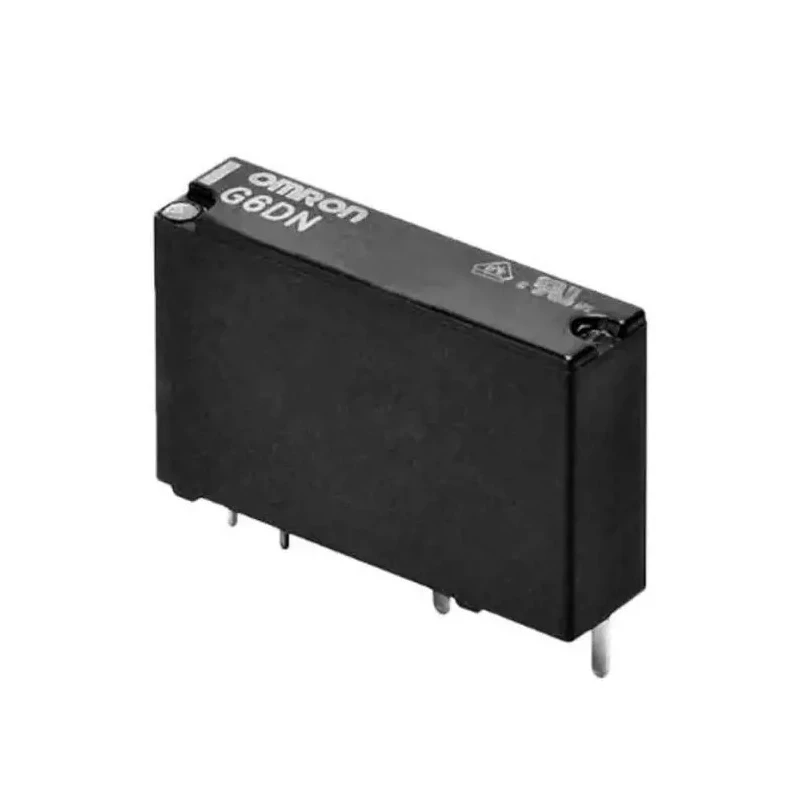

Omron Power Relay SPST PCB Mount 12V DC Coil 5A Switching Current G6DN-1A DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 12.5mm |
| Length | 20mm |
| Model | G6DN-1A DC12 |
| Width | 5.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6DN |
| Maximum Operating Temperature | 90°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 800Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 110mW |
Key Features
- Compact dimensions of 20mm length, 12.5mm height and 5.1mm width.
- Low coil power consumption of 110mW for energy-efficient operation.
- Silver alloy contacts ensure reliable conductivity and durability.
- Wide operating temperature range from -40°C to 90°C for versatile industrial applications.
- Contact resistance is a low 100mΩ, ensuring minimal signal loss.
- Supports switching AC voltages up to 277V and DC voltages up to 125V.
- Coil resistance is 800Ω, designed for optimal relay performance.
- Designed according to RoHS standards for environmental compliance.
Product Description
Omron G6DN-1A DC12 Power Relay is a compact, high-performance SPST relay designed for PCB mounting with a 12V DC coil voltage and 5A switching current suitable for a wide range of industrial electronic controlling applications.
This power relay measures 20 mm in length, 12.5 mm in height, and 5.1 mm in width, with a coil power consumption of only 110 mW, making it energy efficient and suitable for compact circuit designs.
The relay features silver alloy contacts that provide high conductivity and durability, as well as a contact resistance of only 100mΩ ensuring reliable signal transmission. Operating temperature ranges from -40°C to +90°C allow use in harsh industrial environments.
It supports switching voltages of up to 277V AC and 125V DC, and a coil resistance of 800 Ω optimizes relay coil drive characteristics. The relay is mounted via PCB pins, making it ideal for integration in programmable controller outputs, temperature controllers, output control systems, and building automation applications within industrial, commercial, and laboratory environments.
The product conforms to RoHS standards, ensuring environmental safety by restricting hazardous substances. Compact SPST power relay with 5A switching current. Low coil power consumption of 110mW for efficiency. Silver alloy contacts for reliable conductivity.
Wide temperature range from -40°C to +90°C for industrial use. Low contact resistance of 100mΩ for signal integrity. Switches AC up to 277V and DC up to 125V. PCB mount with pin type terminals. RoHS compliant for environmental safety.
Suitable for industrial control systems and automation. Explore more Power Relays and Omron products in our Electronics & Electricals category to find precisely engineered solutions for your automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron G6DN-1A DC12 power relay has a switching current rating of 5A.
This relay operates with a coil voltage of 12V DC.
The dimensions of the relay are 20mm in length, 12.5mm in height, and 5.1mm in width.
The relay features a Single Pole Single Throw (SPST) contact configuration.
It can switch AC voltages up to 277V and DC voltages up to 125V.
The coil power consumption is 110mW, making it energy efficient.
The contact resistance is 100mΩ, ensuring minimal signal loss.
The relay operates within a temperature range of -40°C to +90°C.
This model is designed for PCB mounting with pin type terminals.
The contacts are made of silver alloy, providing reliable conductivity.
Yes, it conforms to RoHS standards for environmental safety.
The coil resistance is 800Ω, which is designed for optimal relay performance.
