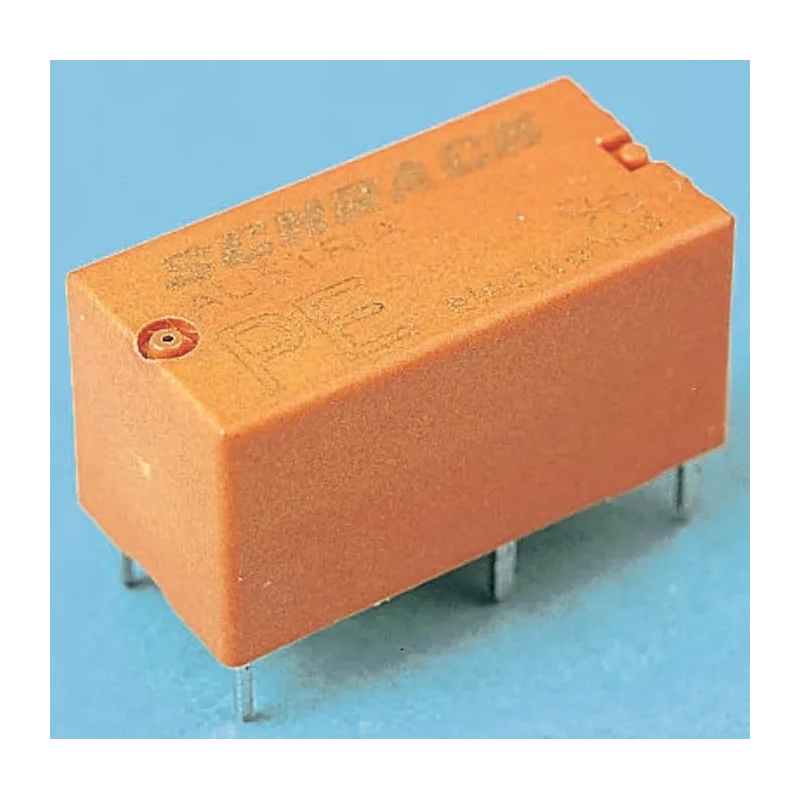

TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current SPDT 2-1393219-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS, REACH, IEC |
| Coil Resistance | 685Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
| High Coil sensitivity | 200mW |
Key Features
- Coil voltage is 12V DC for efficient operation.
- Single Pole Double Throw (SPDT) contact configuration supports versatile switching.
- Switching current rating of 5A ensures reliable load handling.
- Coil power consumption is low at 200mW, enhancing energy efficiency.
- Operating temperature ranges from -40°C to +85°C for wide environmental suitability.
- Constructed with silver alloy contacts for durability and conductivity.
- Designed for PCB mount with solder terminal type for secure connections.
- Complies with UL, RoHS, REACH, and IEC standards for safety and environmental compliance.
Product Description
TE Connectivity 2-1393219-0 PCB Power Relay is a versatile and reliable power relay designed for industrial electronics, household appliances, and control equipment. Featuring a 12V DC coil voltage and low coil power consumption of 200mW, this SPDT relay offers high sensitivity and efficient operation.
Its switching current rating of 5A and switching AC voltage capability up to 400V AC make it suitable for a variety of electrical switching applications. The relay is designed for PCB mounting with solder-type terminals ensuring secure and stable connections.
The compact form factor measures 20mm in length, 10mm in width, and 10mm in height, facilitating easy integration into electronic assemblies. Its silver alloy contacts provide durability and excellent conductivity, ensuring consistent performance.
Operable within a temperature range of -40°C to +85°C, this relay withstands harsh environmental conditions. It meets important industry standards including UL, RoHS, REACH, and IEC, ensuring compliance with safety and environmental regulations.
Applications include various industrial electronic systems, household appliance controls, and other equipment requiring reliable switching capabilities. The PE Series relay offers high coil sensitivity and creepage and clearance distances of 4 mm and 3.2 mm respectively for electrical safety.
Coil voltage rating of 12V DC with 200mW coil power consumption. Single Pole Double Throw (SPDT) contact configuration. 5A switching current rating and 400V AC switching voltage capability. Compact 20mm x 10mm x 10mm dimensions for PCB mounting.
Silver alloy contact material ensures longevity and conductivity. Operating temperature range from -40°C to +85°C. Compliant with UL, RoHS, REACH, and IEC standards. High coil sensitivity and electrical creepage and clearance distances.
Ideal for industrial electronics, household appliances, and control equipment. Explore a wide range of Power Relays and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC, which allows for efficient operation.
This model has a switching current rating of 5A, ensuring reliable load handling.
The relay measures 20mm in length, 10mm in width, and 10mm in height, making it compact for PCB mounting.
It features a Single Pole Double Throw (SPDT) contact configuration, which supports versatile switching applications.
The operating temperature range for this relay is from -40°C to +85°C, allowing it to function in a wide variety of environmental conditions.
The coil power consumption is low at 200mW, enhancing energy efficiency during operation.
The contacts are made of silver alloy, which provides durability and excellent conductivity.
This relay complies with UL, RoHS, REACH, and IEC standards, ensuring safety and environmental compliance.
It is designed for PCB mounting with solder-type terminals, ensuring secure and stable connections.
The maximum switching AC voltage capability of this relay is 400V AC, making it suitable for various electrical applications.
The coil resistance of this relay is 685Ω, which is relevant for its operation and efficiency.
This power relay is suitable for industrial electronics, household appliances, and control equipment requiring reliable switching capabilities.
