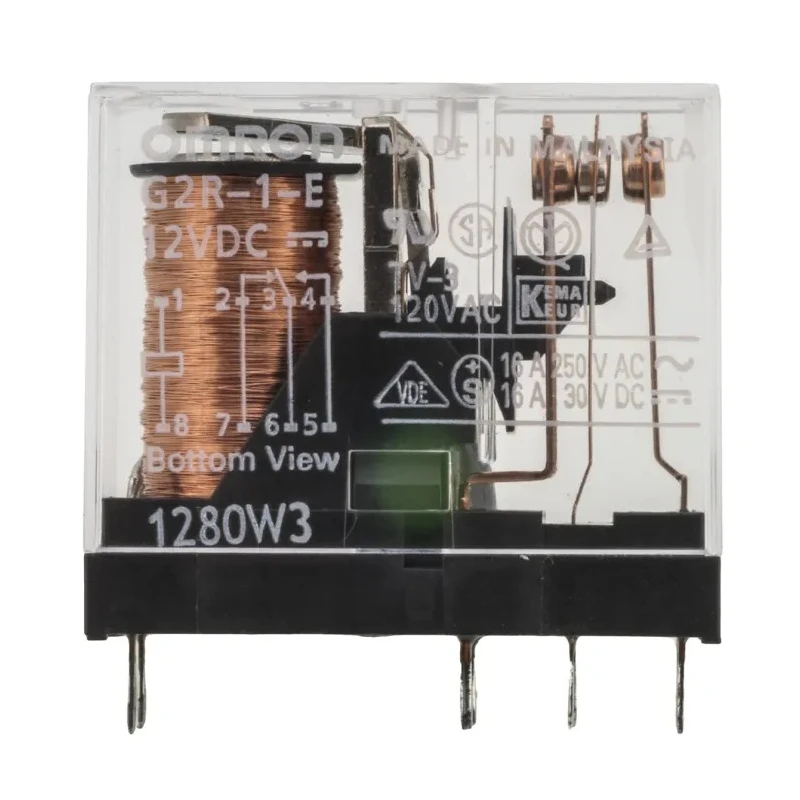

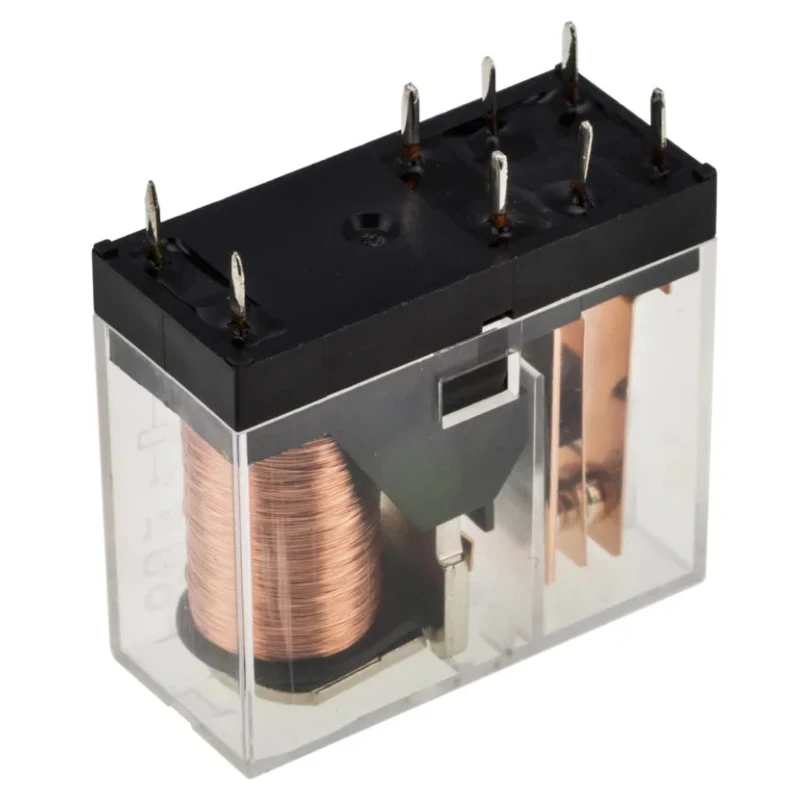

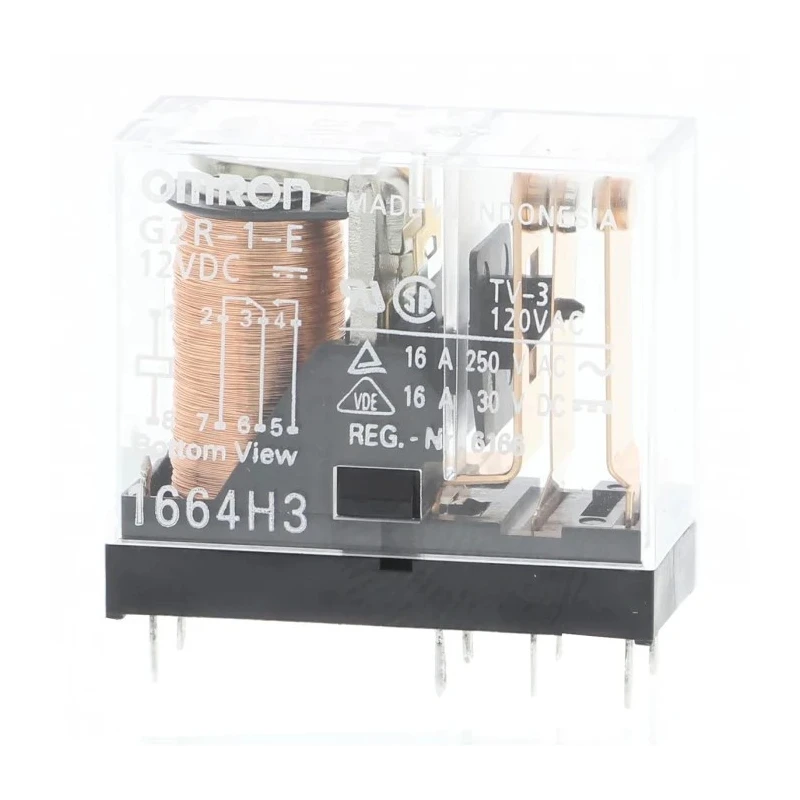

Omron G2R-1-E DC12 PCB Power Relay 12V DC Coil 16A Switching Current SPDT

Omron G2R-1-E DC12 is a high capacity PCB power relay designed for robust industrial and commercial automation applications. Featuring a 12V DC coil and a switching current of 16 amps, it provides reliable single pole double throw (SPDT) switching capability ideal for signal conditioning and power control tasks.

This power relay offers excellent safety with a dielectric strength of 5000 volts between coil and contacts, along with surge resistance up to 10,000 volts. The relay utilizes silver alloy contacts for high conductivity and a contact resistance of 30 milliohms maximum, ensuring efficient current flow and long service life.

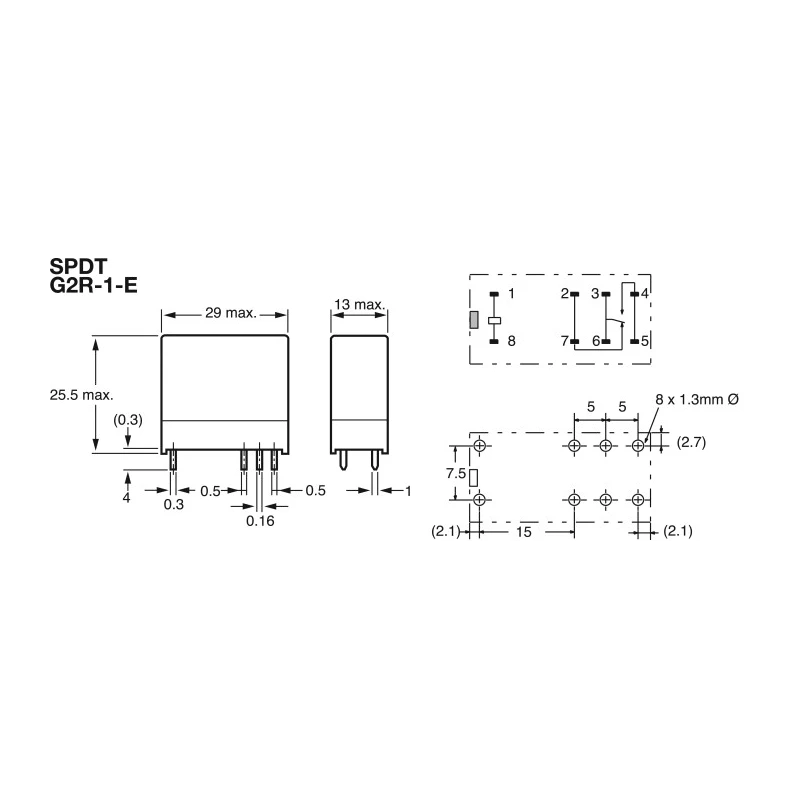

Its PCB mount design with through-hole terminals facilitates easy integration into printed circuit boards. The relay dimensions (25.5 mm height, 13 mm width, 29 mm length) and light weight (17 grams approx) make it suitable for compact electronic assemblies.

Operating temperature spans from -40°C to 70°C, enabling reliable performance in harsh and varying industrial environments. Coil specifications include 12V DC rated voltage, 43.6 mA current, and 275 ohms resistance, with standard relay operational timings of 15 ms operate and 5 ms release time.

The G2R series is RoHS compliant, ensuring adherence to environmental regulations. This relay finds extensive use in electrical automation, industrial machinery control, HVAC systems, manufacturing equipment, and other industrial power control applications.

Single pole double throw (SPDT) contact configuration for versatile switching. Coil voltage rated at 12 V DC with coil resistance of 275 Ω. Switching current capacity up to 16 A for high power operations. Designed for PCB mount with through-hole terminals for secure connections.

Compact dimensions: 25.5 mm height, 13 mm width, and 29 mm length. Silver alloy contacts ensuring reliable conductivity and durability. Operating temperature range from -40°C to 70°C suitable for harsh environments. Dielectric strength of 5000 V between coil and contacts for safety.

Compliance with RoHS standards for environmental safety. Lightweight at approximately 17 grams for compact assembly. Explore our range of Power Relays and electrical components at EnvMart for high-quality industrial automation solutions.
