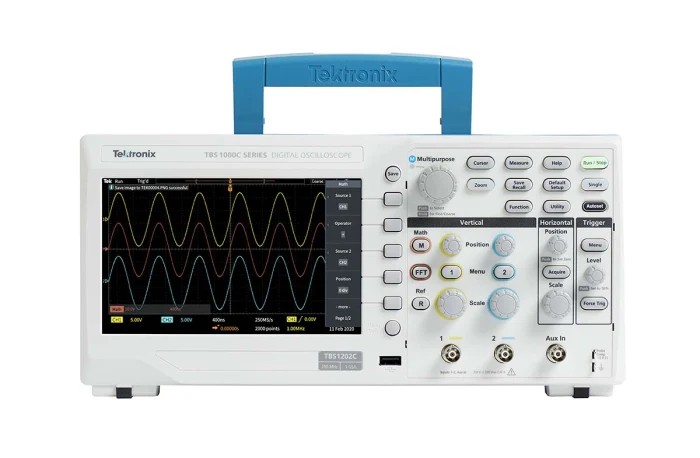

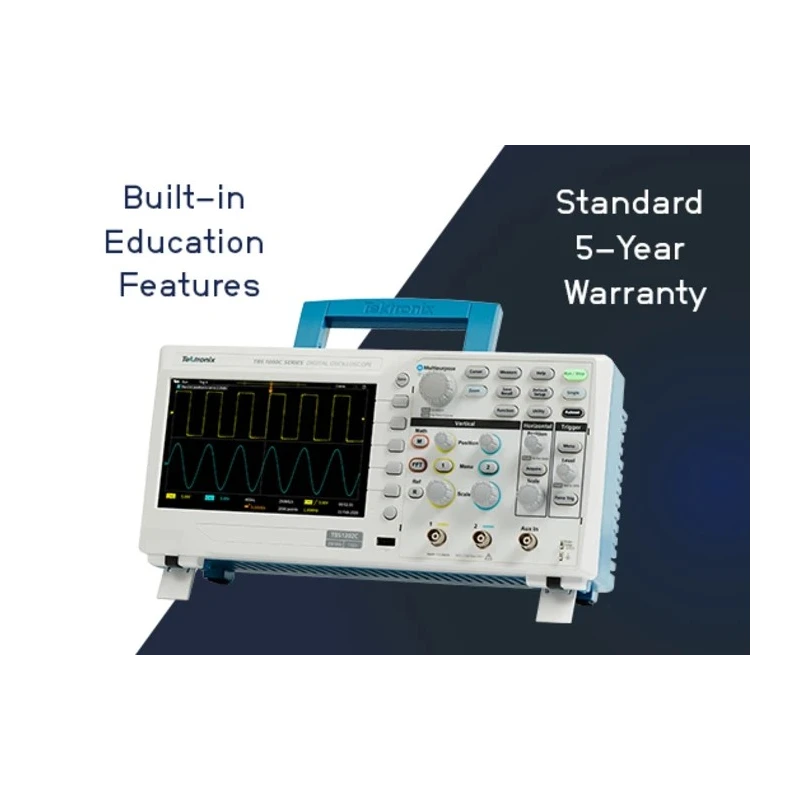

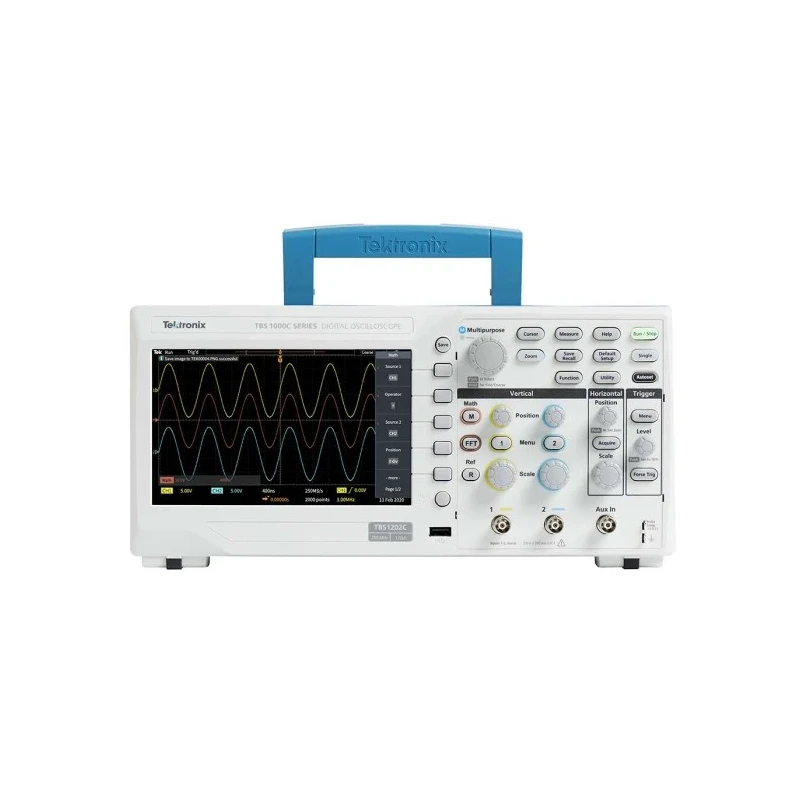

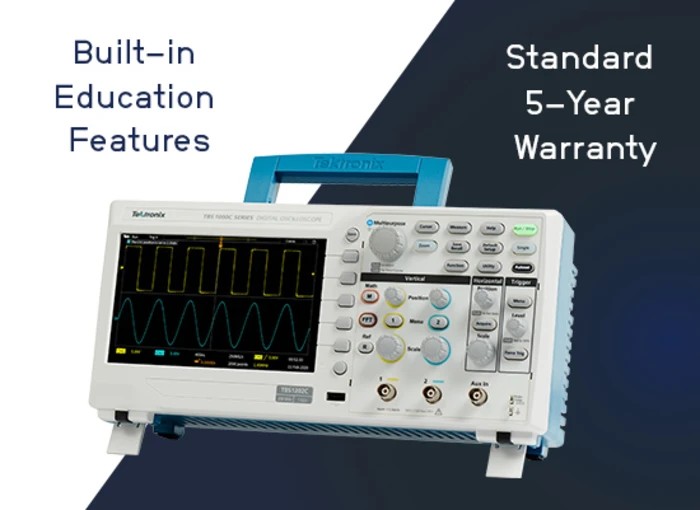

Tektronix 7-inch WVGA 100 MHz 2 Channel Digital Storage Bench Oscilloscope TBS1000C
Specifications
| Country of Origin | China |
|---|---|
| Display Type | WVGA |
| Brand | Tektronix |
| Height | 155mm |
| Model | TBS1000C |
| Depth | 106.8mm |
| Width | 325.12mm |
| Bandwidth | 100MHz |
| Series | TBS1000C |
| Screen Size | 7 in |
| Plug Type | Power Plug |
| Interfaces | language user Interface with support for 10 languages in the user Interface and front panel overlay |
| Number Of Channels | 2 |
| Vertical Resolution | 8 bit |
| Interface Type | BNC |
| Oscilloscope Type | Bench |
| Minimum Vertical Sensitivity | 1mV/div |
| Standards/Approvals | IEEE 488.1-1987 |
| Oscilloscope Form | Digital Storage |
| Minimum Time Base | 2ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 100s/div |
Key Features
- This oscilloscope features a 7-inch WVGA color display with 15 horizontal divisions for detailed waveform viewing.
- It supports up to 1 GS/s sample rate ensuring accurate and fast data capture.
- The instrument has an 8-bit vertical resolution for precise measurements.
- Trigger system includes Basic edge, Pulse width, and Runt triggering for enhanced diagnostics.
- Compact and lightweight design with fanless operation supports easy placement in labs or educational settings.
- Interfaces through BNC connectors for versatile signal input options.
- Comes with an integrated courseware system and Help Anywhere® for user-friendly operation.
- Supports multiple languages with a user interface in 10 languages for diverse users.
Product Description
Tektronix TBS1102C Digital Storage Bench Oscilloscope combines a 100 MHz bandwidth with a 2-channel configuration, delivering comprehensive signal capture and analysis capability. Featuring a 7-inch WVGA color display with 15 horizontal divisions, it provides enhanced waveform visualization. With an 8-bit vertical resolution and sample rates up to 1 GS/s, the scope ensures accuracy suitable for educational institutions, embedded design engineering, and maker projects.
This bench oscilloscope integrates a versatile trigger system including Basic edge, Pulse width, and Runt triggers, essential for troubleshooting both analog and digital signals in mixed-signal designs. The unit is fanless and lightweight, facilitating quiet and flexible use in laboratory or testing environments.
The user interface supports 10 languages and incorporates Help Anywhere® for intuitive operation, making it ideal for hands-on learning. The integrated courseware provides stepwise lab exercises to support educational curricula.
Connectivity is enhanced via a USB device port allowing screen captures and waveform data transfers to PC software, including Microsoft Word and Excel. The device's power plug is mains powered, adhering to IEEE 488.1-1987 standards for reliability and compatibility.
This oscilloscope supports automated measurements and dual-window FFT to view time and frequency domains simultaneously. The zoom function enhances waveform analysis by enabling detailed inspection of signal areas. Compact footprint and robust design make it suitable for industrial, laboratory, and educational use cases.
Includes a comprehensive 5-year standard warranty for peace of mind and investment protection.
This Tektronix oscilloscope is part of the TBS1000C series, renowned for combining powerful digital storage with user-friendly performance. It caters to diverse testing needs in industrial machines and instruments, laboratory equipment, manufacturing diagnostics, and electronics research.
Explore more products in the Oscilloscopes category at EnvMart for varied testing and measurement solutions by leading manufacturers including Tektronix.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix TBS1000C oscilloscope has a bandwidth of 100 MHz, allowing it to accurately capture and analyze high-frequency signals.
This model supports 2 channels, enabling simultaneous observation of multiple signals for comprehensive analysis.
The maximum sample rate of the TBS1000C is 1 GS/s, ensuring fast and accurate data capture for various applications.
It features a 7-inch WVGA color display, providing clear and detailed visualization of waveforms with 15 horizontal divisions.
The oscilloscope has an 8-bit vertical resolution, which allows for precise measurements of signal amplitudes.
This model includes a versatile trigger system with Basic edge, Pulse width, and Runt triggering for enhanced diagnostics of signals.
The dimensions of the TBS1000C are 325.12 mm in width, 106.8 mm in depth, and 155 mm in height.
The oscilloscope uses BNC connectors for versatile signal input options, accommodating various testing needs.
Yes, it supports a user interface in 10 languages, making it accessible for diverse users.
The minimum vertical sensitivity is 1 mV/div, while the maximum is 10 V/div, allowing for a wide range of signal amplitude measurements.
This oscilloscope adheres to the IEEE 488.1-1987 standards, ensuring reliability and compatibility in various applications.
It includes an integrated courseware system and Help Anywhere® for user-friendly operation, making it suitable for educational settings.
