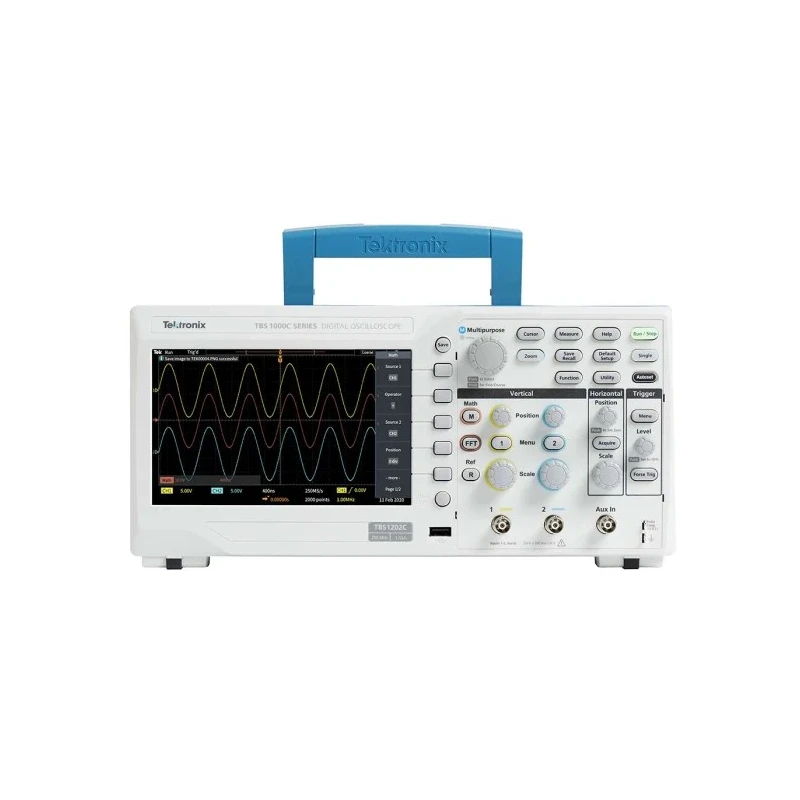

Tektronix Bench Digital Storage Oscilloscope 70 MHz Bandwidth 2 Channels 7 Inch TFT Colour Display TBS1000C
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT Colour |
| Brand | Tektronix |
| Height | 155mm |
| Model | TBS1000C |
| Depth | 106.8mm |
| Width | 325.12mm |
| Bandwidth | 70MHz |
| Series | TBS1000C |
| Screen Size | 7 in |
| Plug Type | USB |
| Interfaces | language user Interface with support for 10 languages in the user Interface and front panel overlay |
| Number Of Channels | 2 |
| Vertical Resolution | 8 bit |
| Memory Depth | 20Mpts |
| Interface Type | USB |
| Oscilloscope Type | Bench |
| Minimum Vertical Sensitivity | 1mV/div |
| Oscilloscope Form | Digital Storage |
| Minimum Time Base | 2ns/div |
| Maximum Vertical Sensitivity | 10mV/div |
| Maximum Time Base | 100s/div |
Key Features
- Compact design ideal for educational and embedded engineering applications.
- 7-inch WVGA colour TFT display with 15 horizontal divisions.
- Offers 20 Mpts memory depth and USB interface for data transfer.
- Provides a minimum time base of 2 ns/div and maximum time base of 100 s/div.
- Includes multiple trigger options including pulse width and runt triggers.
- Features integrated courseware and Help Anywhere system for user guidance.
- Supports pan and zoom functions for detailed waveform analysis.
- Equipped with dual window FFT for simultaneous time and frequency domain views.
Product Description
Tektronix TBS1000C Bench Digital Storage Oscilloscope delivers reliable 70 MHz bandwidth performance with 2 channels and a 7-inch colour TFT display. Designed for educational institutions, embedded design engineers, and makers, this oscilloscope offers 20 Mpts memory depth and an intuitive USB interface for easy data transfer.
Its compact and lightweight design features a 10 vertical by 15 horizontal division graticule to visualize signals clearly. The advanced trigger system includes pulse width and runt triggers, ideal for troubleshooting mixed signal designs. This model supports multitasking with dual window FFT views to analyze both time and frequency domains simultaneously.
Additional features include integrated courseware with step-by-step lab exercises, a multi-language user interface, and the Help Anywhere system to assist new users. The device allows users to disable autoset cursors and measurements for enhanced learning experience and supports pan and zoom to inspect waveform details precisely.
This oscilloscope is powered by mains supply and comes with a five-year warranty. Its small footprint and fan design make it suitable for laboratory, industrial, and educational environments requiring accurate and accessible signal testing.
Compact design suitable for education and embedded systems. 7-inch WVGA TFT colour display for clear visualization. 20 Mpts memory depth with USB interface connectivity. Advanced triggering including pulse width and runt triggers.
Integrated courseware and multi-language user interface. Dual window FFT for simultaneous time and frequency analysis. Pan and zoom function for detailed waveform inspection. Powered by mains supply with fan cooling. Designed for troubleshooting mixed signal designs and embedded applications.
Five-year standard warranty ensures long-term reliability.
Ideal for industrial, laboratory, educational, and embedded system test and measurement applications, this Tektronix Oscilloscope offers a robust and versatile tool for high quality signal analysis. Browse EnvMart's Measuring & Testing Instruments category for more Tektronix products and other precision test equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix TBS1000C oscilloscope has a bandwidth of 70 MHz.
This oscilloscope features 2 channels for signal analysis.
The memory depth of the TBS1000C is 20 Mpts.
It uses a 7-inch TFT colour display for clear visualization of waveforms.
The minimum time base is 2 ns/div, while the maximum time base is 100 s/div.
The vertical resolution of this oscilloscope is 8 bits.
It includes advanced triggering options such as pulse width and runt triggers.
The dimensions are 325.12 mm in width, 106.8 mm in depth, and 155 mm in height.
Yes, it features a USB interface for easy data transfer.
It is suitable for educational, laboratory, and embedded system test and measurement applications.
It includes integrated courseware and a Help Anywhere system for user guidance.
The country of origin for this oscilloscope is China.
