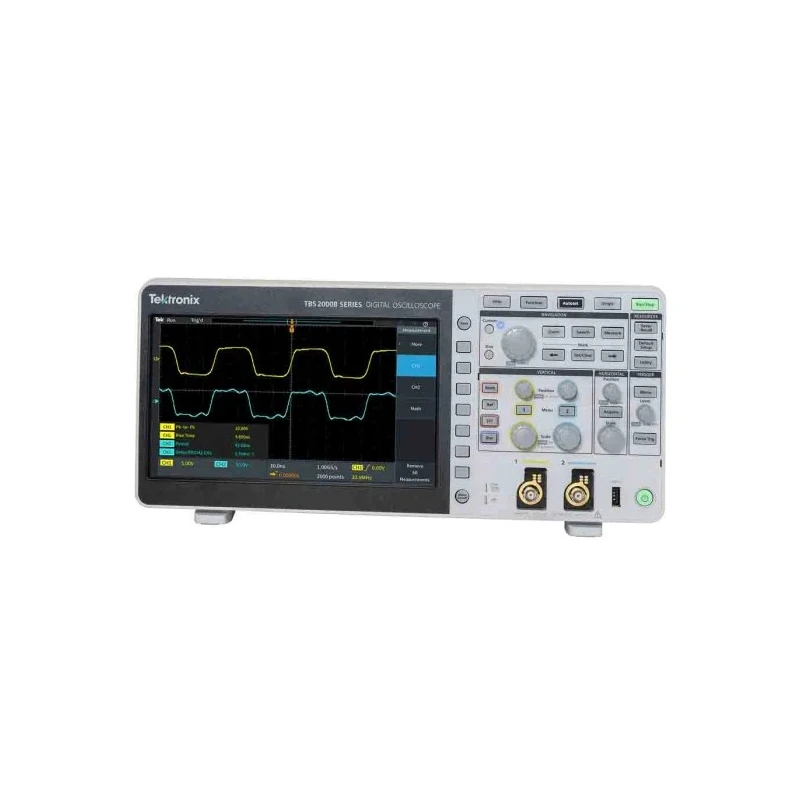

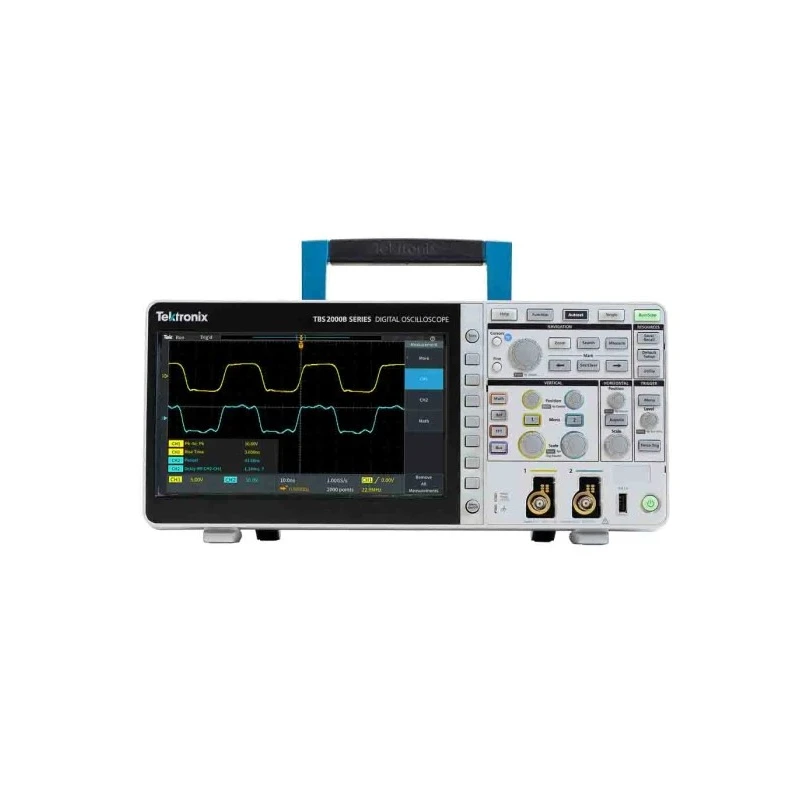

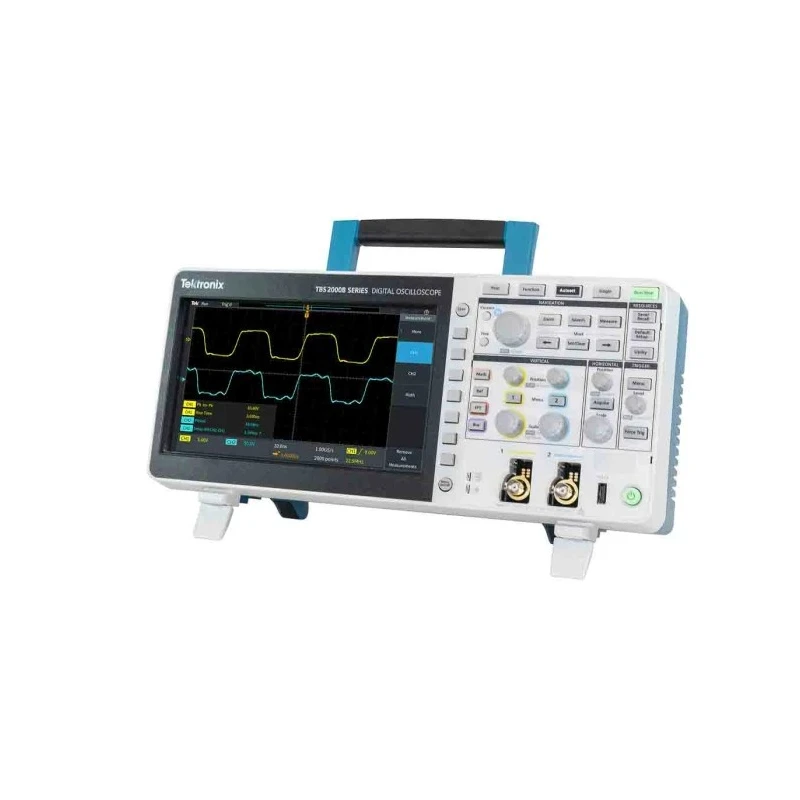

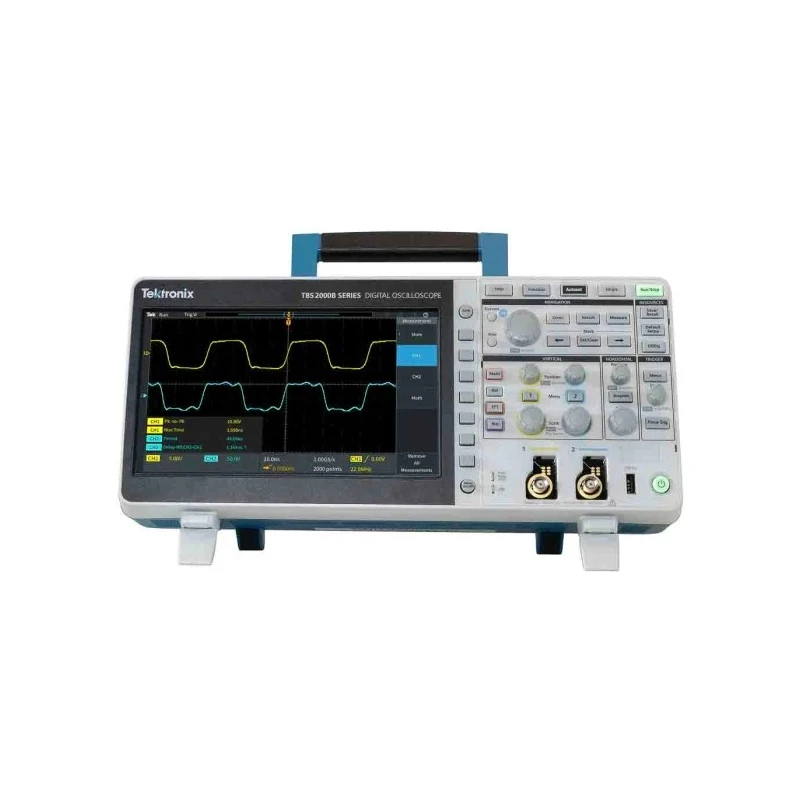

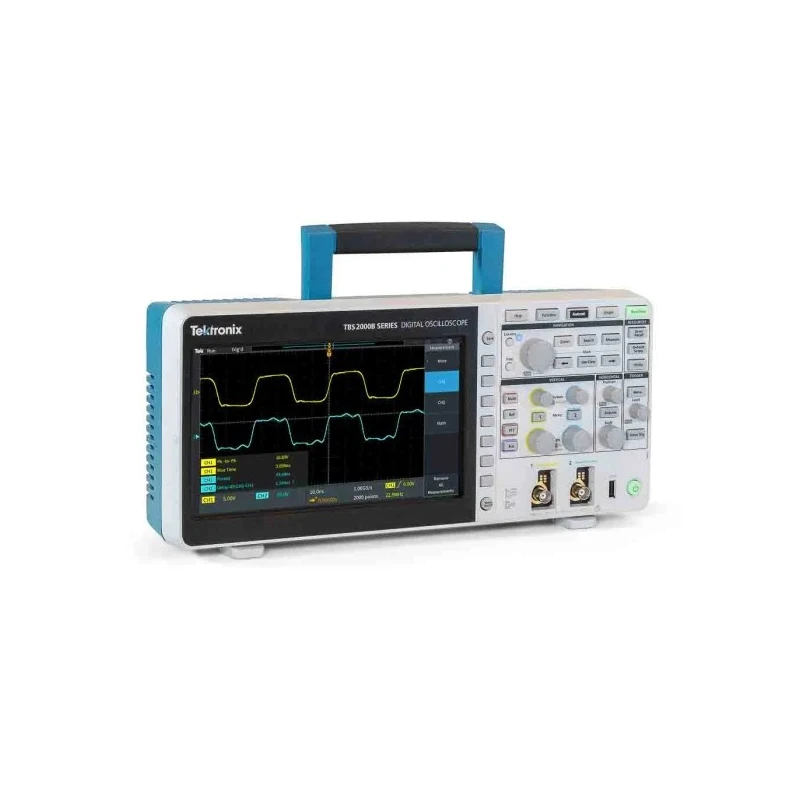

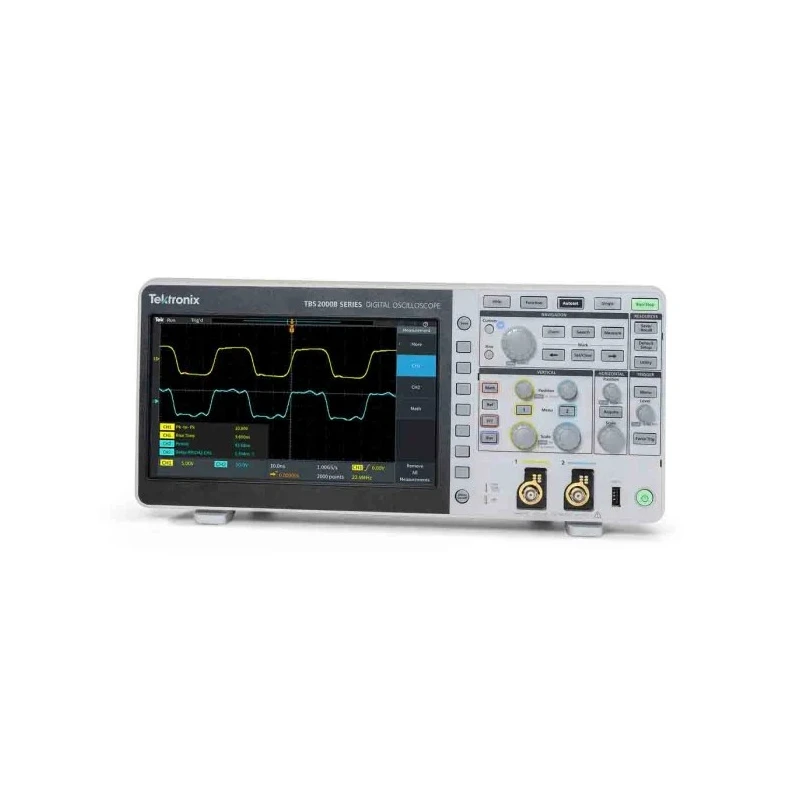

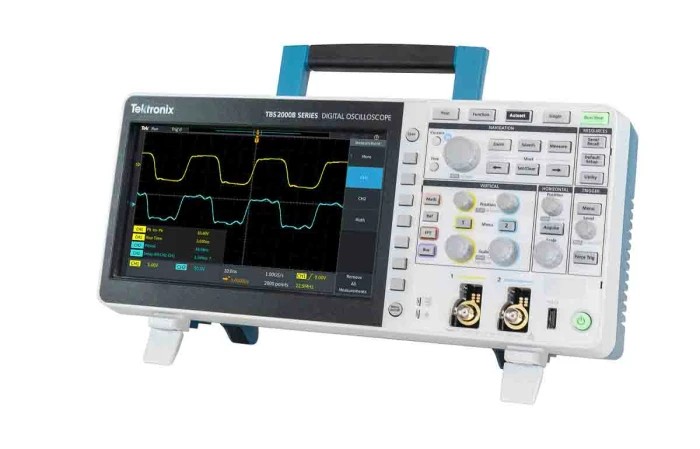

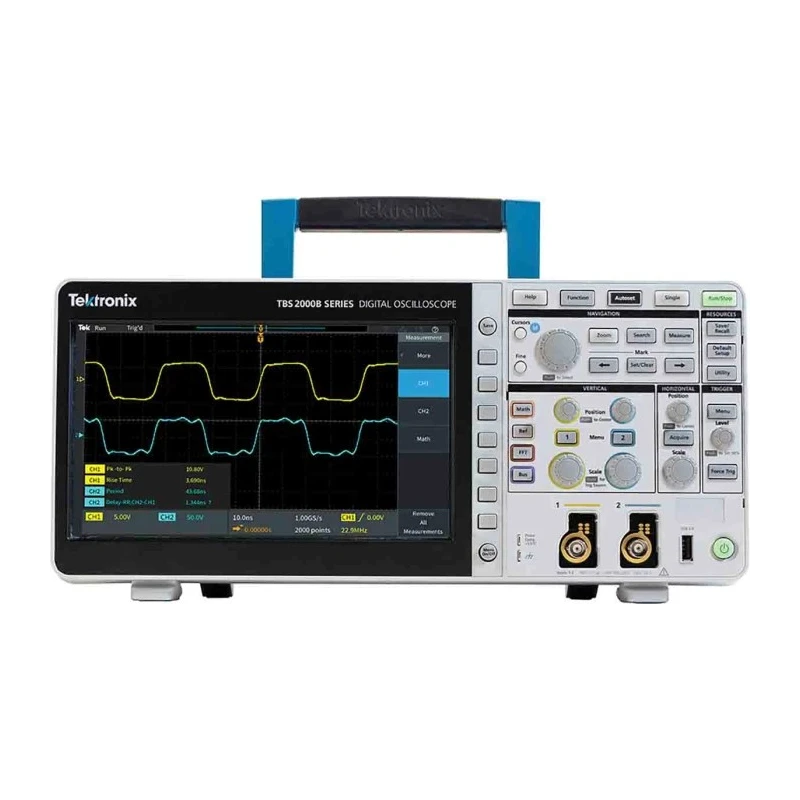

Tektronix Digital Storage Bench Oscilloscope 200 MHz, 2 Channels, 9-Inch TFT LCD TBS2000B

Tektronix TBS2000B series digital storage bench oscilloscope offers high-performance signal capture and analysis with 200 MHz bandwidth and 2 input channels. Featuring a 9-inch TFT LCD colour display, it provides 15 horizontal division grids for extended time views per screen, enabling improved signal visualization and measurement. The oscilloscope’s 5-million-point memory depth allows for long time window captures, while its sampling rate of 2 GS/s ensures precise waveform reproduction for debugging and design validation tasks.

Designed for industrial, laboratory, and educational environments, the TBS2000B integrates a user-friendly interface with dedicated control knobs facilitating quick evaluation of signals and settings adjustments. The instrument supports multiple probe types through the TekVPI™ probe interface, allowing use of passive, active voltage, differential, and current probes with automatic scaling and unit detection, broadening its application versatility.

This oscilloscope incorporates enhanced signal integrity with a lower noise front end and 8-bit vertical resolution, coupled with a minimum time base setting as fine as 1 ns/div to resolve detailed signal transitions accurately. Its connectivity options include Wi-Fi support via USB dongle and 100-BaseT Ethernet, simplifying data sharing and remote access workflows in engineering and embedded design labs.

Additional features such as 32 automated measurements, fast FFT analysis function, on-waveform cursor readouts, and search & mark waveform event identification improve measurement efficiency and user experience. The device’s compact bench form factor, measuring 372.4 mm width, 174.9 mm height, and 103.3 mm depth, makes it ideal for placement in university labs, manufacturing test benches, and research facilities.

The 9-inch TF LCD screen displays 15 horizontal grids for detailed waveform analysis. 5 Mpts memory depth captures long time signals with high fidelity. 2 GS/s sampling rate enables rapid signal acquisition. 32 automated measurements and FFT function facilitate comprehensive waveform analysis.

TekVPI™ probe interface supports diverse probes with automatic scaling. Low noise front end design improves signal accuracy and integrity. Wi-Fi via USB dongle and Ethernet port provide versatile connectivity. Compact bench form factor fits easily in labs and embedded design environments.

Dedicated controls ensure quick setup and operation.

Tektronix TBS2000B oscilloscope is engineered for applications in industrial testing, educational laboratory research, embedded development, manufacturing validation, and quality control testing. Its performance and connectivity afford seamless integration into automated test systems and flexible instrumentation setups, supporting complex debugging and waveform analysis tasks with ease.
