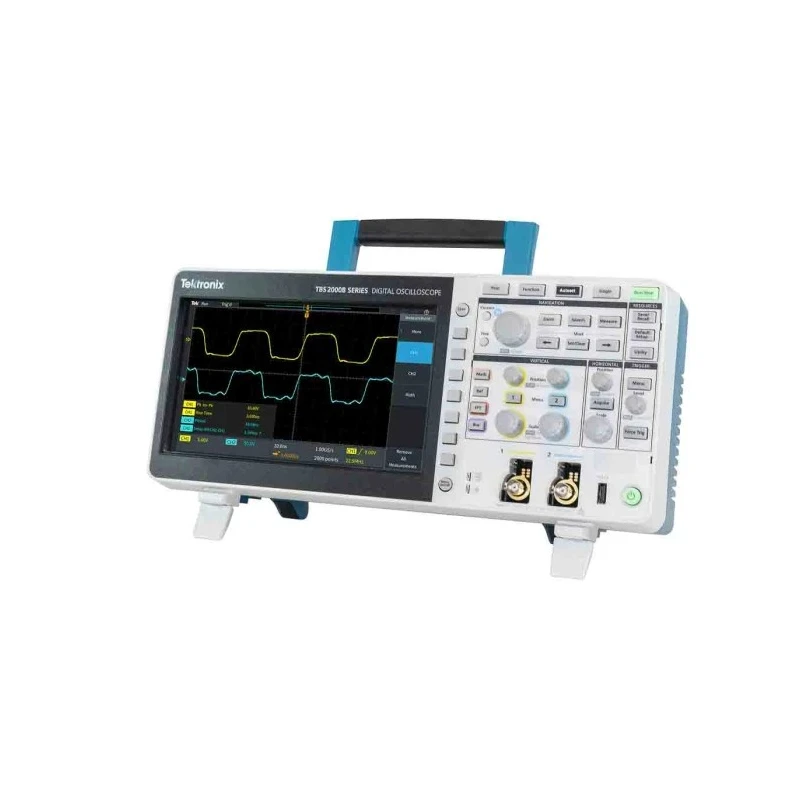

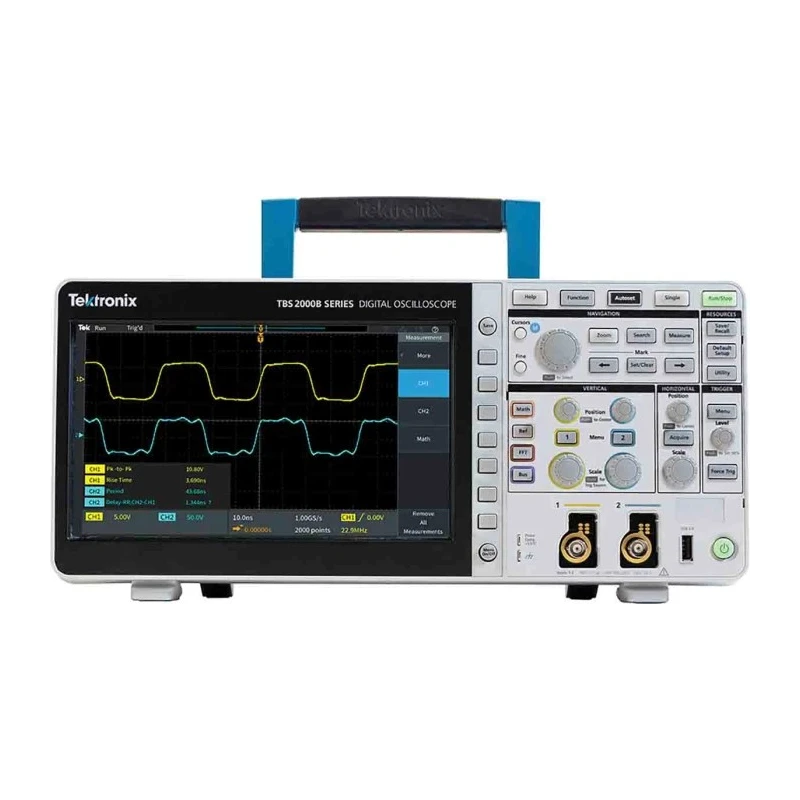

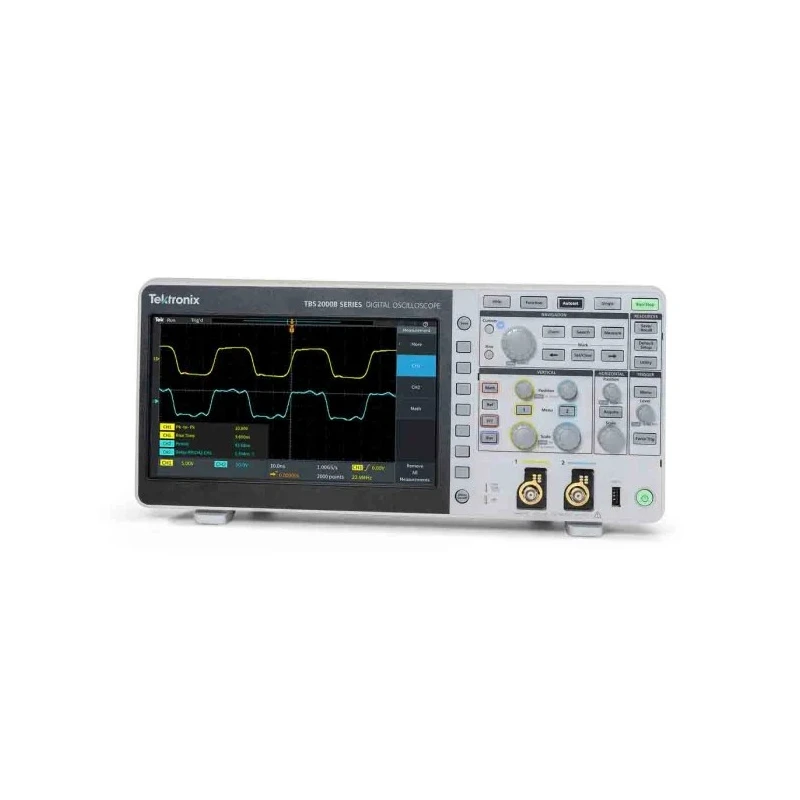

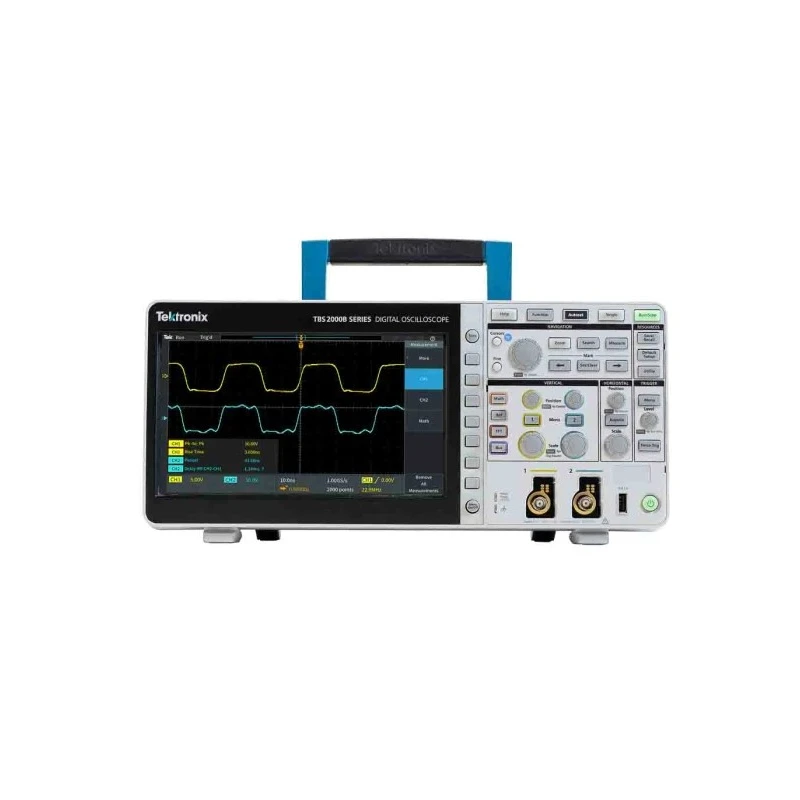

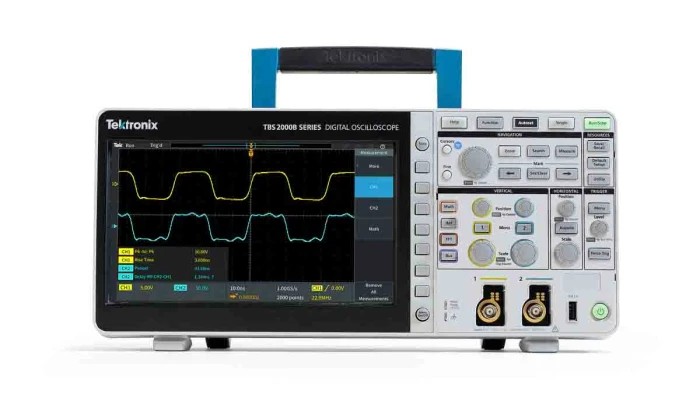

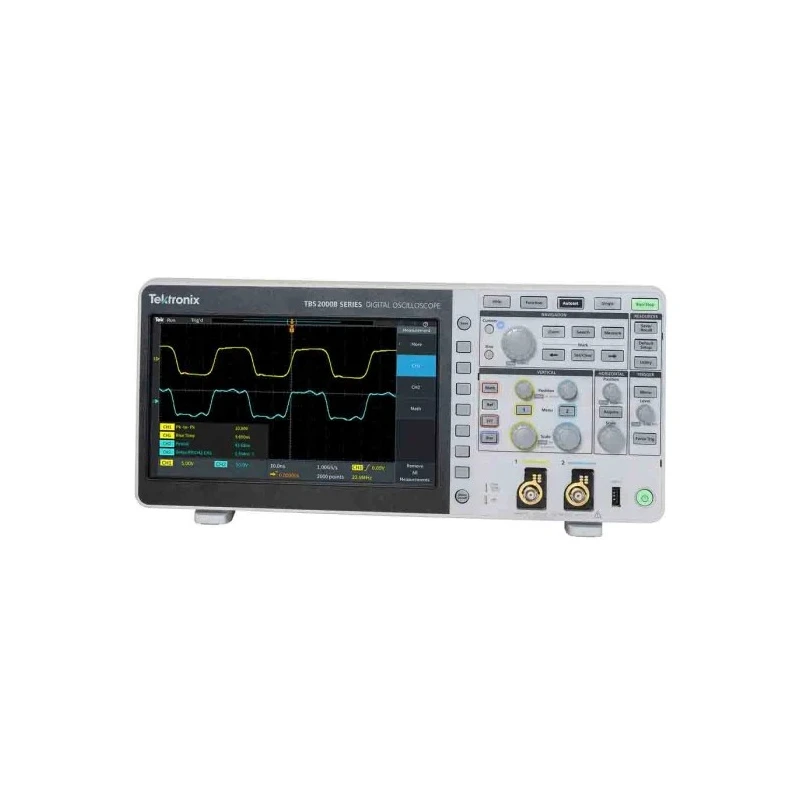

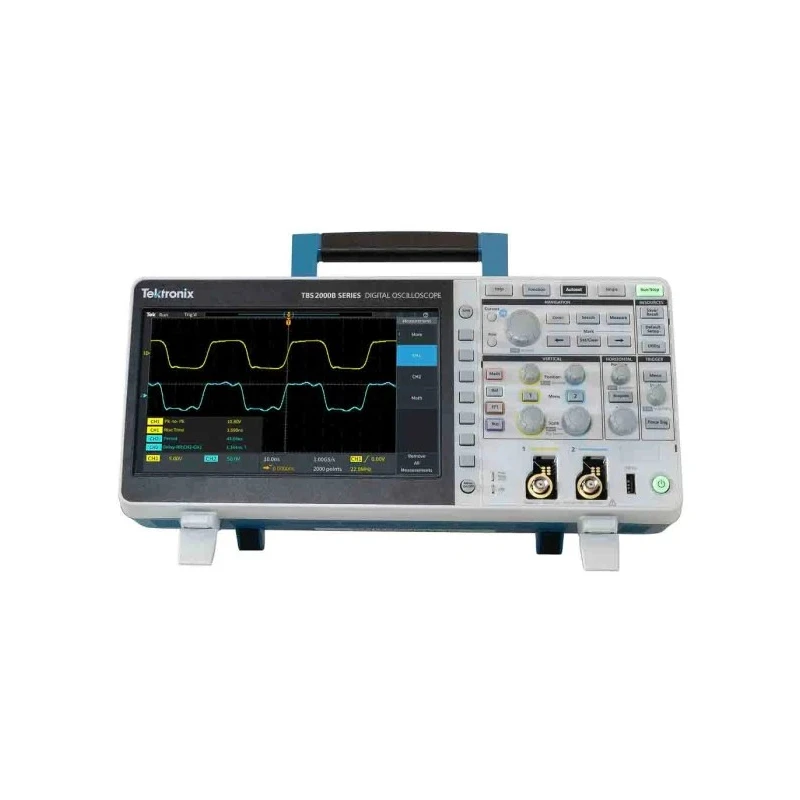

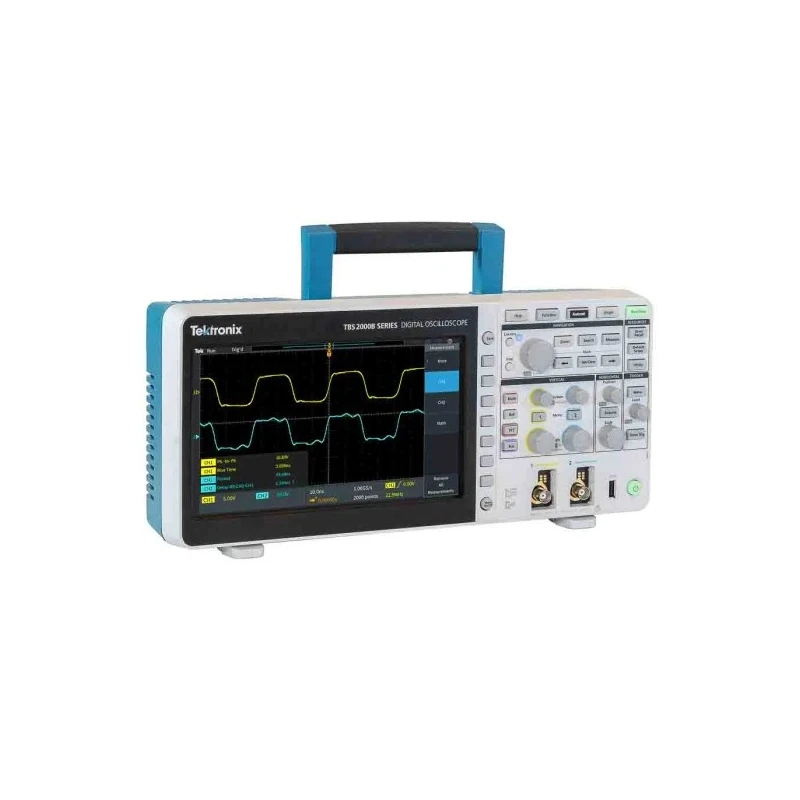

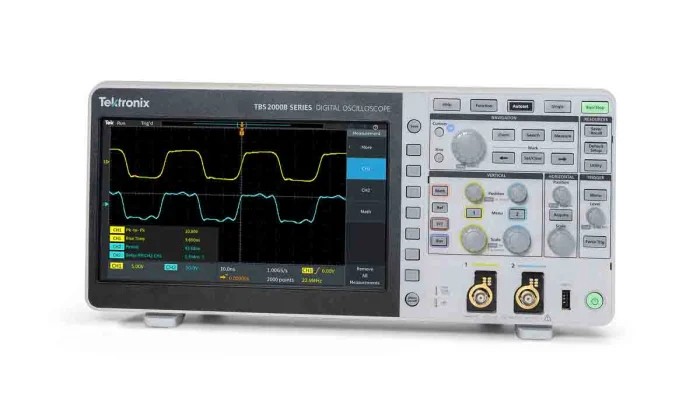

Tektronix Digital Storage Bench Oscilloscope 2 Channels 100 MHz Bandwidth 9 inch TFT LCD TBS2000B

Tektronix TBS2102B is a digital storage bench oscilloscope offering 100 MHz bandwidth and 2 analogue input channels. It features a 9-inch TFT LCD with 15 horizontal divisions enabling extended time capture and detailed signal analysis. The oscilloscope is optimized for signal viewing and measurement with a clear display, low noise front end, and fast acquisition capabilities.

This oscilloscope includes a 5 Mpts record length that allows capturing long signal windows, ensuring thorough debugging and validation. It supports 32 automatic measurements and FFT analysis for comprehensive waveform evaluation. The TekVPI probe interface expands compatibility with a wide range of probes including active voltage, differential, and current types.

Connectivity options include Wi-Fi support via a USB dongle, two USB host ports, and a 100-BaseT Ethernet port enabling efficient data sharing and collaboration in industrial, laboratory, educational, and embedded design environments. The device’s zoom and pan functions facilitate detailed examination of signal features, aided by on-screen cursors that overlay measurements for improved readability.

With a minimum time base of 1 ns/div and vertical sensitivity from 1 mV/div to 10 mV/div, the Tektronix TBS2102B provides precision necessary for a broad range of testing applications. Its durable build and user-friendly controls make it an ideal choice for professionals requiring reliable bench oscilloscopes.

9-inch WVGA colour display provides clear viewing with 15 horizontal divisions. 5M point record length captures extensive signal details for accurate analysis. 32 automatic measurements and FFT function enable efficient waveform analysis.

Low noise front end design delivers better signal integrity and accurate measurements. TekVPI probe interface supports a wide range of active, differential, and current probes. Wi-Fi support via USB dongle and 100-BaseT Ethernet port facilitate easy data sharing.

Minimum time base of 1 ns/div with vertical sensitivity ranging from 1 mV/div to 10 mV/div. Includes zoom function for detailed signal examination and on-screen cursors for intuitive measurement readouts. Designed ideal for universities, embedded design labs, and advanced electronic troubleshooting.
