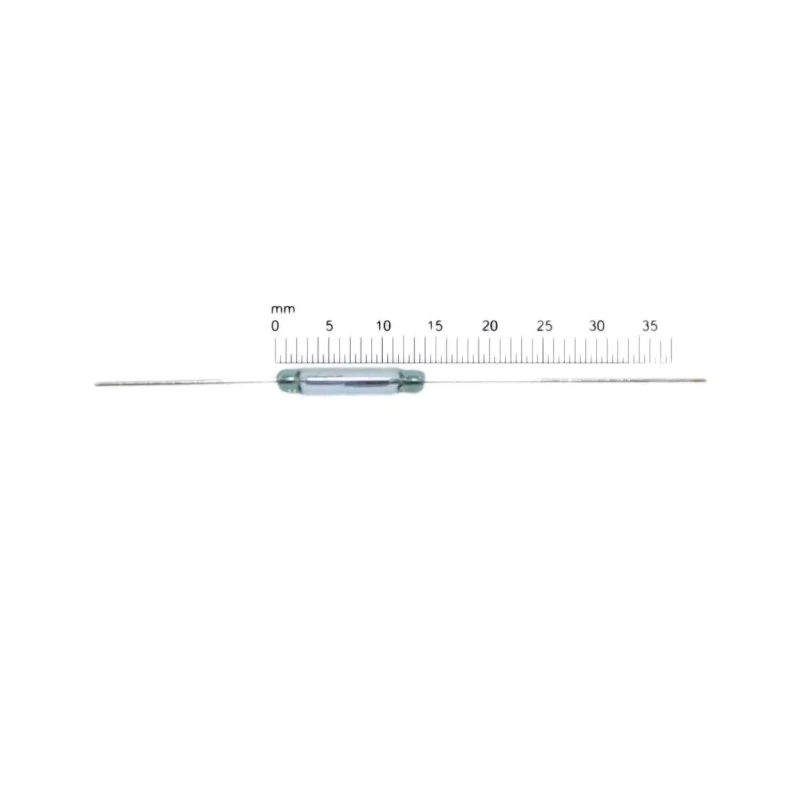

Assemtech SPNO PCB Reed Switch 500 mA 150 V GC2322 (10-15AT)

Assemtech GC2322 (10-15AT) SPNO PCB Reed Switch is a precision electrical switch designed for use in industrial, automation, and electronic applications requiring reliable contact switching under controlled parameters.

This reed switch includes a hermetically sealed gas-filled glass envelope, protecting its two magnetically actuated reeds and ensuring long mechanical life rated at 108 operations. The single pole, single throw normally open (SPNO) contact configuration allows it to switch with strong reliability within its 500 mA maximum switching current and 150 V maximum switching voltage limits.

Featuring rhodium plated contacts, this switch maintains low contact resistance of 150 mΩ and ensures minimal signal degradation. The switch operates effectively in a broad temperature range from -40°C to 125°C, making it suitable for diverse environmental conditions encountered in industrial and laboratory settings.

The device has a compact design with a length of 14.5 mm and width of 2.3 mm, tailored for easy PCB integration. It uses wire terminals for connection and supports an AT value range from 10 to 15 AT, meeting precision magnet sensitivity requirements. Switching characteristics include a maximum release time of 0.05 ms and an operating time including bounce of 0.2 ms, facilitating fast and stable operation.

This reed switch is ideal for use in electronic control systems, instrumentation, automation equipment, and various industrial applications where precision switching and durability are essential.

Features single pole, single throw normally open contact configuration suitable for PCB mounting. Constructed with rhodium plated contacts for enhanced durability and low contact resistance. Operates reliably within a temperature range from -40°C to 125°C.

Hermetically sealed in a gas-filled glass envelope for protection and stability. Fast switching times with maximum release time of 0.05 ms and operating time including bounce of 0.2 ms. Compact size with length 14.5 mm and width 2.3 mm simplifies integration on circuit boards.

Designed to operate with wire terminals and an AT value range between 10 and 15 AT.

Available from EnvMart's Electronics & Electricals category, this Assemtech SPNO PCB Reed Switch ensures high performance in switching applications requiring enhanced reliability and precision.
