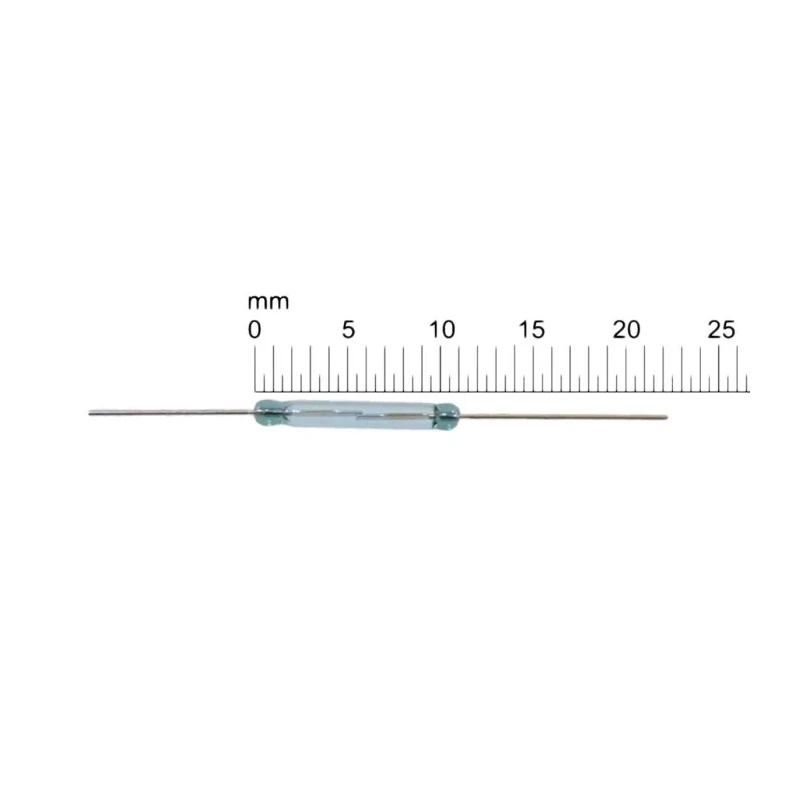

Assemtech SPNO PCB Reed Switch 500 mA 140 V GC2522 (10-20AT)

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPNO PCB Reed Switch 500 mA 140 V GC2522 (10-20AT)

Name: Assemtech SPNO PCB Reed Switch 500 mA 140 V GC2522 (10-20AT)
Brand: Assemtech
SKU: 272489
Price: 239.48 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	India
Brand	Assemtech
Length	11mm
Model	GC2522 (10-20AT)
Width	2.1mm
Mount Type	PCB
Contact Material	Rhodium
Series	GC
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPNO
Minimum Operating Temperature	-40°C
Terminal type	Wire
Contact Resistance	150mΩ
Standards/Approvals	ISO
Maximum Switching Voltage	140V
Maximum Release Time	0.05ms
Operating Time Including Bounce	0.3ms
AT Value Range	10 to 20 AT

Key Features

This reed switch features single pole, single throw, normally open contact configuration.
The switch supports a maximum switching current of 500 mA and voltage of 140 V.
Rhodium-plated contacts ensure low contact resistance of 150 mΩ for reliable performance.
Designed for PCB mounting with wire terminal type for easy integration.
Operates reliably across a temperature range from -40°C to 125°C.
Switch actuation time is fast with a maximum release time of 0.05 ms and operating time including bounce of 0.3 ms.
The AT value sensitivity range is between 10 to 20 AT.

Product Description

Assemtech GC2522 (10-20AT) is a single pole, single normally open (SPNO) PCB reed switch designed to provide reliable switching in electronic and electrical applications. It can be actuated by an electromagnet or a permanent magnet, making it versatile for various automation and control systems.

This reed switch offers a maximum switching current of 500 mA and a maximum switching voltage of 140 V, supporting up to 6 VA switching power. The contact resistance is low at 150 mΩ thanks to rhodium-plated contacts, enhancing durability and electrical performance.

The device is hermetically sealed in a gas-filled glass envelope, ensuring protection against environmental contaminants and prolonging operational life with a mechanical life rating of up to 10^8 operations. It mounts directly to PCBs with wire terminals for integration into electronic circuits.

Operating temperature ranges from -40°C to 125°C, making it suitable for industrial, commercial, and laboratory environments. The switch response is rapid with a maximum release time of 0.05 ms.

Compact dimensions (2.1 mm width and 11 mm length) enable installation in tight spaces on electronic assemblies. This product is ISO standard compliant and belongs to the GC series.

This reed switch features single pole, single throw, normally open contact configuration. The switch supports a maximum switching current of 500 mA and voltage of 140 V. Rhodium-plated contacts ensure low contact resistance of 150 mΩ for reliable performance.

Designed for PCB mounting with wire terminal type for easy integration. Operates reliably across a temperature range from -40°C to 125°C. Switch actuation time is fast with a maximum release time of 0.05 ms and operating time including bounce of 0.3 ms.

The AT value sensitivity range is between 10 to 20 AT. Dimensions are compact with 2.1 mm width and 11 mm length fitting tight PCB layouts.

Typical applications include industrial automation, electronic switching circuits, sensors, and control systems where precise magnetic switching is required. This Reed Switch is engineered for durability and performance consistency in challenging operating environments.

Explore more high-quality electrical switches and components on EnvMart to meet your industrial automation and electronic design needs.
