Schneider Electric Selector Switch SPDT 2 Positions 30 mm Cutout Diameter XB5FD25

Name: Schneider Electric Selector Switch SPDT 2 Positions 30 mm Cutout Diameter XB5FD25
Brand: Schneider Electric
SKU: 304184
Price: 3596.03 INR
Availability: InStock



Category Selector Switch Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Model	XB5FD25
IP Rating	IP67
Series	XB5
Contact Configuration	SPDT
Number of Positions	2
Terminal type	Screw
Standards/Approvals	UL, CSA
Switch Operation	Stay Put
Better World Claim	Repairable by the End User
Angle of Throw	90 °
Cutout Diameter	30mm
Various types of connection are available	screw clamp, connector, Faston connector, spring terminal, or printed circuit board
General purpose offer covering all segments and applications	Industry
Ideal in extreme environments	food and beverage, marine, etc. Building and infrastructure

Key Features

This selector switch features a 90 degrees angle of throw with stay put operation.
It has a black round head plastic bezel and fixing collar.
The contact configuration is 1NO and 1NC slow break type with screw clamp terminals.
It is rated IP67 for protection against dust and water ingress.
Suitable for industrial and commercial panels requiring ergonomic flush mount design.
The selector switch is certified with UL and CSA approvals.
It has antimicrobial characteristics ensuring hygiene in use.
Operating temperature ranges from -40°C to 70°C.

Product Description

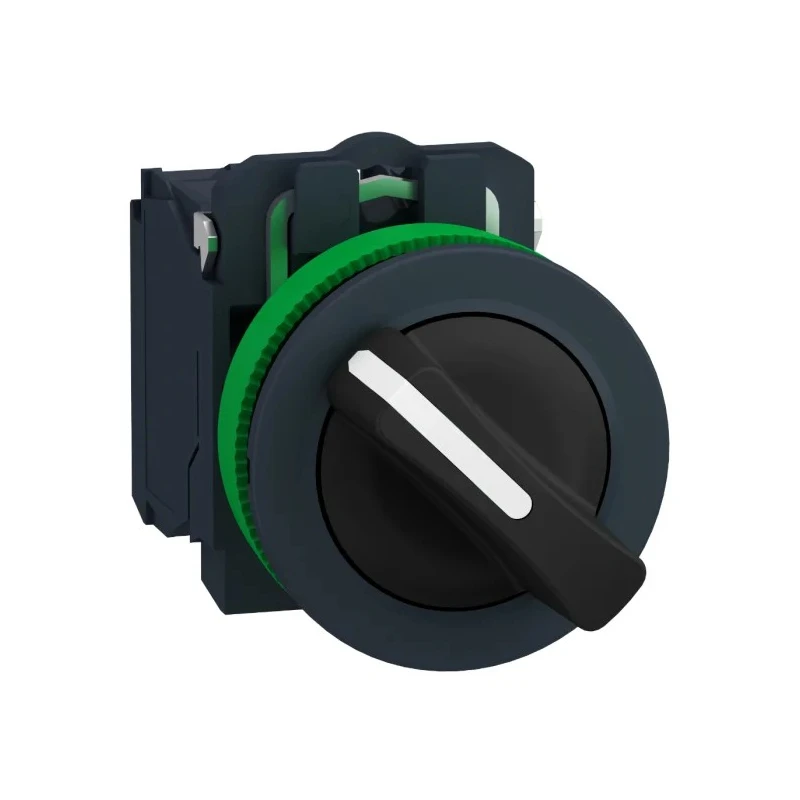

Schneider Electric XB5FD25 Selector Switch is a flush mounted SPDT selector switch designed for industrial and commercial control panels. It features a 30 mm mounting cutout diameter and offers 2 positions with a 90° angle of throw and stay put operation for reliable switching control.

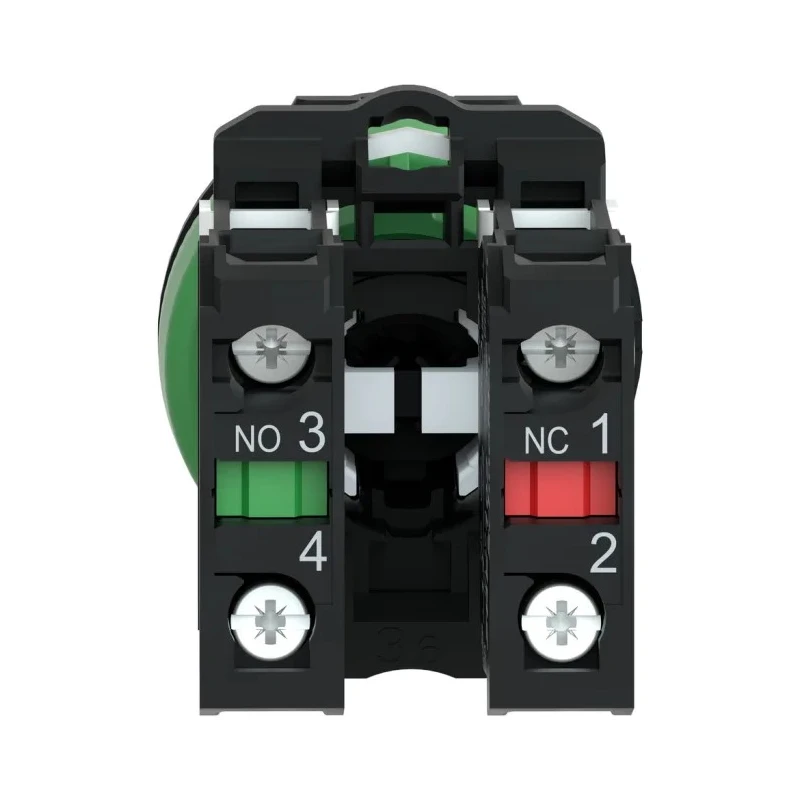

The switch head is round with a black plastic bezel and fixing collar with antimicrobial properties, making it suitable for hygienic environments. The contact configuration includes one normally open (1NO) and one normally closed (1NC) slow break contact, connected via screw clamp terminals for secure wiring.

This selector switch complies with UL and CSA standards and achieves an IP67 ingress protection rating, ensuring robust sealing against dust, water, and high impact. It operates reliably within a temperature range from -40°C to 70°C and is lightweight at approximately 43 grams.

The ergonomic flush mount design addresses modern aesthetics and usability requirements in automation and electrical control applications. Accessories such as metal blanking plugs, mounting kits, and various contact blocks are available to customize the installation per application requirements.

This product embraces Schneider Electric’s Better World environmental ethos, being repairable by the end user and compliant with RoHS and WEEE directives. It is ideally suited for demanding industrial uses including food and beverage, marine, building, and infrastructure sectors.

This selector switch features a 90 degrees angle of throw with stay put operation. It has a black round head plastic bezel and fixing collar. The contact configuration is 1NO and 1NC slow break type with screw clamp terminals.

It is rated IP67 for protection against dust and water ingress. Suitable for industrial and commercial panels requiring ergonomic flush mount design. The selector switch is certified with UL and CSA approvals. It has antimicrobial characteristics ensuring hygiene in use.

Operating temperature ranges from -40°C to 70°C. The product weighs approximately 43 grams with compact dimensions. Various accessories are available for customized panel installations. Explore more Selector Switches and Schneider Electric products to find the ideal solution for your industrial and automation needs at EnvMart.
