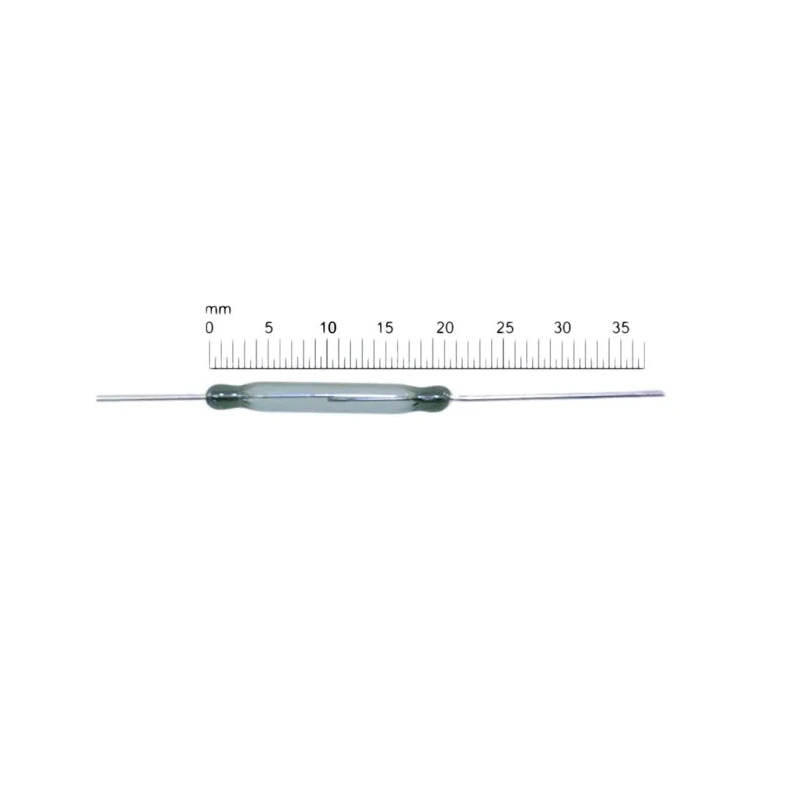

Assemtech SPNO PCB Reed Switch 1 A 250 V ac RI-46A

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPNO PCB Reed Switch 1 A 250 V ac RI-46A

Name: Assemtech SPNO PCB Reed Switch 1 A 250 V ac RI-46A
Brand: Assemtech
SKU: 272484
Price: 99.97 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Belgium
Brand	Assemtech
Length	20.5mm
Model	RI-46A
Width	2.7mm
Mount Type	PCB
Contact Material	Ruthenium
Series	RI
Maximum Switching Current	1A
Maximum Operating Temperature	125°C
Contact Configuration	SPNO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	90mΩ
Standards/Approvals	ISO
Maximum Switching Voltage	250V ac
Maximum Release Time	0.03ms
Operating Time Including Bounce	0.5ms
AT Value Range	15 to 28 AT
Assemtech SPST-NO PCB Reed Switch 1 A 200 V ac/dcBrand	Assemtech

Key Features

Single pole, single throw, normally open contact configuration.
Maximum switching current of 1 A and switching voltage of 250 V ac.
Contact material is ruthenium offering low contact resistance of 90 mΩ.
Fast operating time including bounce of 0.5 ms and maximum release time of 0.03 ms.
PCB mount type with wire terminals for easy installation.
Wide operating temperature range from -55°C to 125°C.
AT value range between 15 to 28 AT providing varied sensitivity options.
Hermetically sealed in a gas-filled glass envelope for long mechanical life of 10^8 operations.

Product Description

Assemtech RI-46A SPNO PCB Reed Switch 1 A 250 V ac is a precision hermetically sealed switch used extensively in industrial, electrical, and automation applications requiring reliable and fast switching.

This reed switch features a single pole single throw normally open (SPNO) configuration with contacts plated in ruthenium to ensure low contact resistance and durability. The switch is sealed within a gas-filled glass envelope to protect against environmental contamination, ensuring a long mechanical life of up to 100 million operations.

The switch operates at a maximum current of 1 ampere and can handle switching voltages up to 250 volts AC, making it suitable for a wide range of PCB mounting applications. The terminal type is wire, facilitating straightforward installation onto printed circuit boards.

With a compact size of 20.5 mm length and 2.7 mm width, it is well-suited for space-constrained setups. The AT value range of 15 to 28 AT allows selection according to sensitivity needs. The operating temperature range of -55°C to 125°C ensures reliable performance in diverse environmental conditions.

Designed in compliance with ISO standards, and manufactured in Belgium, the RI-46A model offers high-quality assurance. Its fast release and operating times (0.03 ms max release and 0.5 ms including bounce) make it ideal for applications requiring quick response switching.

Single pole, single throw, normally open contact configuration. Maximum switching current of 1 A and voltage of 250 V AC. Ruthenium plated contacts providing low contact resistance. Fast operation and release times for responsive switching.

Wire terminal type suitable for PCB mounting. Wide temperature operating range from -55°C to 125°C. Compact dimensions suitable for tight spaces. Long mechanical life sealed in glass envelope. ISO standard compliance ensuring reliability.

Manufactured in Belgium.

This Reed Switch is widely used in industrial automation, electrical instrumentation, HVAC controls, manufacturing equipment, and safety systems. Its robust design and precise switching make it a dependable component for critical applications.
