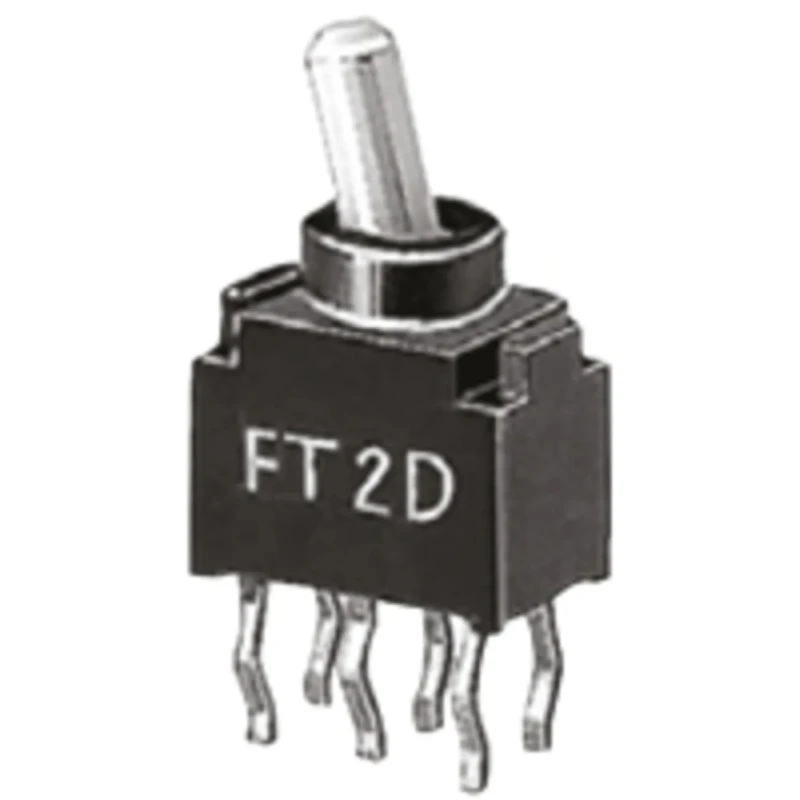

KNITTER-SWITCH Toggle Switch Microminiature PCB Mount On-On DPDT 28V DC FT 2 D
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 10.8mm |
| Length | 10.25mm |
| Model | FT 2 D |
| Width | 7mm |
| Mount Type | PCB |
| Series | FT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 3.8mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 30000Operations |
| Actuator Material | Polyester |
Key Features
- This micro miniature toggle switch occupies just 4.5 mm x 7 mm PCB space for compact PCB layouts.
- It features a double pole double throw (DPDT) contact configuration for controlling two circuits.
- Switch operation is On-On with through hole terminal mounting for reliable connections.
- Handles 400mA contact current and is rated for 28V DC contact voltage.
- The actuator is made of durable polyester measuring 3.8 mm in length for precise toggle action.
- Operating temperature range is between -40°C to 85°C, suitable for varied environments.
- Mechanical life supports 30,000 operations ensuring long-term reliable switching performance.
- ESD resistance exceeds 8 kV between lever and terminals enhancing device protection.
Product Description
KNITTER-SWITCH FT 2 D is a microminiature toggle switch specifically designed for PCB mounting in electronic and electrical applications. This DPDT (double pole double throw) switch offers On-On operation with robust through hole terminal construction for secure and durable solder connections. It operates at 28V DC carrying up to 400mA current with polyester actuator material of 3.8 mm length enabling precise toggle control.
Its compact form factor takes only 4.5 mm by 7 mm PCB space, making it ideal for compact designs such as medical devices, test and measurement equipment, and other instrumentation requiring miniaturized components. The switch functions reliably across a temperature range from -40°C to 85°C, meeting performance needs in various industrial and laboratory conditions.
The switch supports a high mechanical life of 30,000 operations, ensuring longevity in repetitive switching scenarios. With ESD resistance greater than 8 kV between lever and terminals, it safeguards sensitive circuitry from electrostatic discharge damage. KNITTER-SWITCH series comply with RoHS standards, confirming environmentally responsible manufacturing practices.
This toggle switch is designed for industrial electronics, laboratory instrumentation, automation systems, and precision control devices. The FT 2 D model guarantees compactness combined with robust electrical and mechanical performance.
Ideal for circuit board integration requiring microminiature, reliable electrical switches. Package contains one KNITTER-SWITCH FT 2 D toggle switch with through hole terminals and polyester actuator. Explore more industrial-grade Toggle Switches in EnvMart's Electronics & Electricals category to find compatible components for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double pole double throw (DPDT) contact configuration, allowing it to control two circuits simultaneously.
It is rated for a contact voltage of 28V DC and can handle a contact current of up to 400mA.
The dimensions of this switch are 10.25 mm in length, 7 mm in width, and 10.8 mm in height.
The operating temperature range is between -40°C to 85°C, making it suitable for various environments.
The actuator measures 3.8 mm in length, providing precise toggle action.
The mechanical life supports up to 30,000 operations, ensuring reliable performance over time.
This model uses through hole terminal mounting for secure and durable solder connections.
Yes, it complies with RoHS standards, indicating environmentally responsible manufacturing practices.
The actuator is made of durable polyester, which contributes to its functionality and longevity.
It is designed for use in industrial electronics, laboratory instrumentation, automation systems, and precision control devices.
The switch has an ESD resistance exceeding 8 kV between the lever and terminals, protecting sensitive circuitry from electrostatic discharge damage.
The package contains one KNITTER-SWITCH FT 2 D toggle switch with through hole terminals and polyester actuator.
