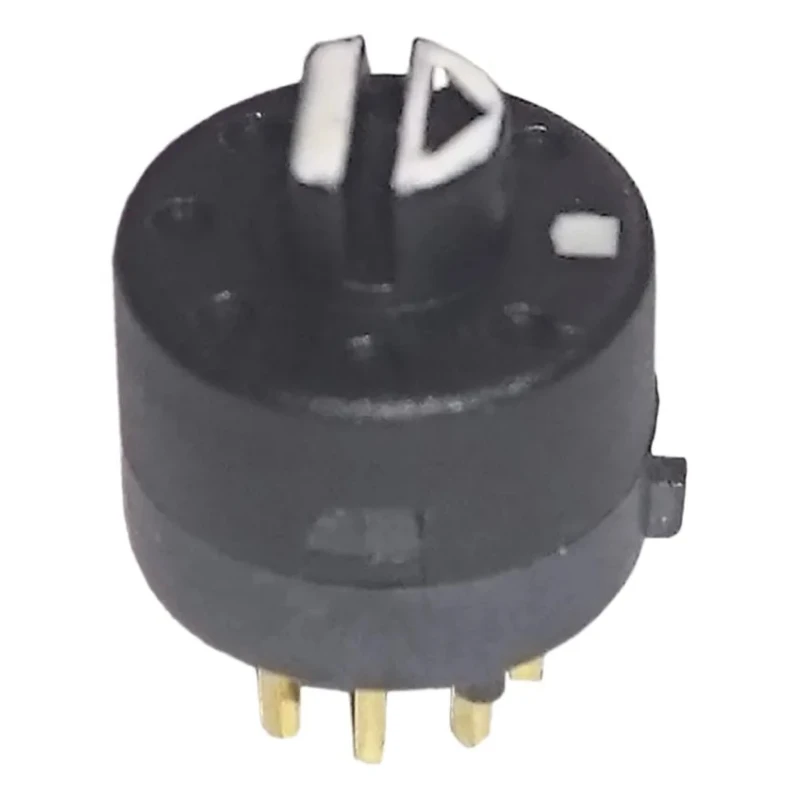

Lorlin MT SP7T Rotary Switch 500mA PCB Terminal

The Lorlin MT SP7T rotary switch model MTS-11-70 is a high-quality compact rotary switch designed for reliable operation in electrical and automation systems. This switch offers a moulded 9.2mm diameter TO-5 package providing robust and space-efficient installation on printed circuit boards (PCBs).

The switch features a contact configuration of SP7T with a maximum switching current of 500mA, suitable for isolating applications and control circuits. It operates with a 270° angle of throw and provides positive detent action indexed at 45°, ensuring precise position confirmation.

Constructed with fibreglass reinforced polybutylene terephthalate housing material, the switch ensures mechanical stability and resistance to environmental factors. The device withstands operating temperatures ranging from -30°C up to 65°C, adapting to various industrial and commercial environments.

This rotary switch supports 8 poles and has a mechanical life rating exceeding 5000 cycles, assuring durability for repeated switching operations. Its black actuator color and moulded rotary design offer ease of use and integration into control panels and electronic devices.

The Lorlin SP7T is RoHS compliant, confirming adherence to global environmental and safety regulations. The switch accommodates a maximum AC voltage of 500V and DC voltage of 24V, making it versatile across power applications.

PCB mounting is facilitated through PCB terminals spaced at 2.54mm between pins and 5.08mm between rows, providing standard footprint compatibility. Its compact dimensions with a diameter and width of 9.2mm and height of 6.47mm facilitate use in compact board layouts.

The rotary switch supports up to 8 poles and operates with a 270° angle of throw. Fibreglass reinforced polybutylene terephthalate housing ensures durability. Operates in temperatures from -30°C to 65°C for versatile applications.

Mechanical life exceeds 5000 cycles, ensuring long-term reliability. Compact 9.2mm diameter TO-5 package allows space-efficient PCB mounting. Black actuator with moulded rotary operation for easy control. RoHS compliant for environmental safety standards.

Supports maximum ratings of 500V AC and 24V DC. Standard pin spacing: 2.54mm between pins, 5.08mm between rows.

This rotary switch is ideal for use in electrical, automation, instrumentation, and manufacturing sectors requiring dependable small-form-factor switching solutions for PCB assemblies. Detailed component specifications and compliance certifications support engineering integration while ensuring safety and performance quality.
