Assemtech SPST PCB Reed Switch 500 mA 200 V RI-03A

Free Delivery in India | Lowest Global Shipping Charges

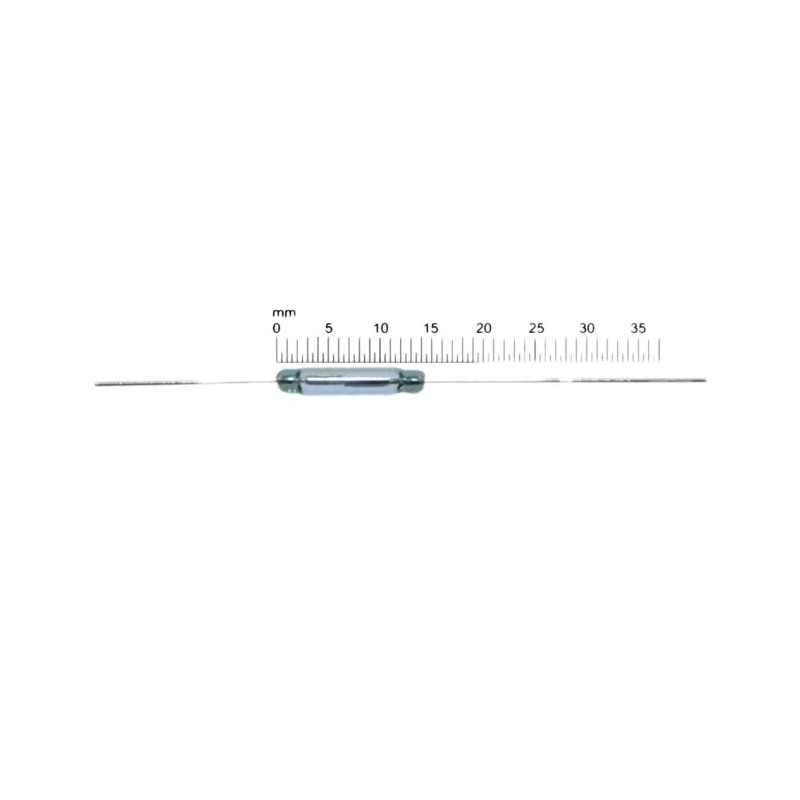

Assemtech SPST PCB Reed Switch 500 mA 200 V RI-03A

Name: Assemtech SPST PCB Reed Switch 500 mA 200 V RI-03A
Brand: Assemtech
SKU: 272481
Price: 75.5 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Belgium
Brand	Assemtech
Length	14.5mm
Model	RI-03A
Width	2.54mm
Mount Type	PCB
Contact Material	Rhodium
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	120mΩ
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	200V
Maximum Release Time	30μs
Operating Time Including Bounce	0.15ms
AT Value Range	18 to 32 AT
Assemtech SPST PCB Reed Switch 500 mA 200 V dcBrand	Assemtech
Reed switch 1015 . 200VBrand	Hermetic Switch

Key Features

The switch features a single pole, single throw (SPST) contact configuration.
It supports a maximum switching current of 500 mA and a voltage rating of 200 V.
The contact resistance is low at approximately 120 milliohms, enhancing performance.
Operating temperature ranges from -55°C to 125°C enabling use in diverse environments.
It has a fast maximum release time of 30 microseconds and an operating time including bounce of 0.15 milliseconds.
The switch is mounted using wire terminals and is suitable for PCB applications.
The reed switch complies with ISO standards and is made in Belgium.

Product Description

Assemtech RI-03A SPST PCB Reed Switch 500 mA 200 V is a professionally manufactured, hermetically sealed reed switch housed in a gas-filled glass envelope. It features rhodium-plated contacts with single pole, single throw, normally open configuration, making it ideal for precise switching on PCBs in electronic and electrical circuits.

The device supports a maximum switching current of 500 mA and a maximum switching voltage of 200 V, providing sufficient capacity for a range of low-power switching applications. Its contact resistance is approximately 120 milliohms, ensuring efficient conductivity and signal integrity.

Designed to withstand harsh operating conditions, the switch has an operational temperature range from -55°C to 125°C. Additionally, the maximum release time is 30 microseconds and the overall operating time including bounce is 0.15 milliseconds, allowing rapid and reliable switching performance.

The reed switch has wire terminal types for secure mounting and is optimized for PCB installation. Its compact physical dimensions of 2.54 mm width and 14.5 mm length make it suitable for space-constrained installations.

This reed switch complies with ISO quality and safety standards and is manufactured in Belgium, reflecting high product reliability. It is suitable for various industrial and electronic uses, including automation, control systems, measurement instruments, and signal processing circuits.

The switch has a SPST contact configuration facilitating single pole-single throw connectivity. Maximum switching current of 500 mA allows moderate current control. Maximum switching power rating of 10 W supports typical circuit loads.

Contact material is rhodium-plated for enhanced durability and low contact resistance. Hermetically sealed glass envelope ensures long life and protection from contaminants. Wide operating temperature range from -55°C to 125°C supports varied environmental conditions.

Compact dimensions of 2.54 mm width and 14.5 mm length enable PCB integration. Manufactured in Belgium adhering to ISO standards guarantees quality.
