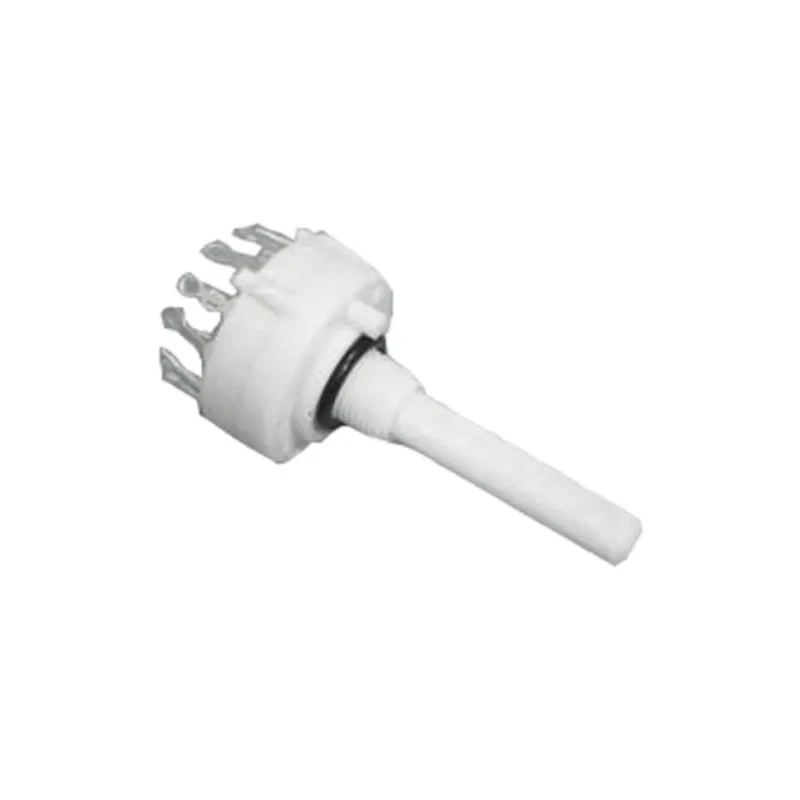

Lorlin CK 12 Position SP12T Rotary Switch, Polyamide Housing, IP65 Sealed, Solder Tag Terminals SP12T

The Lorlin CK 12 Position SP12T Rotary Switch is a robust and reliable single-pole 12-throw rotary switch designed for industrial and commercial applications. Featuring a polyamide housing and dampened indexing with reduced shaft play, it ensures precise and smooth switching operations. The front panel IP65 sealing provides effective protection against dust and water, making this switch ideal for harsh environments.

Equipped with solder tag terminals, this rotary switch mounts securely onto printed circuit boards (PCB) and supports maximum AC and DC voltages of 250V. Its black actuator and compact form factor, including a 27.5 mm diameter and 26.2 mm width, optimize it for PCB integration where space is limited.

Ideal for electrical and automation control systems, the switch has a mechanical life rating of 10,000 cycles, providing dependable performance over time. The 90° angle of throw and the 12 positions of the SP12T contact configuration allow versatile use in signal routing and multi-function switching applications.

This product also meets UL 94 V0 flammability standard, reflecting its high safety and quality standards. Manufactured in the United Kingdom, it is suited for use in industrial, laboratory, and commercial electrical control environments.

12 positions, single-pole 12-throw switch suitable for multi-signal selection. Housing made of durable polyamide for enhanced mechanical strength. Dampened indexing and minimized axial shaft play ensure smooth function. Front panel sealed to IP65 for resistance to dust and water ingress.

Solder tag terminal type for robust PCB mounting and connections. Operates within a temperature range of 30°C to 85°C for reliable performance. Rated for 250V AC and 250V DC maximum voltage applications. Mechanical life of 10,000 cycles for enhanced durability.

Compact dimensions with a 27.5 mm diameter and 26.2 mm width fitting small PCB footprints. Complies with UL 94 V0 flammability standards for safety assurance.

For detailed technical design, use DesignSpark software for 3D mechanical and PCB designs. The Lorlin CK series offers cost-effective and high-quality rotary switches for demanding electrical control applications. Discover additional options and variations in the Rotary Switches category at EnvMart.
