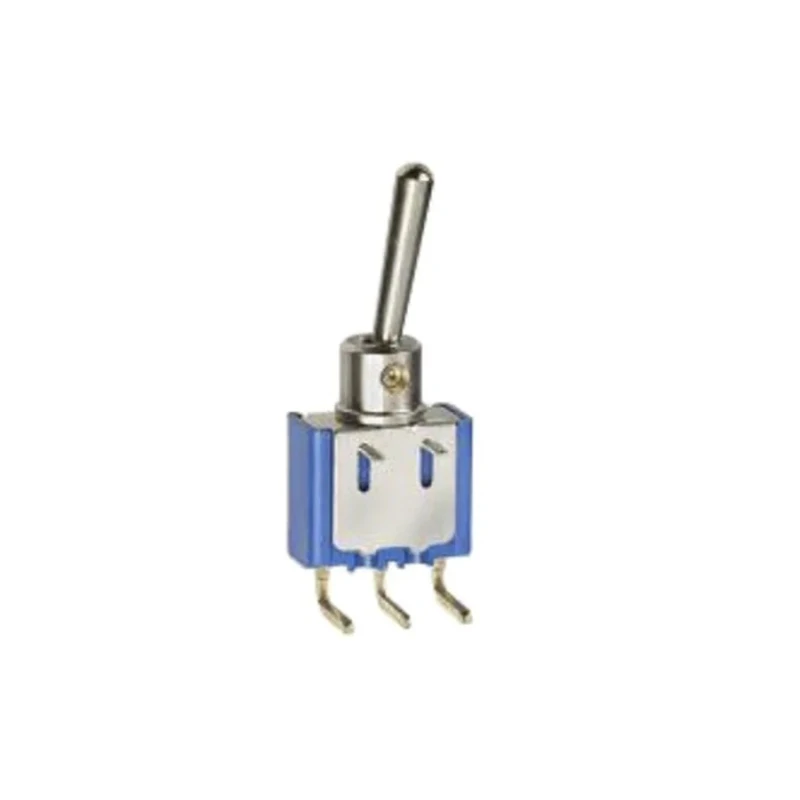

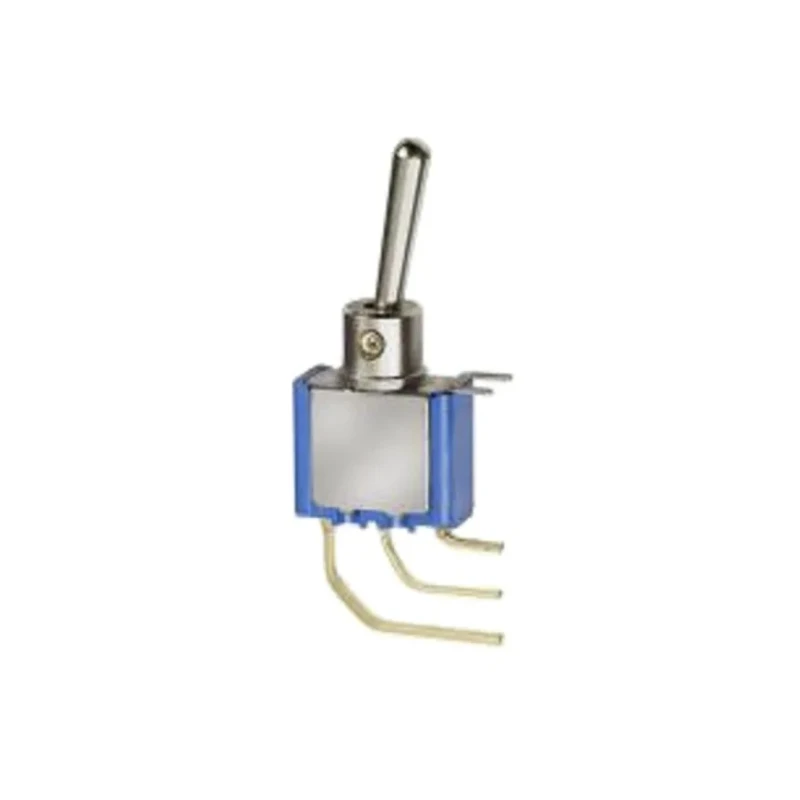

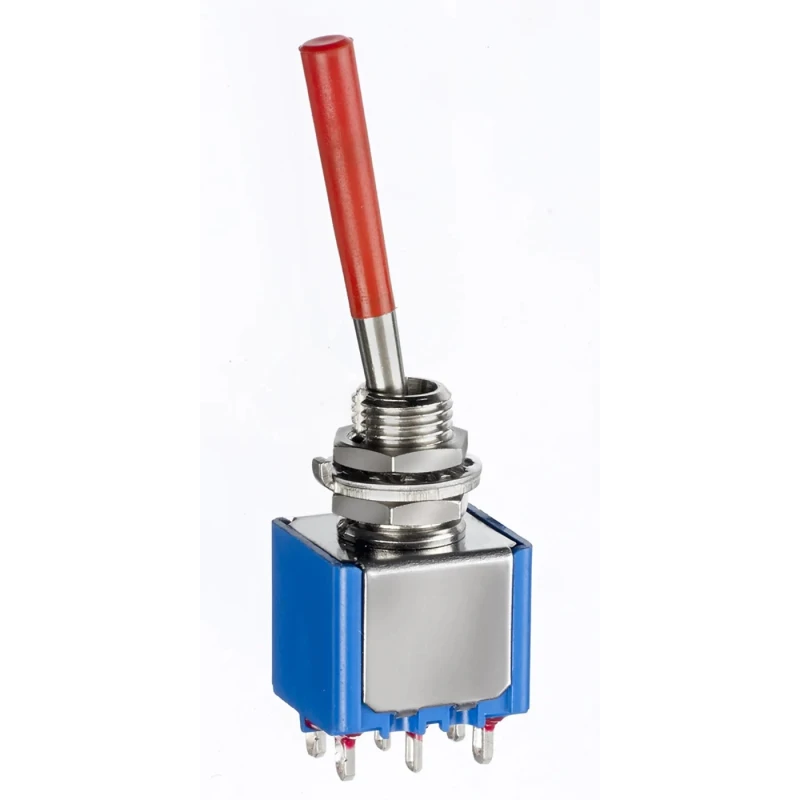

APEM Toggle Switch Panel Mount On-Off-On DPDT Solder Lug Terminal 30 V dc 250 V ac 5647AB-21+U646
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | 5647AB-21+U646 |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 4PDT, DPDT, 3PDT, SPDT |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | CECC 96201-007, VDE, UL, CSA, cULus |
| Switch Operation | On-Off-On |
| Actuator Length | 23.1mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Contact AC Voltage | 250V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Panel mount type toggle switch with solder lug terminals.
- Contact current rating of 4A suitable for various electrical circuits.
- Panel cutout size of 6.5 mm offers compact installation.
- Chrome plated brass actuator ensures durability and corrosion resistance.
- Operating temperature range from -40°C to 85°C for reliability in harsh conditions.
- Switch configuration covers 4PDT, DPDT, 3PDT, and SPDT options.
- Complies with standards CECC 96201-007, VDE, UL, CSA, and cULus for safety assurance.
- Manufactured in France ensuring high quality and craftsmanship.
Product Description
The APEM 5647AB-21+U646 toggle switch is a robust panel mount device designed for On-Off-On switch operation with a double pole double throw (DPDT) contact configuration. It is rated for 30 V dc and 250 V ac, making it ideal for a wide range of industrial and commercial electrical applications including automation, control panels, and instrumentation.
This toggle switch features solder lug terminals for secure and reliable electrical connections. The actuator is made of chrome plated brass, providing excellent mechanical strength and corrosion resistance. It is built to operate reliably under extreme environmental conditions with an operating temperature range of -40°C to 85°C.
The panel cutout size is compact at 6.5 mm, facilitating easy mounting in various electrical panels and enclosures. The switch supports multiple configurations including 4PDT, DPDT, 3PDT, and SPDT, enabling versatile circuit designs.
The device conforms to recognized international safety and quality standards including CECC 96201-007, VDE, UL, CSA, and cULus, ensuring dependable performance in critical applications. Produced in France, this toggle switch embodies high manufacturing quality and durability.
Panel mount toggle switch designed for On-Off-On operation. Supports DPDT contact configuration with 4A contact current. Chrome plated brass actuator offers durability and corrosion resistance. Wide operating temperature range from -40°C to 85°C for harsh environments.
Compact 6.5 mm panel cutout size for flexible installation. Multiple switch configurations including 4PDT, DPDT, 3PDT, and SPDT available. Compliant with CECC, VDE, UL, CSA, and cULus safety standards. Manufactured in France with high quality standards.
This toggle switch is suitable for use in industrial automation, electrical control systems, instrumentation, and other environments where reliable manual switching is required. Its robust construction and compliance with multiple standards assure long-term performance and safety. For additional design support, 3D models and schematics can be downloaded from DesignSpark software resources.
Explore more Toggle Switches and related electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit designs.
It has a maximum operating temperature of 85°C, making it suitable for use in harsh environments.
The required panel cutout size for this toggle switch is 6.5 mm, facilitating easy mounting in various electrical panels.
The contact current rating is 4A, which is suitable for various electrical circuits.
This model uses solder lug terminals for secure and reliable electrical connections.
It supports a contact DC voltage of 30V and an AC voltage of 250V, making it versatile for different applications.
This toggle switch supports multiple configurations including 4PDT, DPDT, 3PDT, and SPDT.
The actuator is made of chrome plated brass, providing durability and corrosion resistance.
It complies with several safety standards, including CECC 96201-007, VDE, UL, CSA, and cULus, ensuring dependable performance.
The minimum operating temperature is -40°C, allowing reliable operation in extreme conditions.
This model is manufactured in France, ensuring high quality and craftsmanship.
It is suitable for industrial automation, electrical control systems, and instrumentation, where reliable manual switching is required.
