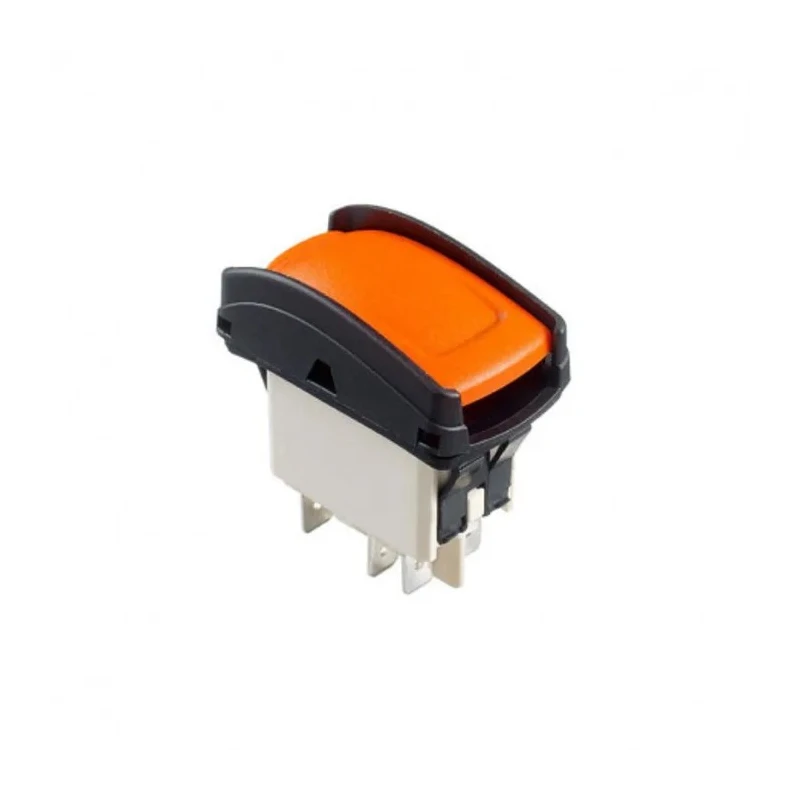

APEM SPDT Latching On-On Rocker Switch Panel Polyamide Housing Panel Cutout 21.08x36.8mm KH136AAZXXG12N

Free Delivery in India | Lowest Global Shipping Charges

APEM SPDT Latching On-On Rocker Switch Panel Polyamide Housing Panel Cutout 21.08x36.8mm KH136AAZXXG12N

Name: APEM SPDT Latching On-On Rocker Switch Panel Polyamide Housing Panel Cutout 21.08x36.8mm KH136AAZXXG12N
Brand: APEM
SKU: 304905
Price: 1995.4 INR
Availability: InStock



Category Rocker Switches Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	KH136AAZXXG12N
IP Rating	IP69K
Mount Type	Panel
Housing Material	Polyamide
Series	KH
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-40°C
Panel Cutout Size	21.08 x 36.8 mm
Terminal type	Quick Connect, Solder
Standards/Approvals	IEC
Switch Operation	Latching
Actuator Colour	Red
Contact DC Voltage	24V dc
Actuator Style	Rectangular
Switch Contact Current	5A
Mechanical Life	150000Cycles
Legend Text Colour	Black

Key Features

The switch operates with a single pole double throw (SPDT) configuration for versatile control.
It utilizes latching on-on switch operation ensuring reliable maintained positions.
Rated for 5A contact current at 24V DC, ensuring suitable electrical performance.
Includes a rectangular red actuator for clear user indication.
Panel mounted with quick connect and solder terminal types for easy installation.
IP69K rating provides high resistance against dust, water, and high-pressure cleaning.
Operating temperature range from -40°C to 85°C for wide environmental adaptability.
Mechanical life expectancy of 150000 cycles guarantees durability.

Product Description

APEM KH136AAZXXG12N SPDT Latching On-On Rocker Switch Panel is engineered with a durable polyamide housing and features a precise panel cutout size of 21.08 x 36.8 mm. This rocker switch is tailored for demanding industrial and harsh environment applications requiring robust equipment protection.

The switch operates with an SPDT contact configuration and latching on-on switch operation, providing a dependable maintained contact position for control circuits. It handles a switch contact current of 5A at 24V DC, making it suitable for various electrical control needs.

Its rectangular red actuator color ensures clear user interface visibility, and the switch mounts onto panels using quick connect and solder terminals for straightforward installation. The IP69K rating certifies that the switch is resistant to dust ingress and can withstand high-pressure and high-temperature water jets, ideal for rigorous operational environments.

Operating reliably within a temperature range of -40°C to 85°C, the switch assures performance stability under extreme conditions. With a mechanical life of 150000 cycles, the KH series rocker switch offers longevity and reduced maintenance needs.

Compliant with IEC standards and manufactured in France, this rocker switch also includes black legend text for clear identification. It is well-suited for industrial automation, electrical control panels, machinery requiring panel-mounted switches, and harsh environment applications such as salt spray and dust-prone conditions.

The switch features protection against accidental actuation with a protection guard. Front panel sealing ensures resilience against environmental factors. Available in illuminated and non-illuminated versions, fulfilling varied application demands.

Laser etched or pad printed symbols provide clarity and customization options. The KH series represents the most robust product range of the K range switches.

This product complements electrical and automation systems that demand reliable and rugged switching solutions. Browse more Rocker Switches and electrical components at EnvMart for your industrial and commercial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch operates with a single pole double throw (SPDT) configuration, allowing for versatile control in various applications.

The maximum operating temperature for this rocker switch is 85°C, making it suitable for high-temperature environments.

This rocker switch has an IP69K rating, providing high resistance against dust ingress and the ability to withstand high-pressure and high-temperature water jets.

The required panel cutout size for this switch is 21.08 x 36.8 mm, ensuring a proper fit for panel mounting.

It is rated for a contact current of 5A at 24V DC, suitable for various electrical control applications.

The switch features quick connect and solder terminal types, facilitating easy installation and connection.

The mechanical life expectancy of this model is 150,000 cycles, ensuring longevity and reduced maintenance needs.

The minimum operating temperature for this rocker switch is -40°C, allowing for reliable performance in extreme cold conditions.

The actuator of this rocker switch is red, providing clear user indication for operation.

This model complies with IEC standards, ensuring it meets international safety and performance requirements.

It is well-suited for industrial automation, electrical control panels, and harsh environment applications such as those exposed to dust and moisture.

The APEM KH136AAZXXG12N is manufactured in France, ensuring adherence to quality standards.
