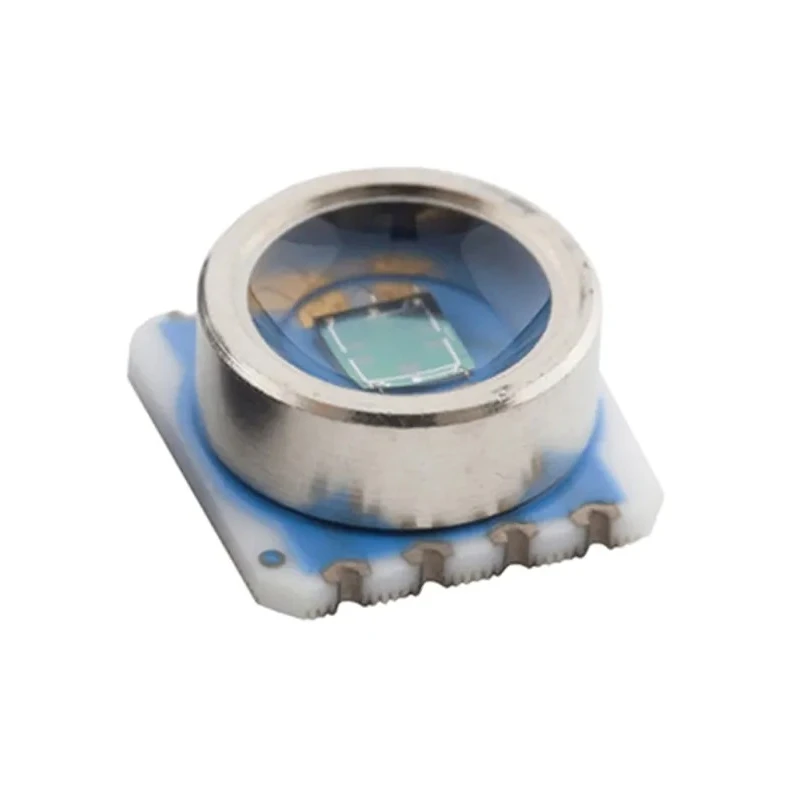

TE Connectivity Miniature SMD Absolute Pressure Sensor 12 bar 20V MS54XX 325412000-00
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Maximum Operating Pressure | 12 bar |
| Height | 6.2mm |
| Length | 6.2mm |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | MS54XX |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 12.5mV/kPa |
| Standards/Approvals | ISO 2281 |
| Maximum Output Voltage | 5V |
| Pin Count | 8 |
| Maximum Supply Voltage | 20V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 0bar |
| Maximum Overload Pressure | 30bar |
Key Features
- Compact surface mount design with 8 pins enhances assembly efficiency.
- Typical sensitivity of 12.5mV/kPa ensures precise pressure measurements.
- Operates in a wide temperature range from -40°C to 125°C for diverse environments.
- Supports maximum overload pressure up to 30 bar for robust application use.
- Outputs voltage directly proportional to applied pressure, simplifying integration.
- Gel protected package provides resistance against humidity and water infiltration.
- Constructed on a ceramic carrier with a silicon micromachined sensor die for durability.
- Suitable for high-resolution altimeters, vario meters, barometers, and automotive systems.
Product Description
TE Connectivity 325412000-00 Miniature SMD Absolute Pressure Sensor from the MS54XX Series is engineered for industrial and commercial applications requiring accurate pressure sensing. Featuring a compact 6.2mm by 6.2mm surface mount package with 8 pins, it offers ease of PCB integration in tight spaces.
This sensor exhibits a maximum operating pressure of 12 bar and can withstand overload pressures up to 30 bar. It supports a maximum supply voltage of 20V and provides a maximum output voltage of 5V, with typical sensitivity rated at 12.5mV/kPa. Its operating temperature spans from -40°C up to 125°C, enabling use in harsh and varied conditions.
Manufactured with a ceramic carrier and incorporating a silicon micromachined piezoresistive sensor die, the device is robust against environmental factors and delivers high linearity and low drift for consistent accuracy. The gel-protected SMD package ensures resistance to humidity and water, enhancing longevity in demanding environments.
Applications include high-resolution altimeters, vario meters, barometers, brake systems, engine management modules, waterproof watches, and diving computers, making it suitable for industrial automation, automotive, HVAC, laboratory instrumentation, and manufacturing instrumentation.
Compact surface mount design with 8 pins enhances assembly efficiency. Typical sensitivity of 12.5mV/kPa ensures precise pressure measurements. Operates in a wide temperature range from -40°C to 125°C for diverse environments.
Supports maximum overload pressure up to 30 bar for robust application use. Outputs voltage directly proportional to applied pressure, simplifying integration. Gel protected package provides resistance against humidity and water infiltration.
Constructed on a ceramic carrier with a silicon micromachined sensor die for durability. Suitable for high-resolution altimeters, vario meters, barometers, and automotive systems. Complies with ISO 2281 standards assuring quality and reliability.
Explore the extensive range of pressure sensors and measurement solutions available on EnvMart for enhanced application performance and durability.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 12 bar, with a maximum overload pressure of 30 bar.
The typical sensitivity is rated at 12.5mV/kPa, ensuring precise pressure measurements.
This model has dimensions of 6.2mm in length and 6.2mm in height, making it suitable for compact applications.
The sensor operates within a temperature range of -40°C to 125°C, allowing for use in diverse environments.
The maximum supply voltage for this model is 20V, with a maximum output voltage of 5V.
This is an absolute pressure sensor, designed for accurate pressure sensing in various applications.
This sensor uses a surface mount design, which enhances assembly efficiency on PCBs.
It complies with ISO 2281 standards, assuring quality and reliability in its performance.
This sensor is suitable for applications such as high-resolution altimeters, barometers, and automotive systems.
The sensor features a gel-protected package that provides resistance against humidity and water infiltration.
This model has a pin count of 8, facilitating easy integration into electronic circuits.
The sensor is constructed on a ceramic carrier and incorporates a silicon micromachined sensor die for durability.
