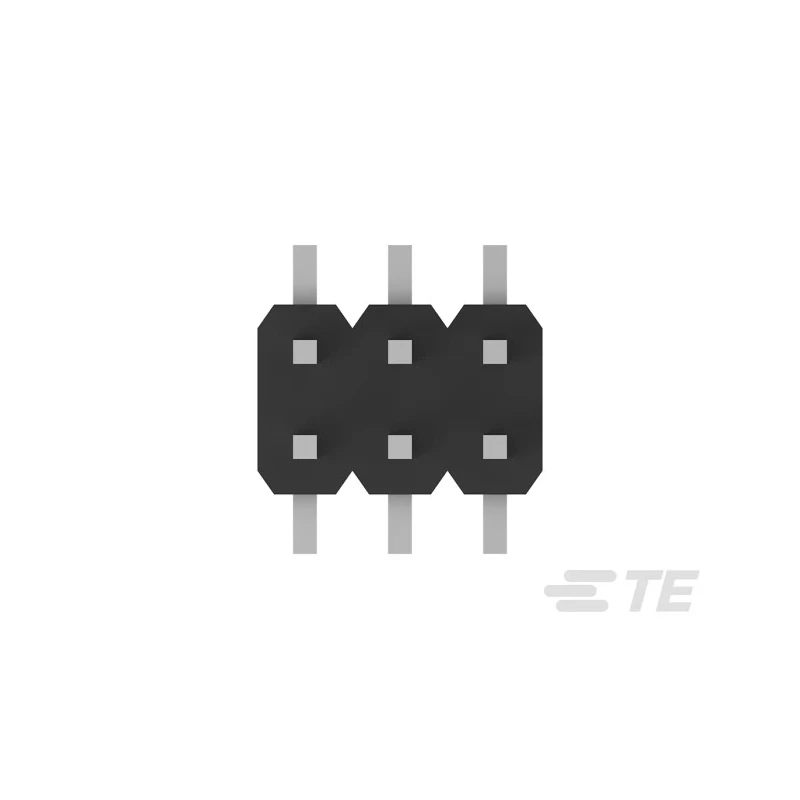

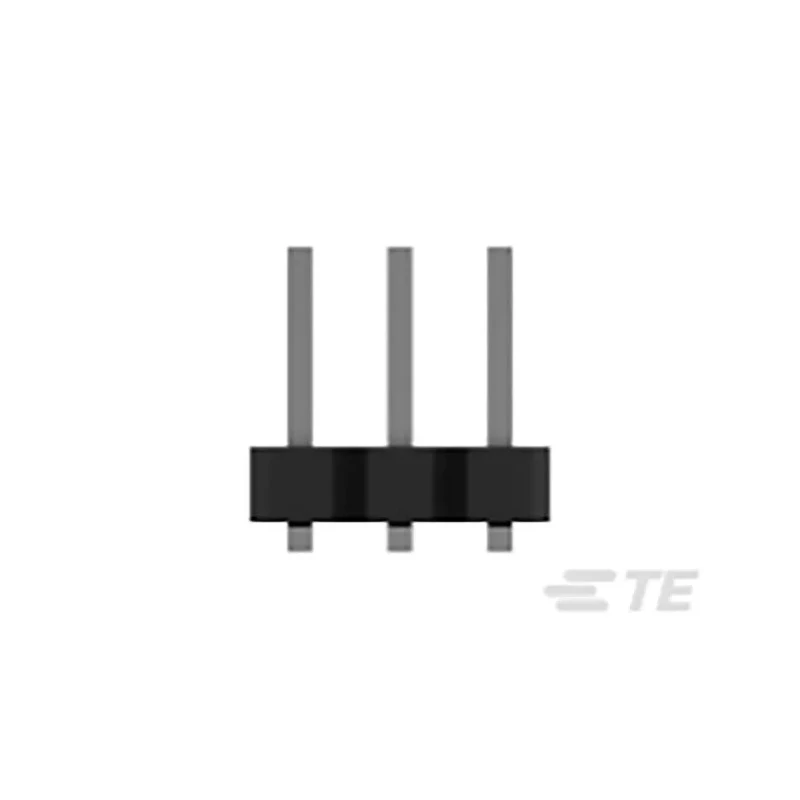

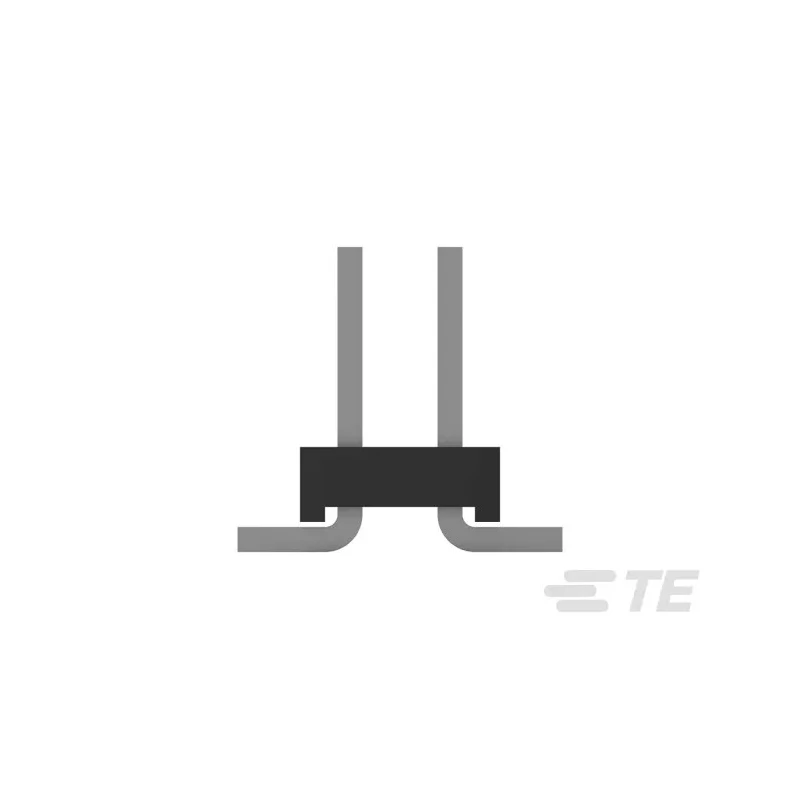

TE Connectivity AMPMODU Series Straight Surface Pin Header, 6 Contacts, 2 mm Pitch, 2 Row, Unshrouded 2842142-3

TE Connectivity 2842142-3 AMPMODU Series Straight Surface Pin Header is a high-quality PCB connector designed for industrial and electronic applications requiring reliable board-to-board interconnections. It features 6 male brass contacts with nickel plating arranged in two rows at a 2 mm pitch centerline, ensuring compact and efficient spacing.

The polyamide housing provides excellent mechanical and electrical insulation, supporting operations at temperatures ranging from -40°C to 105°C. This unshrouded, straight orientation pin header is surface-mounted, facilitating automated assembly and compatibility with various PCB thicknesses between 1.6 mm to 2.4 mm.

Designed for currents up to 2A and operating voltage up to 125V, this connector supports dual beam receptacle contact systems to guarantee stable two-point electrical engagement, enhancing connection reliability in demanding environments.

The product is halogen free and low halogen, complying with environmental standards for safer use in manufacturing and end products. It offers a space-saving design occupying 38% less PCB area than standard 2.54 mm pitch headers, providing extended functionality in compact electronic configurations.

Available in multiple packaging formats such as tube, tape, and reel with up to 25 positions per row, this connector caters to automated solder tail processing and surface-mount assembly techniques commonly used in PLCs, servo drives, industrial controls, instrumentation, test equipment, and building automation.

Constructed with brass contacts and nickel plating for durability. Housing made from polyamide for excellent insulation. Operates reliably from -40°C up to 105°C. Rated for 2A current and 125V operating voltage. Features a straight orientation and surface mount type for flexible PCB integration.

Unshrouded pin header design facilitates various stacking configurations. Compatible with dual beam receptacle contacts for secure connections. Available in tube, tape, and reel packaging for automated manufacturing processes.

Halogen-free and low halogen environment compliant. Ideal for industrial and automation control applications.

TE Connectivity continues to be a trusted provider of electronic component solutions, offering products engineered for robustness and high performance in industrial, manufacturing, and automation sectors.

Explore EnvMart’s range of PCB Connectors and related products for comprehensive solutions in your electronic assemblies and installations.
