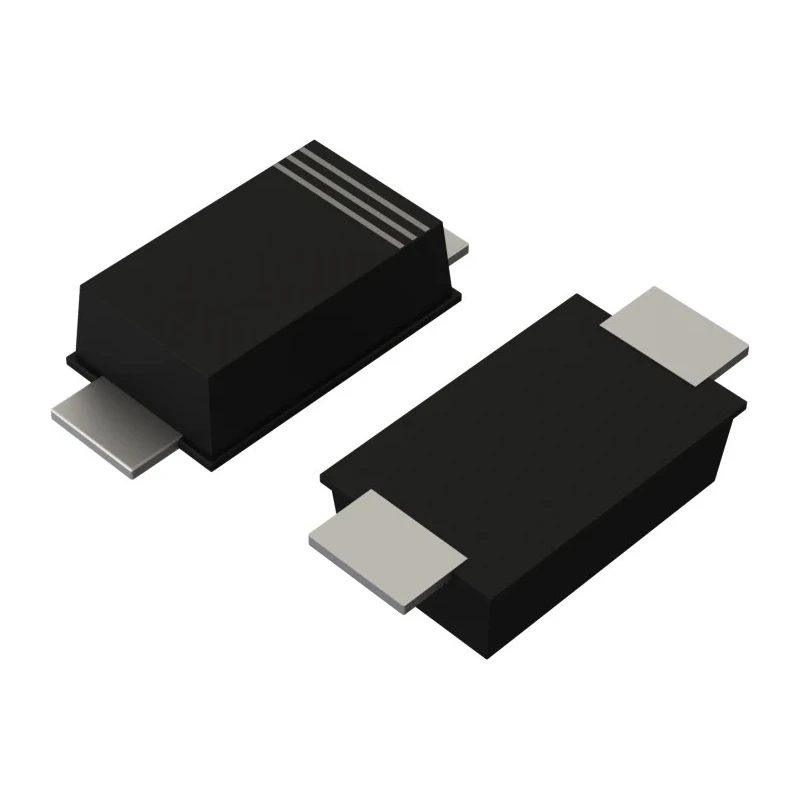

ROHM Single General Purpose Diode 500 mA 200 V Surface Mount SOD-123FL RFC02MM2STR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 3.5mm |
| Model | RFC02MM2STR |
| Width | 1.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Sub Type | General Purpose Diode |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 10A |
| Maximum Forward Voltage Vf | 0.75V |
| Peak Reverse Recovery Time trr | 35ns |
| Maximum Forward Current If | 500mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 200V |
Key Features
- Surface mount SOD-123FL package for compact and reliable installation.
- Maximum forward current of 500 mA suitable for general rectification.
- Peak reverse recovery time of 35 nanoseconds ensures fast switching performance.
- Maximum forward voltage of 0.75 V reduces power loss during operation.
- Capable of tolerating peak non-repetitive forward surge current up to 10 A for transient conditions.
- Operates reliably within a wide temperature range up to 150°C maximum.
- Two-pin configuration facilitating easy PCB layout and connections.
Product Description
ROHM RFC02MM2STR is a high-performance single general purpose diode designed for surface mount applications. It is housed in a compact SOD-123FL package which suits modern electronics requiring space saving and reliability.
This diode supports a maximum forward current of 500 mA and a peak reverse repetitive voltage of 200 V, making it appropriate for various general rectification tasks in electronic circuits, including power supplies and signal conditioning.
With a peak reverse recovery time (trr) of 35 ns, the diode offers fast switching capabilities, enhancing efficiency in high-frequency circuits. The low maximum forward voltage of 0.75 V minimizes conduction loss, improving overall energy efficiency.
The RFC02MM2STR can safely conduct a peak non-repetitive forward surge current of up to 10 A, offering protection during transient electrical events. Its operational temperature range up to 150°C ensures performance stability under industrial and consumer operating conditions.
Dimensionally, the diode measures 3.5 mm in length, 1.6 mm in width, and 0.8 mm in height, facilitating integration into densely packed PCBs. The two-terminal pin configuration allows straightforward circuit design and assembly.
Surface mount SOD-123FL package for compact footprint and durability. 500 mA maximum forward current supports general purpose rectification. 200 V peak reverse repetitive voltage for robust voltage handling. 35 ns peak reverse recovery time for fast switching efficiency.
Low 0.75 V maximum forward voltage minimizes power dissipation. 10 A peak non-repetitive forward surge current for surge protection. Operates reliably up to 150°C maximum temperature. Compact size suitable for modern electronic assemblies.
This diode is applicable in diverse fields including industrial electronics, consumer electronics, telecommunications, power supplies, and switching applications. Its reliable operation under varied environmental conditions ensures suitability for both commercial and industrial circuits.
Explore the comprehensive range of ROHM semiconductor components on EnvMart for your electronics design and manufacturing needs.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current of this diode is 500 mA, making it suitable for general rectification tasks.
This model has a peak reverse repetitive voltage rating of 200 V, allowing it to handle robust voltage conditions.
The peak reverse recovery time of this diode is 35 nanoseconds, which ensures fast switching performance in high-frequency applications.
The maximum forward voltage is 0.75 V, which helps to minimize power loss during operation.
It can tolerate a peak non-repetitive forward surge current of up to 10 A, providing protection during transient conditions.
The diode operates reliably within a temperature range up to 150°C, ensuring stability under various conditions.
This diode measures 3.5 mm in length, 1.6 mm in width, and 0.8 mm in height, making it suitable for compact PCB layouts.
It is housed in a surface mount SOD-123FL package, designed for compact and reliable installation.
This model has a two-pin configuration, facilitating easy PCB layout and connections.
The RFC02MM2STR is applicable in various fields including industrial electronics, consumer electronics, telecommunications, and power supplies.
The sub-type of this diode is a general purpose diode, suitable for a variety of electronic applications.
The country of origin for this diode is India.
