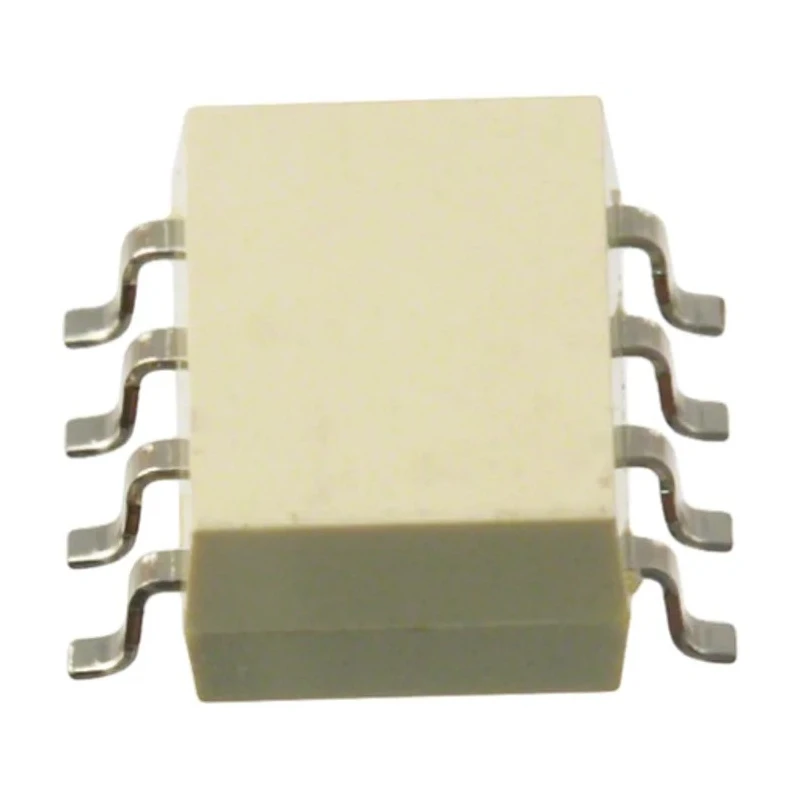

Toshiba 2-Channel Surface Mount Optocoupler 8-Pin SO-8 TLP2168(F)
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Toshiba |
| Model | TLP2168(F) |
| Mount Type | Surface |
| Series | TLP2168 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 25mA |
| Number Of Channels | 2 |
| Standards/Approvals | VDE:EN60747-5-5 (Option V4), cUL:CSA Component Acceptance Service No.5A, UL1577 |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Typical Rise Time | 30ns |
| VDE | EN60747-5-5 (Option V4), cUL:CSA Component Acceptance Service No.5A, UL1577 |
| Standards/ApprovalsVDE | EN60747-5-5 (Option V4), cUL:CSA Component Acceptance Service No.5A, UL1577 |
Key Features
- Provides 2 independent optocoupler channels for signal isolation.
- Features a low maximum forward voltage of 1.8V for input LEDs.
- Typical rise and fall times are 30ns ensuring fast response.
- Designed for a maximum input current of 25mA for input LEDs.
- Operating temperature ranges from -40°C to 125°C for reliable performance.
- Supports inverter logic output using open collector configuration.
- Complies with VDE EN60747-5-5, cUL CSA Component Acceptance Service No.5A, and UL1577 standards.
- Utilizes SO-8 package type optimized for surface mounting applications.
Product Description
Toshiba TLP2168(F) 2-Channel Surface Mount Optocoupler in an 8-Pin SO-8 package is designed for electronic applications requiring reliable isolation and signal transmission between different parts of a system. This optocoupler features inverter logic output with open collector configuration and provides two independent channels for versatile usage.
The device operates efficiently across a wide temperature range from -40°C to 125°C, making it suitable for industrial, automotive, and consumer electronics applications. With a maximum forward voltage of 1.8V and a maximum input current of 25mA, it can support diverse electronic designs requiring isolation at signal input stages.
Toshiba's optocoupler also complies with recognized safety and performance standards including the VDE EN60747-5-5 (Option V4), cUL CSA Component Acceptance Service No.5A, and UL1577 certifications, ensuring durability and safety in demanding environments.
The compact SO-8 surface mount package improves PCB space utilization and allows for efficient manufacturing processes in high-density boards. Two independent optocoupler channels allow flexible circuit design. Low forward voltage reduces power consumption.
Fast switching times (30ns rise and fall) support high-speed circuits. Open collector output allows interfacing with various logic levels. Wide operating temperature range for diverse environments. Certified to multiple international safety standards for quality assurance.
Compact surface mount SO-8 package for space-saving layouts.
Widely used in industrial control, instrumentation, consumer electronics, and power supply circuits, the Toshiba TLP2168(F) optocoupler offers a reliable solution for electrical isolation and noise reduction. Its performance and safety certifications give confidence in applications demanding robust isolation performance.
Browse more Toshiba Optocouplers and electronic components at EnvMart for comprehensive choices in signal isolation and interface devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C.
This optocoupler features 2 independent channels for signal isolation.
The typical rise time for this model is 30ns, ensuring fast response times.
The maximum input current for the input LEDs is 25mA.
It utilizes an 8-Pin SO-8 package type optimized for surface mounting applications.
This model complies with VDE EN60747-5-5, cUL CSA Component Acceptance Service No.5A, and UL1577 standards.
The minimum operating temperature for this optocoupler is -40°C.
It supports inverter logic output using an open collector configuration.
The maximum forward voltage for the input LEDs is 1.8V.
This optocoupler is widely used in industrial control, instrumentation, consumer electronics, and power supply circuits.
Its compact SO-8 surface mount package design allows for efficient manufacturing processes in high-density boards.
The typical rise and fall times for this optocoupler are both 30ns, supporting high-speed circuit applications.
