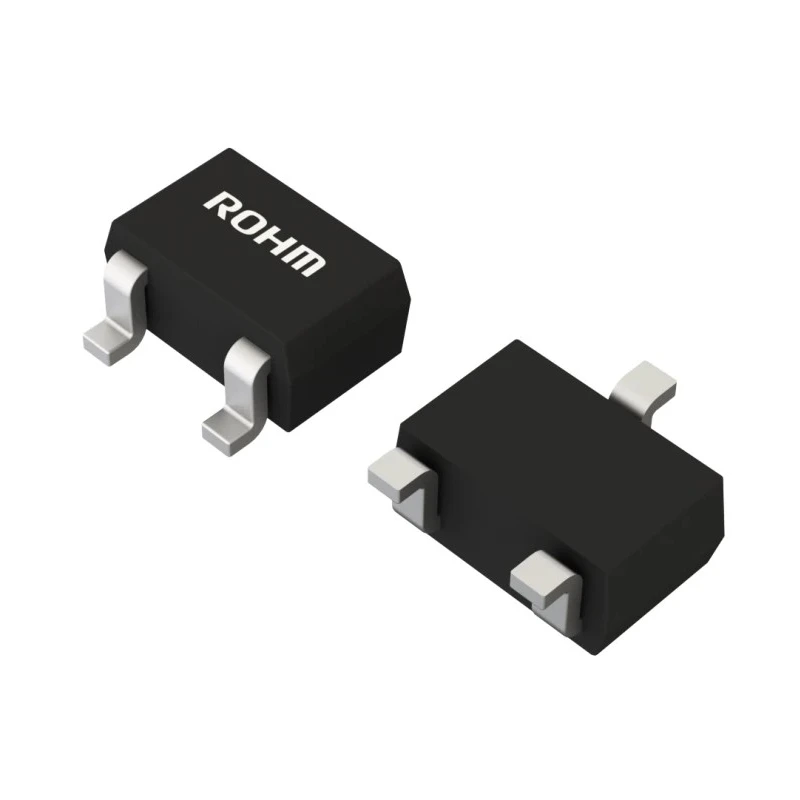

ROHM 40 V 0.08 A Schottky Diode 3-Pin SOT-323 RB508FM-40CFHT106
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB508FM-40CFHT106 |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 0.08A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 340μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 0.66V |
Key Features
- Surface mount diode with SOT-323 package type.
- Maximum continuous forward current of 0.08 amperes.
- Peak reverse repetitive voltage of 40 volts.
- Low forward voltage of 0.66 volts to improve efficiency.
- Peak reverse current rated at 340 microamperes for enhanced performance.
- Operates reliably between -55°C to 150°C temperature range.
- Designed with 2x common cathode pair diode configuration.
- Suitable for general rectification in electronic circuits.
Product Description
The ROHM RB508FM-40CFHT106 is a Schottky barrier diode delivering excellent performance for rectification purposes within electronic and power circuits. This diode is packaged in a compact SOT-323 surface mount form factor, ideal for space-constrained PCB layouts.
With a maximum continuous forward current of 0.08 amperes and a peak reverse repetitive voltage rating of 40 volts, it suits low current power supply and battery protection applications. The device features a low forward voltage drop of 0.66 volts, reducing power loss and improving circuit efficiency.
This diode’s configuration includes a 3-pin design arranged as two common cathode pairs. It supports an operating temperature range from -55°C up to 150°C, ensuring reliable performance in harsh environments including automotive sectors owing to its AEC-Q101 qualification.
The diode has a peak non-repetitive forward surge current of 1 ampere and a peak reverse current of 340 microamperes at rated voltage, emphasizing its robust electrical tolerance. Compact SOT-323 package for surface mounting.
Maximum continuous forward current: 0.08A. Peak reverse voltage: 40V. Low forward voltage 0.66V reduces power dissipation. Wide operating temperature from -55°C to 150°C. Schottky barrier diode design ensures efficient rectification.
RoHS compliant for environmental safety. AEC-Q101 tested for automotive compliance and reliability.
This component is ideal for use in industrial electronics, power supplies, automotive electronics, and general semiconductor diode needs within construction, manufacturing, and HVAC applications.
Explore more Schottky diodes and high-quality components across EnvMart for your technical and industrial requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the ROHM RB508FM-40CFHT106 Schottky diode is 0.08 amperes.
This model has a peak reverse repetitive voltage rating of 40 volts.
The forward voltage drop of the RB508FM-40CFHT106 is 0.66 volts, which helps to reduce power dissipation.
It operates reliably within a temperature range of -55°C to 150°C.
This diode is packaged in a compact SOT-323 surface mount form factor.
The diode features a 3-pin configuration arranged as two common cathode pairs.
The peak reverse current is rated at 340 microamperes at the rated voltage.
The peak non-repetitive forward surge current for this diode is 1 ampere.
Yes, the ROHM RB508FM-40CFHT106 is RoHS compliant for environmental safety.
It is suitable for general rectification in electronic circuits, including power supplies and automotive electronics.
This model is AEC-Q101 qualified, ensuring compliance and reliability in automotive applications.
The diode is designed with a Schottky barrier configuration, which enhances its rectification efficiency.
