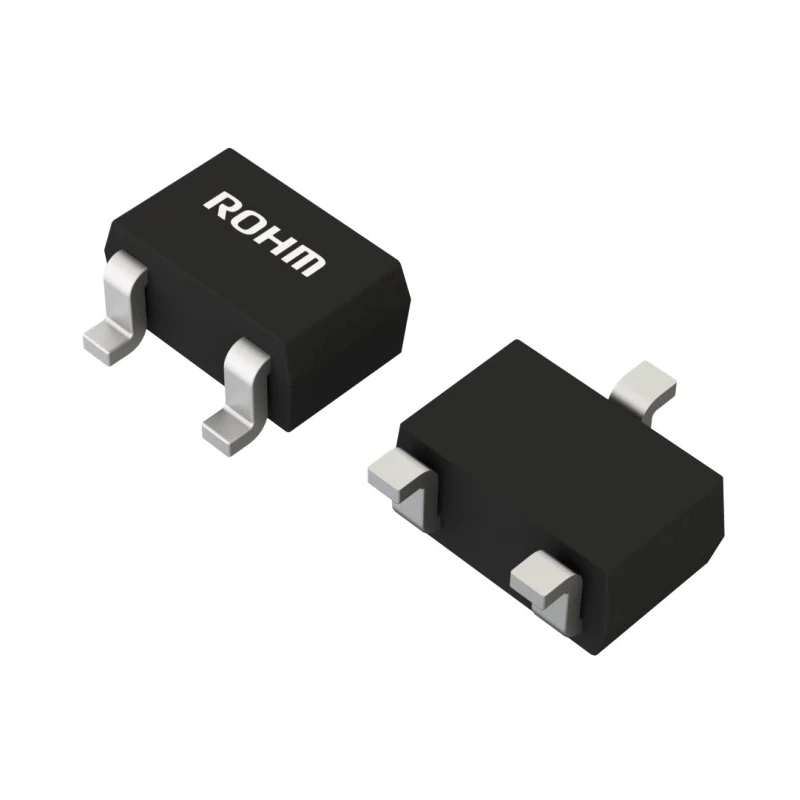

ROHM Schottky Diode 40 V 0.08 A 3-Pin SOT-323 RB508FM-40CFHT106
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB508FM-40CFHT106 |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 0.08A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 340μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 0.66V |
Key Features
- This diode features a maximum continuous forward current of 0.08 amperes.
- It supports peak reverse repetitive voltage up to 40 volts for robust operation.
- The maximum forward voltage is 0.66 volts ensuring efficient rectification.
- Operating temperature range spans from -55°C to 150°C, suitable for varied environments.
- Its SOT-323 package type facilitates compact PCB assembly.
- Includes 2x common cathode pair diode configuration providing specialized performance.
- Exhibits a peak reverse current of 340 microamperes to reduce leakage.
- Designed with ultra-low reverse current and high surge current tolerance.
Product Description
The ROHM RB508FM-40CFHT106 is a high-quality Schottky diode designed for surface mount applications, packaged in a compact and reliable 3-pin SOT-323 format. This diode operates at a maximum continuous forward current of 0.08 A and handles peak reverse repetitive voltage up to 40 V, making it suitable for efficient rectification in power and electronic circuits.
Featuring a low forward voltage drop of 0.66 V, this Schottky diode ensures minimized power loss and improved efficiency. Its wide operating temperature range from -55°C to 150°C enables use in diverse industrial conditions, from harsh environmental electronics to sensitive instrumentation.
Key internal design aspects include a 2x common cathode pair diode configuration, reducing leakage with a peak reverse current of only 340 μA. The diode also withstands peak non-repetitive forward surge currents up to 1 A, enhancing durability during transient events.
Its surface mount mount type and small mold package allow for compact PCB layout in industrial, electronics manufacturing, and communications equipment applications. The diode’s adherence to RoHS environmental standards ensures safe compliance for green manufacturing processes.
This Schottky diode is ideal for use in power supply circuits, switching power devices, and power management systems where low forward voltage and fast switching are critical. Its compact size and reliability make it well-suited for applications in consumer electronics, automotive circuits, telecommunications, and industrial automation.
This product is supplied new and manufactured with high quality standards by ROHM. Its robust electrical specifications include low reverse leakage current and high peak voltage tolerances. Designed for reliability in demanding electronic and industrial environments.
Explore our comprehensive catalog for more semiconductor diodes and related electronic components suitable for your industrial and laboratory requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 0.08 A.
It supports a peak reverse repetitive voltage of up to 40 V.
The maximum forward voltage drop is 0.66 V, ensuring efficient rectification.
The operating temperature range spans from -55°C to 150°C, making it suitable for various environments.
It is packaged in a compact 3-pin SOT-323 format, facilitating surface mount applications.
The peak reverse current is 340 μA, which helps in reducing leakage.
This diode can withstand peak non-repetitive forward surge currents up to 1 A.
It features a 2x common cathode pair diode configuration for specialized performance.
Yes, it adheres to RoHS environmental standards for safe compliance in manufacturing processes.
The country of origin for this diode is India.
It is suitable for use in power supply circuits, switching power devices, and power management systems.
This diode has a pin count of 3.
