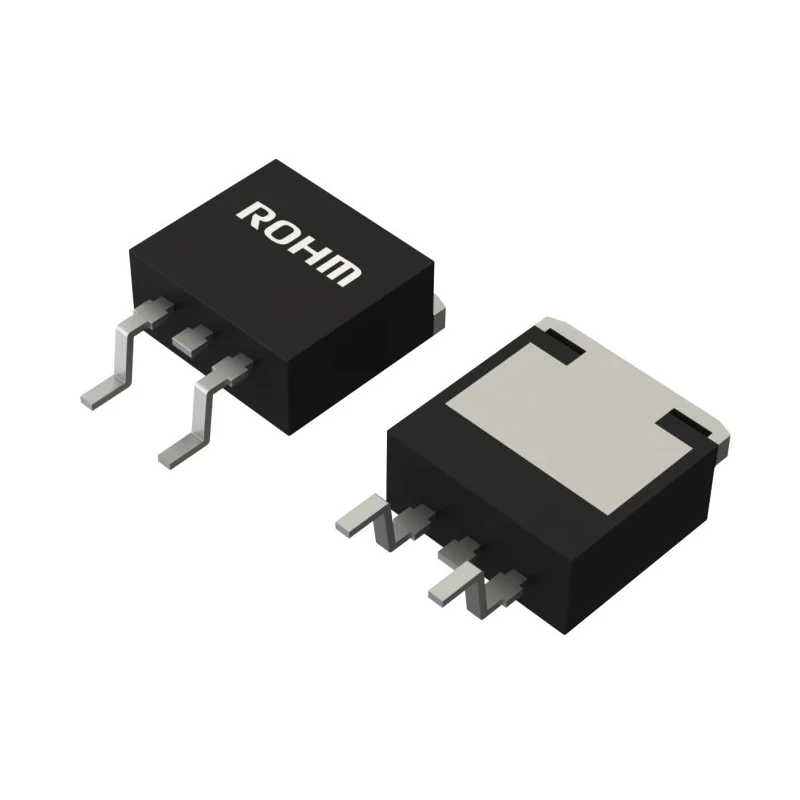

ROHM Bipolar NPN Power Transistor 80 V, 5 A, TO-263AB Package 3-Pin 2SCR586JGTLL
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 4.7mm |
| Length | 10.4mm |
| Model | 2SCR586JGTLL |
| Width | 15.4mm |
| Mount Type | Surface |
| Series | 2SCR586JG |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 80V |
| Minimum DC Current Gain hFE | 120 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 6V |
| Maximum Collector Base Voltage VCBO | 80V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 40W |
| Maximum DC Collector Current Idc | 5A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 200MHz |
Key Features
- Maximum collector current of 5 Amperes supports high current applications.
- Collector-emitter voltage rating of 80 Volts for reliable switching.
- TO-263AB 3-pin surface mount package ensures efficient thermal management.
- Power dissipation capacity of 40 Watts suitable for power driver circuits.
- High frequency performance up to 200 MHz for low frequency amplifier use.
- Operating temperature range from -55°C to 150°C for versatile environments.
- Minimum DC current gain (hFE) of 120 to ensure amplification efficiency.
- Automotive standard compliant (AEC-Q101) for quality assurance.
Product Description
The ROHM 2SCR586JGTLL is a bipolar NPN power transistor packaged in a TO-263AB surface mount form factor, engineered for robust performance in electronic and power applications.
It supports a maximum DC collector current of 5A and a maximum collector-emitter voltage of 80V, making it suitable for moderate power amplification and driver circuits. Its power dissipation rating of 40W allows efficient heat handling when mounted properly on circuit boards.
Designed to operate over a wide temperature range from -55°C up to 150°C, this transistor is versatile for use in automotive, industrial, and consumer electronics environments. The transistor configuration is single type with a transistor polarity of NPN.
With a minimum DC current gain (hFE) of 120 and a maximum transition frequency of 200 MHz, it is suitable for applications including low frequency amplifiers and switching elements. The device also complies with AEC-Q101 automotive standards, ensuring reliability under automotive operating conditions.
The dimensions of the transistor are optimized for PCB mounting: length 10.4 mm, width 15.4 mm, and height 4.7 mm, with a 3-pin design to simplify installation and connections. Maximum collector current of 5A supports high current switching and amplification.
80 V collector-emitter voltage rating suitable for automotive and industrial uses. 40 W power dissipation enables operation in demanding thermal conditions. Wide operating temperature span from -55°C to 150°C ensures durability.
200 MHz transition frequency allows operation in high-frequency circuits. Surface mount TO-263AB package supports automated assembly and efficient cooling. Automotive compliant (AEC-Q101) for quality assurance in vehicle electronics.
Compact size and 3-pin configuration simplify electronic design integration.
This ROHM power transistor is suitable for industrial, automotive, construction, and various electronics manufacturing applications requiring reliable, efficient transistor switches and amplifiers.
Explore additional bipolar transistor products and components at EnvMart to enhance your design and manufacturing projects.
Explore more products in our Bipolar Transistors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector current for this model is 5 Amperes, making it suitable for high current applications.
This transistor has a collector-emitter voltage rating of 80 Volts, which supports reliable switching in various applications.
It has a power dissipation capacity of 40 Watts, allowing it to handle demanding thermal conditions effectively.
The operating temperature range is from -55°C to 150°C, making it versatile for various environments.
The maximum transition frequency is 200 MHz, allowing it to be used in high-frequency circuits.
It is packaged in a TO-263AB surface mount format, which supports efficient thermal management and automated assembly.
The minimum DC current gain (hFE) is 120, ensuring effective amplification in applications.
Yes, it complies with AEC-Q101 automotive standards, ensuring reliability in automotive applications.
The dimensions are 10.4 mm in length, 15.4 mm in width, and 4.7 mm in height, optimized for PCB mounting.
This model has a single transistor configuration with NPN polarity.
The maximum emitter-base voltage (VEBO) is 6 Volts, which is important for ensuring safe operation.
This transistor is suitable for use in automotive, industrial, and consumer electronics applications requiring reliable switching and amplification.
