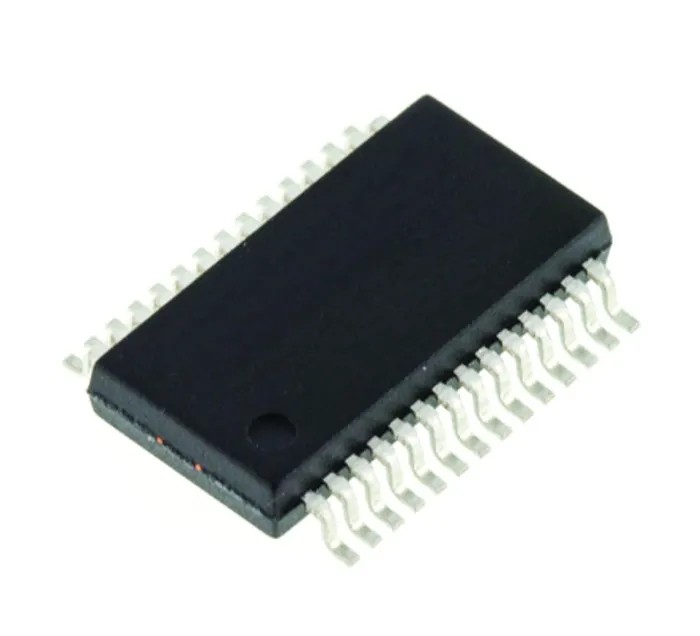

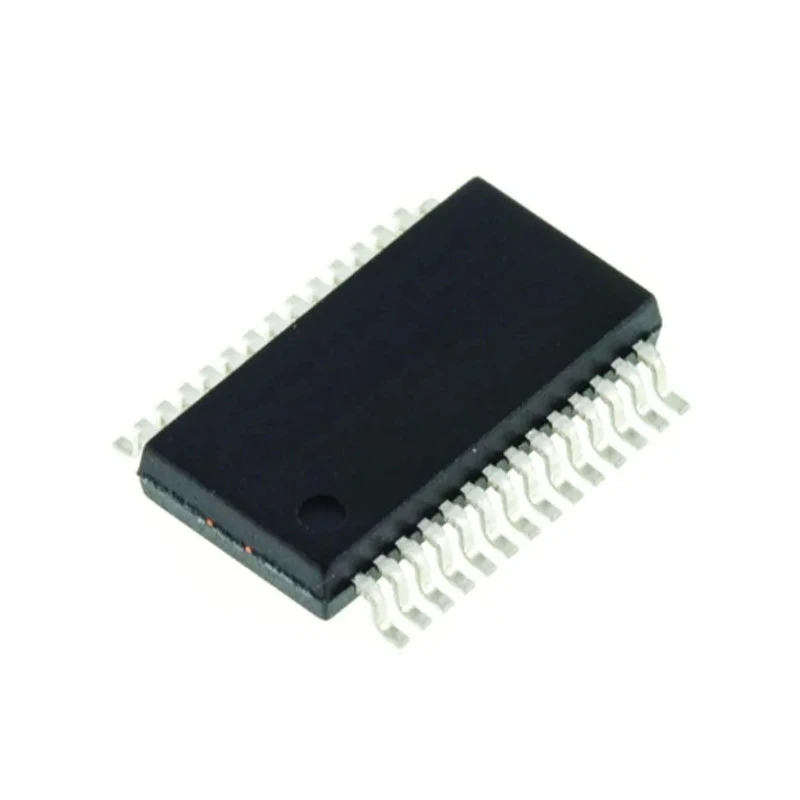

STMicroelectronics Line Transceiver IC, Surface Mount, SSOP Package, 28-Pin, 3-6 V Supply, ST3241EBPR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2mm |
| Length | 10.5mm |
| Model | ST3241EBPR |
| Width | 8.2mm |
| Mount Type | Surface |
| Series | ST3241E |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Standards/Approvals | V.28/V.24, EIA/TIA-232, IEC 1000-4-2 |
| Pin Count | 28 |
| Maximum Supply Voltage | 6V |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | 1mA |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Transceiver logic function designed for line interface applications.
- Single-ended input type with a maximum propagation delay of 0.15μs.
- Supports a maximum supply voltage of 6V and minimum of 3V for versatile power applications.
- Compact SSOP package with dimensions 10.5mm length, 8.2mm width, and 2mm height.
- Operational temperature range of -40°C to 85°C for wide environmental compatibility.
- Low supply current consumption of 1mA enhances efficiency.
- Pin count of 28 pins to support extended interface requirements.
- Meets V.28/V.24, EIA/TIA-232, and IEC 1000-4-2 standards for reliable communication.
Product Description
This device comes in a compact 28-pin SSOP surface mount package optimized for RS-232 line driver and receiver functions. Operating from a supply voltage range of 3 to 6 volts, the ST3241EBPR offers reliable operation across various electronic and industrial systems.
The transceiver logic supports single-ended inputs and provides a maximum propagation delay time of 0.15 microseconds, ensuring fast data transmission suitable for communication interface applications. With a pin count of 28, the SSOP package is designed for surface mounting, promoting compact PCB designs.
Operating reliably over a wide temperature range from -40°C to 85°C, the device is adaptable for use in diverse environments. It complies with internationally recognized standards including V.28/V.24, EIA/TIA-232, and IEC 1000-4-2, which guarantees compatibility with standard communication protocols.
The ST3241EBPR features low supply current consumption of 1mA, making it energy-efficient for continuous operation in power-sensitive applications. The maximum high level output current is 1mA, and the maximum low level output current is 1.6mA, enabling stable signal driving capability within RS-232 line interfaces.
This line transceiver is ideal for use in industrial electronics, laboratory equipment, communication devices, and embedded systems requiring robust signal interface solutions. Its surface mount SSOP form factor allows for streamlined assembly and integration into modern PCB layouts.
Transceiver logic function designed for line interface applications. Supports supply voltage range of 3V to 6V for flexible power requirements. Single-ended inputs with a maximum propagation delay of 0.15μs ensure rapid data transmission.
Compact SSOP 28-pin surface mount package for space-saving PCB integration. Wide operating temperature range of -40°C to 85°C suitable for industrial environments. Low supply current of 1mA supports energy-efficient designs.
Complies with V.28/V.24, EIA/TIA-232, and IEC 1000-4-2 standards. Pin configuration and dimensions: 28 pins, 10.5mm length, 8.2mm width, 2mm height. Designed for general electronic applications; not certified for automotive use.
Explore a wide selection of Line Transceiver ICs and semiconductor components at EnvMart for your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 3V to 6V, allowing for flexible power applications.
The maximum propagation delay time for the ST3241EBPR is 0.15 microseconds, ensuring rapid data transmission.
It comes in a compact SSOP package with dimensions of 10.5mm in length, 8.2mm in width, and 2mm in height.
The ST3241EBPR operates reliably over a wide temperature range from -40°C to 85°C, suitable for various environments.
This line transceiver supports single-ended input types, making it suitable for line interface applications.
This model features a pin count of 28 pins, designed to support extended interface requirements.
It complies with V.28/V.24, EIA/TIA-232, and IEC 1000-4-2 standards, ensuring reliable communication.
The ST3241EBPR has a low supply current consumption of 1mA, enhancing its energy efficiency.
The maximum high level output current is 1mA, providing stable signal driving capability.
The maximum low level output current is 1.6mA, which supports effective communication in RS-232 line interfaces.
This model is designed for surface mounting, which promotes compact PCB designs.
It is ideal for use in industrial electronics, laboratory equipment, communication devices, and embedded systems requiring robust signal interface solutions.
