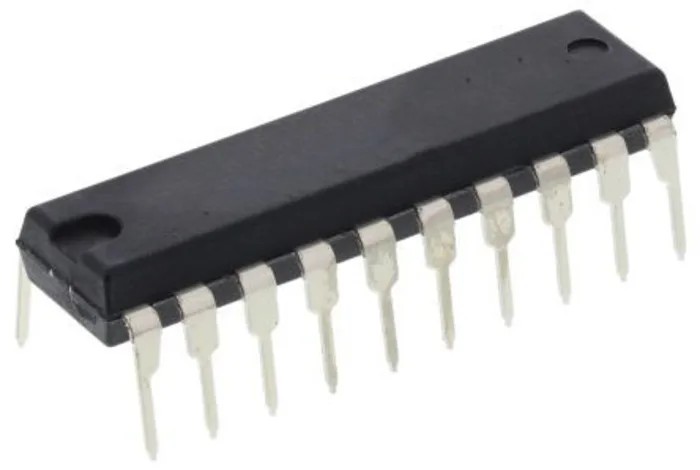

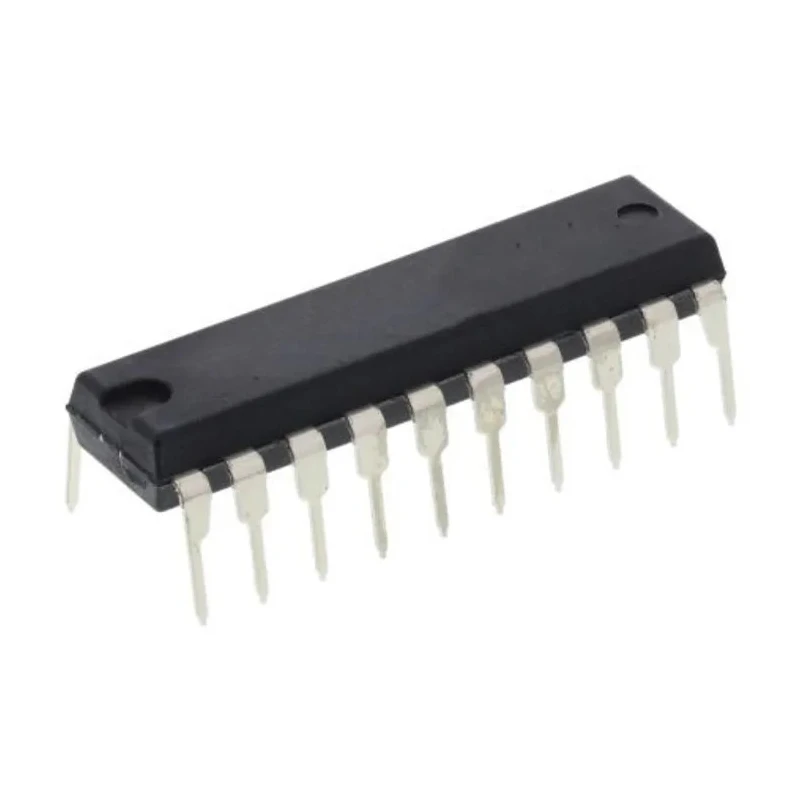

Maxim Integrated Multiplexer 4 CMOS Quad SPDT Logic IC 20-Pin PDIP MAX4533EPP+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 4.45mm |
| Length | 26.54mm |
| Model | MAX4533EPP+ |
| Width | 7.87mm |
| Mount Type | Through Hole |
| Output type | CMOS/TTL |
| Series | MAX4533 |
| Configuration | Quad SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 36V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -4.5V |
| Maximum On State Resistance | 200Ω |
Key Features
- Operates with a minimum supply voltage of -4.5V and maximum supply voltage of 36V.
- Features CMOS/TTL output type compatible with standard logic families.
- Includes four elements per chip with quad single-pole double-throw configuration.
- Designed for through hole mounting in a 20-pin PDIP package format.
- Operates reliably between -40°C and 85°C temperature range.
- Low maximum on-state resistance of 200 ohms ensures minimal signal loss.
- Complies with RoHS environmental standards for safety and sustainability.
- Compact dimensions of 26.54mm length, 7.87mm width, and 4.45mm height optimize PCB space usage.
Product Description
Maxim Integrated MAX4533EPP+ is a high-performance multiplexer IC featuring 4 CMOS quad SPDT switches in a 20-pin PDIP package. It supports a broad supply voltage range from -4.5V to 36V, accommodating various industrial and commercial electronic applications.
This multiplexer device offers CMOS/TTL logic output compatibility and integrates four independent elements allowing flexible circuit designs. It is engineered for through hole mounting, simplifying assembly on standard printed circuit boards.
The IC functions reliably within an operating temperature range of -40°C to 85°C, suited to demanding environments including industrial controls, communications, avionics, test instrumentation, and portable devices.
Low on-state resistance of up to 200Ω ensures efficient signal transmission with minimal insertion loss. The device complies with RoHS standards, ensuring environmental safety and regulatory compliance.
The compact form factor with a length of 26.54mm, width of 7.87mm, and height of 4.45mm allows it to fit compact designs and maintain signal integrity. It provides rail-to-rail signal handling and includes fault protection mechanisms to prevent damage during power-off or supply faults.
Applications include use in avionics and military systems, communication equipment, data acquisition systems, industrial process controls, and redundant backup systems. The device is pin-compatible with industry standard MAX333/MAX333A multiplexers, enabling easy drop-in replacement.
Operates over wide voltage range -4.5V to 36V. Quad SPDT configuration with 4 elements per chip. Through hole PDIP package with 20 pins. CMOS/TTL logic compatible output. Wide operating temperature -40°C to 85°C. Low max on-state resistance of 200Ω.
RoHS compliant. Rail-to-rail signal handling and fault protection. No power-supply sequencing required during power cycles.
This Maxim Integrated multiplexer MAX4533EPP+ is a reliable component choice for electronic design requiring robust switching capabilities. Explore more semiconductor and multiplexer IC products on EnvMart for your next project.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 36V.
It operates reliably within a temperature range of -40°C to 85°C.
This multiplexer IC includes four elements per chip, configured as quad single-pole double-throw (SPDT) switches.
It features CMOS/TTL output type, making it compatible with standard logic families.
The dimensions of this model are 26.54mm in length, 7.87mm in width, and 4.45mm in height.
The maximum on-state resistance is 200 ohms, which ensures minimal signal loss.
Yes, it complies with RoHS environmental standards for safety and sustainability.
This model is designed for through hole mounting in a 20-pin PDIP package format.
The logic family for this multiplexer IC is CMOS.
It is suited for applications in avionics, military systems, communication equipment, and industrial process controls.
No, it does not require power-supply sequencing during power cycles.
The country of origin for this multiplexer IC is India.
