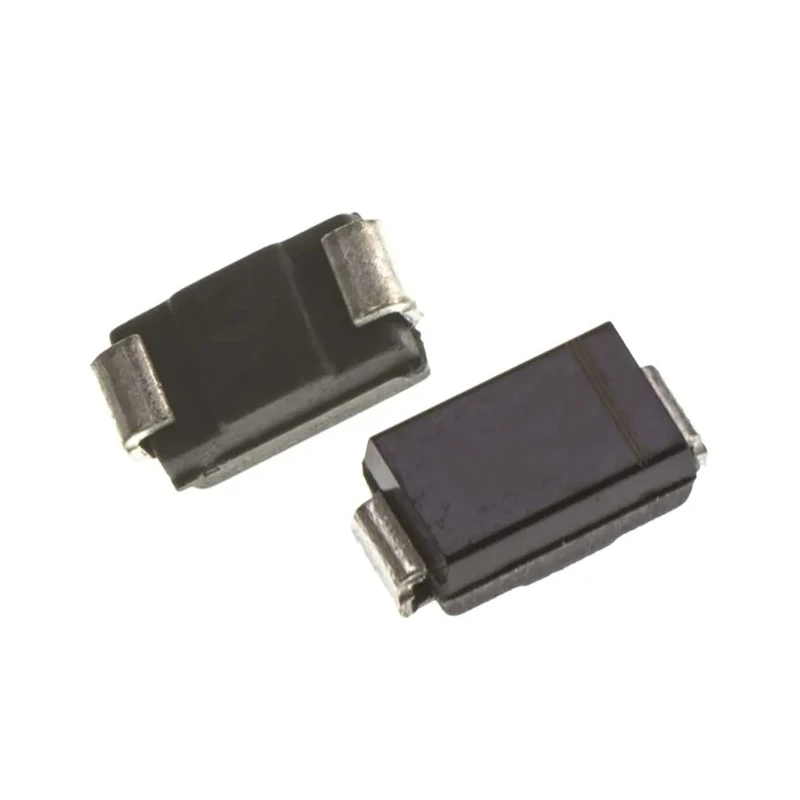

STMicroelectronics 48 V 600 W Surface Mount Zener Diode SMA6J48A-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 5.35mm |
| Model | SMA6J48A-TR |
| Mount Type | Surface |
| Series | SMA6J |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 600W |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 48V |
| Zener Type | Bi-Directional, Uni-Directional |
| Stand-off voltage range | from 5 V to 188 V |
Key Features
- Features a single diode configuration suitable for precise voltage regulation.
- Offers a nominal Zener voltage of 48 V with bi-directional and uni-directional types.
- Rated for maximum power dissipation of 600 W (10/1000 μs pulse).
- Designed for surface mounting in compact DO-214AC (SMA) package.
- Operates reliably across a temperature range from -55°C up to 175°C.
- Has low maximum reverse leakage current of 200 nA ensuring minimal power loss.
- Compact dimensions with length of 5.35 mm and height of 2.45 mm.
- Ideal for protecting sensitive electronics against electrostatic discharge and voltage surges.
Product Description
STMicroelectronics SMA6J48A-TR is a robust Zener Diode constructed for high surge handling capability with a peak power dissipation of 600 W at 10/1000 μs pulse. It is specifically designed to protect sensitive equipment against electrostatic discharges and electrical overstress in industrial and electronic applications.
Utilizing planar technology, it ensures low leakage current and high junction temperature tolerance (up to 175°C), making it suitable for high-end electronic equipment and Switch Mode Power Supplies (SMPS). The low clamping voltage provides a better safety margin, enhancing the protection of delicate circuits and contributing to an extended device life.
This diode is packaged in a space-saving DO-214AC (SMA) surface mount package, optimized for minimal PCB space consumption. It supports both unidirectional and bidirectional configurations with a nominal voltage of 48 V, making it versatile for various protective applications.
The SMA6J48A-TR's minimal reverse leakage current of 200 nA and capability to handle voltages from 5 V to 188 V enable reliable performance in demanding electrical environments. Single diode configuration for precise and reliable voltage regulation.
Surface mount DO-214AC (SMA) package minimizes PCB footprint. Peak pulse power rating of 600 W protects against voltage spikes. Wide operating temperature range from -55°C to 175°C ensures stability. Low leakage current enhances device efficiency and longevity.
Compact size facilitates integration in tight circuit designs. Suitable for industrial, electronic, and power supply protection applications. Explore STMicroelectronics products for advanced semiconductor components designed for reliability and performance in diverse industrial and electronic sectors.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 48 V.
It is rated for a maximum power dissipation of 600 W at a 10/1000 μs pulse.
This model operates reliably across a temperature range from -55°C to 175°C.
The diode has a length of 5.35 mm and a height of 2.45 mm.
The maximum reverse leakage current is 200 nA, ensuring minimal power loss.
It is packaged in a surface mount DO-214AC (SMA) package, which minimizes PCB space consumption.
This model supports both unidirectional and bidirectional configurations.
The stand-off voltage range is from 5 V to 188 V.
It features a single diode configuration suitable for precise voltage regulation.
It is designed for protecting sensitive electronics against electrostatic discharge and voltage surges in industrial and electronic applications.
The series name of this model is SMA6J.
The country of origin for this diode is India.
