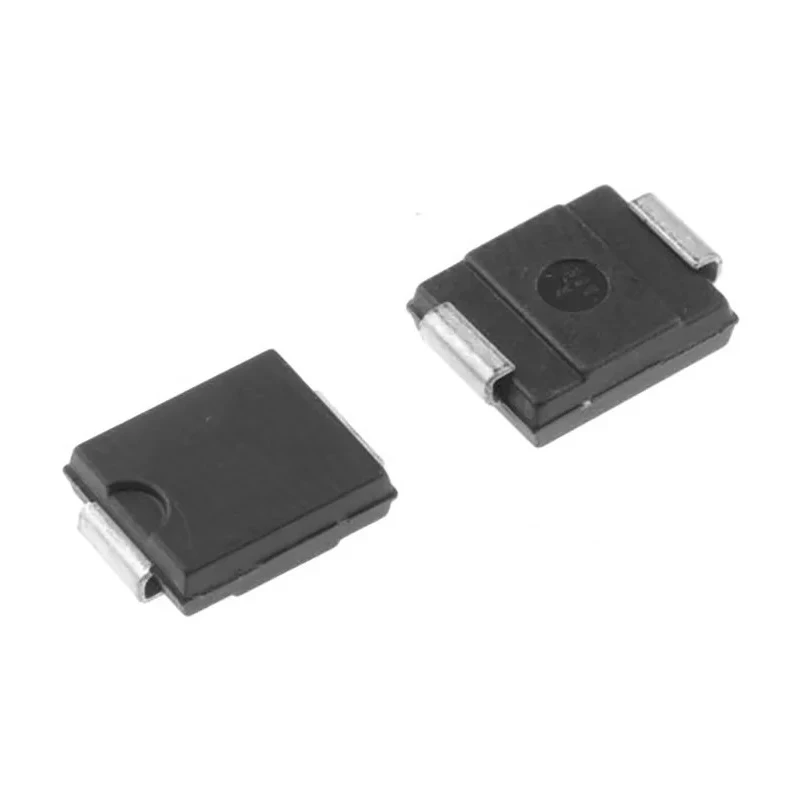

STMicroelectronics 1.18 V Bi-Directional Zener Diode, Single Element, Surface Mount DO-214AB (SMC) Package, 1.5 SMCJ18CA-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 8mm |
| Length | 25mm |
| Model | SMCJ18CA-TR |
| Mount Type | Surface |
| Series | SMC |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1.5kW |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 18V |
| Zener Type | Bi-Directional |
| Stand off voltage range | from 5 V to 188 V |
Key Features
- Provides protection against electrostatic discharges and electrical overstress.
- Designed for surges below 1500 W (10/1000 μs) and 10 kW (8/20 μs) peaks.
- Operates within a temperature range of -55°C to 150°C.
- Features very low leakage current for high reliability and stability over time.
- Compact surface mount DO-214AB (SMC) package with 2 pins.
- Suitable for protecting sensitive high-end equipment and switched-mode power supplies.
- Standoff voltage range from 5 V to 188 V for versatile applications.
- Offers high power capability even at maximum junction temperature.
Product Description
STMicroelectronics SMCJ18CA-TR is a high-performance 1.18 V bi-directional Zener diode supplied in a compact DO-214AB (SMC) surface mount package with two pins. It integrates a single diode element designed to provide reliable transient voltage suppression for sensitive semiconductor devices, making it ideal for industrial electronic applications, including power and signal line protection.
This diode features a peak pulse power dissipation of 1500 W at 10/1000 μs surge and 10 kW at 8/20 μs surge, offering robust protection against sudden high-energy spikes such as electrostatic discharges and electrical over stress events. The device's low leakage current at operating temperatures enhances the reliability and extends the operational lifespan of protected equipment.
The product operates robustly within a wide temperature range from -55°C minimum to 150°C maximum junction temperature, accommodating challenging industrial and commercial environments while maintaining stable voltage clamping characteristics. Its standoff voltage range from 5 V up to 188 V makes it suitable for various circuit designs, including automotive, industrial controls, telecommunications, and consumer electronics.
The planar technology used in SMCJ18CA-TR ensures compatibility with high-end equipment and switched-mode power supplies (SMPS). This diode's bi-directional construction allows it to protect circuits from forward and reverse voltage transients, enhancing versatility in diverse protection schemes.
Provides protection against electrostatic discharges and electrical overstress. Designed for surges below 1500 W (10/1000 μs) and 10 kW (8/20 μs) peaks. Operates reliably from -55°C to 150°C. Low leakage current ensuring high reliability and longevity.
Compact surface mount DO-214AB (SMC) package ideal for space-constrained PCBs. Suitable for high-end electronics and SMPS applications. Wide standoff voltage range from 5 V to 188 V. Bi-directional type for dual-polarity transient protection.
This high-power Zener diode is essential for industrial, telecommunications, commercial electronics, and automotive protective circuitry requiring precise transient voltage suppression and reliable operation under harsh conditions.
Explore EnvMart's catalog for more semiconductor components and power protection devices to support your design and manufacturing needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 18 V.
It has a maximum power dissipation of 1.5 kW at a surge of 10/1000 μs.
This diode operates reliably within a temperature range of -55°C to 150°C.
It is supplied in a compact DO-214AB (SMC) surface mount package.
The SMCJ18CA-TR has a pin count of 2.
The standoff voltage range for this model is from 5 V to 188 V.
This model features a single diode configuration.
The maximum reverse leakage current is specified at 200 nA.
It is suitable for protecting sensitive high-end equipment and switched-mode power supplies.
The bi-directional construction allows it to protect circuits from both forward and reverse voltage transients.
The height of this diode is 8 mm, and its length is 25 mm.
The country of origin for this model is India.
