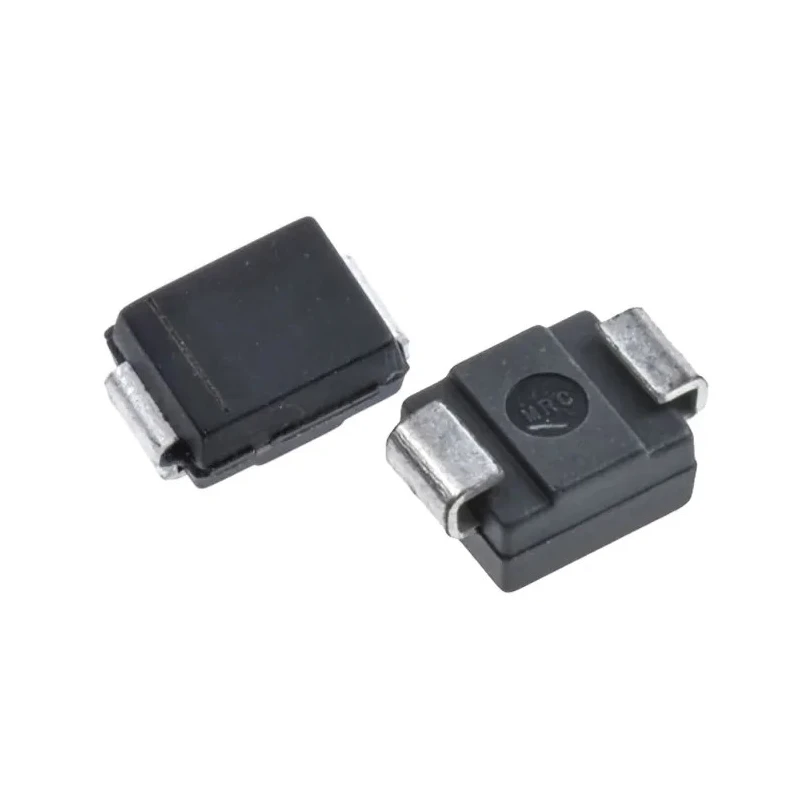

STMicroelectronics 1, 47.6 V Bi-Directional Zener Diode Surface Mount DO-214AA SMB Package SM6T56CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 3.95mm |
| Model | SM6T56CA |
| Mount Type | Surface |
| Series | SM |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 600W |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 47.6V |
| Zener Type | Bi-Directional |
| Stand-off voltage range | from 6.8 V to 220 V |
Key Features
- Designed for electrostatic discharge and electrical overstress protection.
- Capable of peak pulse power dissipation of 600 W (10/1000 μs) and 4 kW (8/20 μs).
- Utilizes planar technology for low leakage current and high reliability.
- Suitable for high-end equipment and switched-mode power supplies (SMPS).
- Operates within a temperature range of -55°C to 150°C.
- Compact surface mount package with length 3.95 mm and height 2.45 mm.
- Bi-directional zener type with nominal zener voltage of 47.6 V.
- Maximum reverse leakage current of 200 nA enhances performance stability.
Product Description
The STMicroelectronics SM6T56CA is a high-performance, bi-directional Zener diode designed to provide robust protection against transient voltage surges and electrostatic discharges. Packaged in a compact DO-214AA (SMB) surface mount package, it is optimized for use in sensitive electronic devices and power management applications, especially in high-end equipment and switched-mode power supplies (SMPS).
This diode is capable of handling peak pulse power values up to 600 W with a 10/1000 μs waveform, and even higher surges up to 4 kW for short 8/20 μs events, providing strong protection against voltage spikes. The planar technology utilized in its construction ensures low leakage current - 0.2 μA at 25 °C and 1 μA at 85 °C - maintaining device reliability and minimizing power loss.
The diode operates efficiently between -55 °C and 150 °C, making it suitable for demanding industrial and automotive environments. The bi-directional feature allows protection on both voltage polarities, enhancing versatility in circuit designs.
The surface mount DO-214AA package measures 3.95 mm in length and 2.45 mm in height, featuring 2 pins for easy PCB mounting and stable mechanical performance. Its nominal Zener voltage is 47.6 V, making it ideal for voltage regulation and surge protection at this specific threshold.
High peak pulse power dissipation of 600 W for transient surge protection. Bi-directional Zener diode for comprehensive polarity protection. Low leakage current for enhanced circuit efficiency and reliability. Wide operating temperature range suitable for harsh environments.
Compact DO-214AA (SMB) surface mount package for space-saving PCB layouts. Robust planar technology construction ensures long-term stability. Typical applications include power supply voltage regulation and equipment protection.
Designed to protect sensitive electronics from electrostatic discharge and electrical overstress.
This product is ideal for industrial, manufacturing, electronics, and automotive sectors requiring dependable voltage surge protection in compact surface mount devices. Browse our Semiconductor and Zener Diode categories for complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of the SM6T56CA is 47.6 V.
This model can handle a maximum power dissipation of 600 W for a 10/1000 μs waveform.
It operates efficiently within a temperature range of -55°C to 150°C.
The diode is packaged in a compact DO-214AA (SMB) surface mount package.
The maximum reverse leakage current is 200 nA, enhancing performance stability.
This model features 2 pins for easy PCB mounting.
It has a single diode configuration.
The diode utilizes planar technology, which ensures low leakage current and high reliability.
It is suitable for high-end equipment and switched-mode power supplies (SMPS), providing robust protection against voltage surges.
The package measures 2.45 mm in height and 3.95 mm in length.
It is capable of handling peak pulse power dissipation of 600 W (10/1000 μs) and up to 4 kW (8/20 μs).
The stand-off voltage range for the SM6T56CA is from 6.8 V to 220 V.
