| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

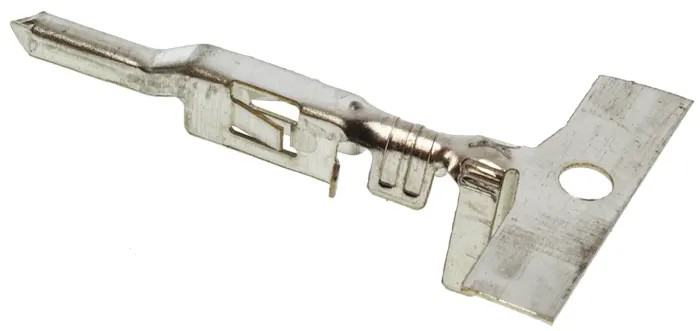

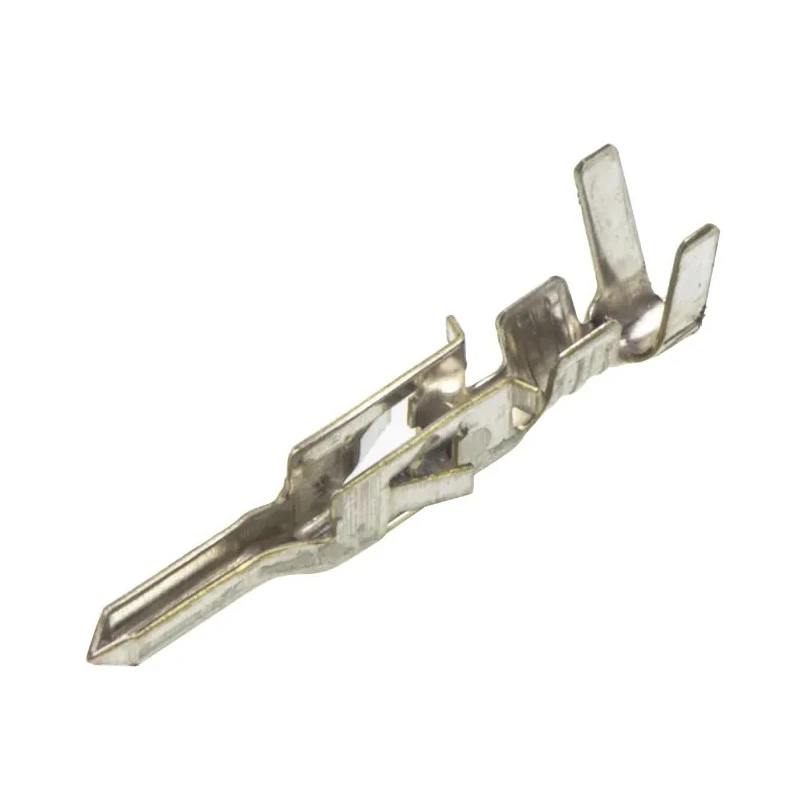

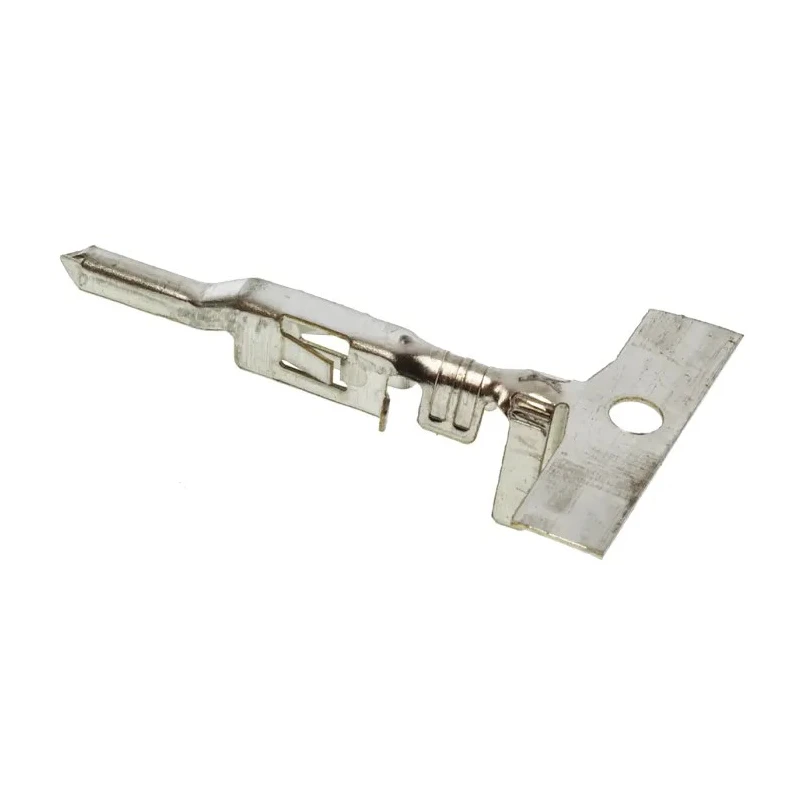

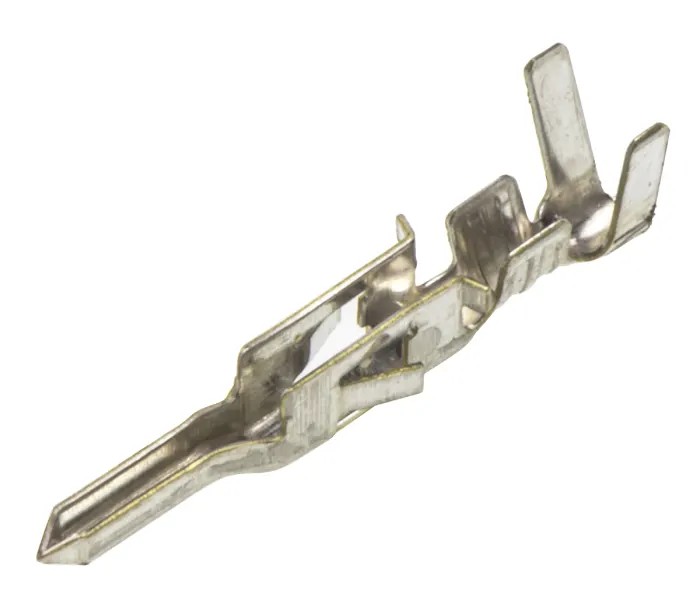

Molex 39-00-0040 Male Crimp Terminal is a high-quality brass electrical contact designed for Mini-Fit series connector housings, providing dependable and secure connections for wire sizes ranging from 24 to 18 AWG. With a current rating of 9 amps, this terminal ensures efficient power transmission for various industrial and commercial applications.
The contact features tin plating which enhances corrosion resistance and extends the terminal's operational life, allowing it to function reliably in harsh environments with temperatures ranging from -40°C to 105°C. Locking tangs firmly secure the terminal within the connector housing to prevent dislodgement due to vibration or impact.
Designed especially for crimp termination, this terminal is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. It maintains a low maximum contact resistance of 10 milliohms that guarantees minimal loss of electrical efficiency during operation. The terminal is rated for a durability of 30 mating cycles, supporting multiple insertion and removal processes without compromising performance.
The Molex 5558 Series Male Crimp Terminal finds broad use in sectors such as automotive, industrial automation, medical equipment, telecommunications, and consumer electronics, where reliable electrical connections are critical. Its design emphasizes secure connection, versatility, and long-term durability.
Constructed with brass contact material for excellent conductivity. Tin plating for corrosion protection. Wire size compatibility from 24 AWG to 18 AWG. Rated current capacity of 9 amps. Operating temperature from -40°C to 105°C.
Locking tangs ensure secure housing fit. Maximum contact resistance of 10 milliohms. Durability rated to 30 mating cycles. Compatible with Mini-Fit Jr, TPA, and BMI housings. The package does not include tools but the compatible extraction tool Molex 215-5900 is recommended for safe removal of the terminal from connector housings.
