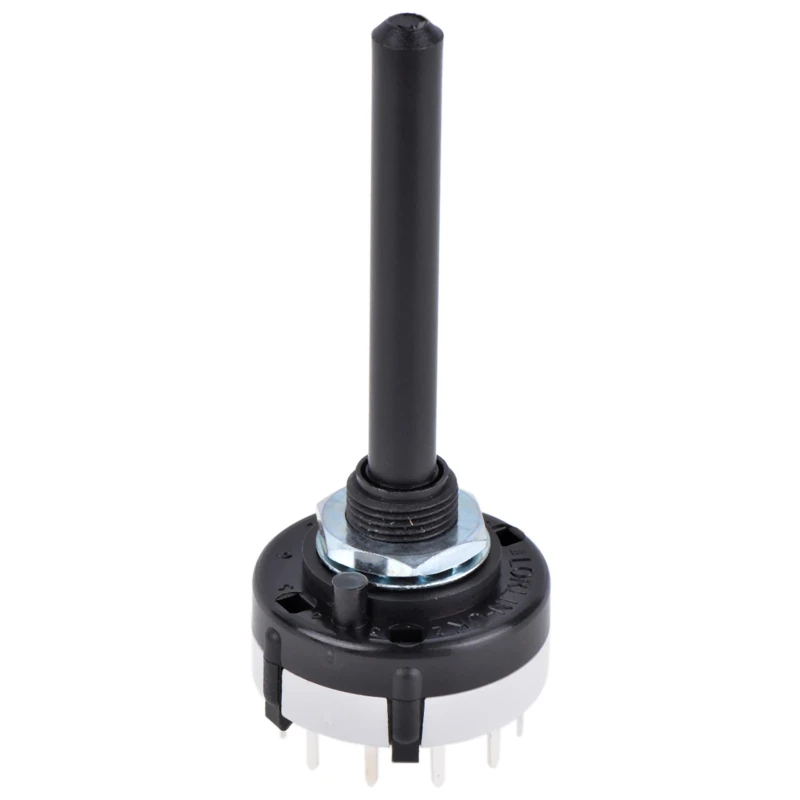

Lorlin 4 Position 3PST Rotary Switch 150mA, Panel Mount, Polyamide 66 Housing CK1061

Lorlin CK1061 is a 4 Position 3PST Rotary Switch with a current rating of 150mA, engineered for panel mounting applications. It features a Polyamide 66 housing that offers robust insulation and mechanical durability. The switch is designed for electrical, automation, and control system use where compact rotary position switching is required.

With a 3-pole (3PST) contact configuration, the switch supports multiple circuits with ease. It is rated for maximum AC voltage of 250V and DC voltage of 24V, suitable for low current control circuits. The switch offers a mechanical life of 10,000 cycles, ensuring long-term operation in industrial and commercial setups.

The device has a 27.5mm diameter body and stands 71.1mm tall. The angle of throw at 90 degrees allows precise rotary operation. The 6mm spindle and threaded bush assembly facilitate easy knob mounting and secure panel fitment. The switch is rated for operating temperatures from -30°C to 85°C, accommodating diverse environmental conditions.

This rotary switch complies with RoHS environmental standards, promoting safe and sustainable use.

Ideal for use in industrial controls, electrical panels, HVAC systems, manufacturing equipment, and laboratory instruments, the Lorlin CK1061 provides reliable electrical switching performance. Its solder terminal type ensures firm and enduring electrical connections.

This Rotary Switch features 4 selectable positions for multiple circuit configurations. The switch has 3 poles with a 3PST contact configuration suitable for complex circuit switching. Constructed with durable Polyamide 66 housing, ensuring insulation and mechanical strength.

Designed for reliable operation with a mechanical life rated to 10,000 cycles. Compact dimensions with 27.5mm diameter and 71.1mm height allow easy panel installation. Operates efficiently within temperature range of -30°C to 85°C for varied environments.

The switch has a 90-degree angle of throw for precise position control. Terminal type is solder, enabling secure electrical connections. Includes a 6mm spindle with M10x0.75mm threaded bush for mounting collet knobs. Complies with RoHS standards for environmental safety.

Explore more electrical switch solutions and related Lorlin products on EnvMart for your industrial and commercial requirements.
