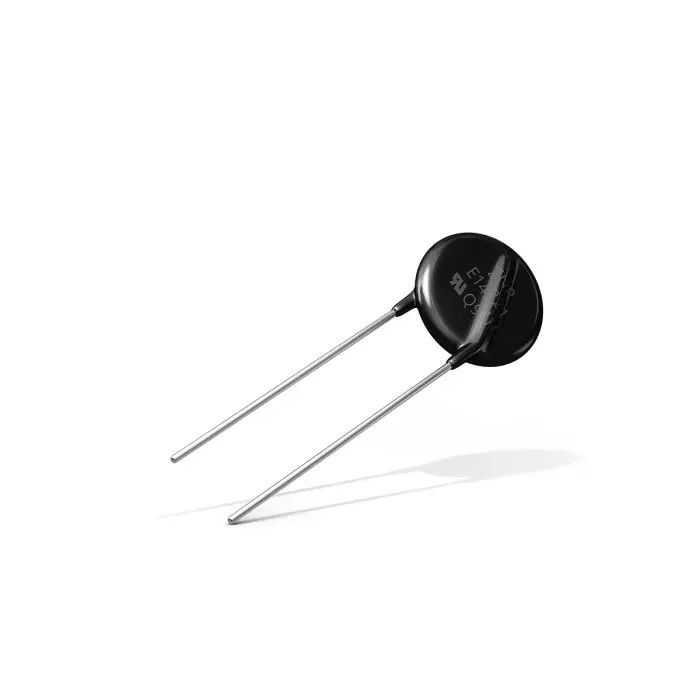

Panasonic E-S1 Surge Absorber Varistor 360 V Clamping 1815 V 100 A 7.5 kA ERZE14A361S1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Diameter | 16.5mm |
| Brand | Panasonic |
| THICKNESS | 6.1mm |
| Length | 24mm |
| Model | ERZE14A361S1 |
| Depth | 6.1mm |
| Packaging | Bulk |
| Series | E-S1 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 900pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 895V dc |
| Pin Count | 2 |
| Termination Style | Straight Lead |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 680V ac |
| Clamping Voltage VC | 1815V |
| Clamping Current | 100A |
| Maximum Surge Current | 7.5kA |
| Varistor Voltage | 360 V |
Key Features
- Compact varistor with 16.5mm diameter and 24mm length for space-saving applications.
- Clamping voltage of 1815 V and maximum surge current of 7.5 kA ensures robust transient overvoltage absorption.
- Wide operating temperature range from -40°C to 125°C for high-temperature durability.
- Features straight lead termination style with 10mm lead pitch for easy PCB mounting.
- Suitable for protection of semiconductors like transistors, diodes, ICs, and thyristors.
- Ideal for surge protection in consumer electronics, communication equipment, and home appliances.
- Manufactured in Indonesia with compliance to IEC, UL, VDE, and CQC standards.
Product Description
Panasonic ERZE14A361S1 E-S1 Surge Absorber is a high-performance varistor designed for absorbing transient overvoltages efficiently in electronic circuits. With a varistor voltage of 360 V and a capacitance of 900 pF, it delivers stable filtering and surge protection in compact dimensions. Measuring 16.5 mm in diameter and 24 mm in length, it suits space-constrained electrical assemblies.
It features a high clamping voltage of 1815 V and supports a maximum surge current of 7.5 kA, providing excellent protection against voltage spikes. The device operates reliably over a broad temperature range from -40°C to 125°C, making it suitable for harsh industrial and commercial environments.
The absorber’s straight lead termination style with a 10 mm lead pitch facilitates straightforward PCB mounting and integration. This surge absorber series is suitable for protecting sensitive semiconductor devices such as transistors, diodes, ICs, thyristors, and triacs from transient damage.
Applications include consumer electronics, communication equipment, measuring instruments, controller electronics, gas or petroleum appliances, and various home appliances requiring surge protection.
Compliant with international safety standards including IEC 60950-1 Annex Q, IEC 62368-1, UL 1449, VDE IEC 61051-1, and CQC certifications, it assures quality and safety for industrial and electronic applications. Packaged in bulk and manufactured in Indonesia, this product offers a dependable solution for transient voltage suppression.
Compact size with high surge current capability in the E-S1 series. Designed for transient overvoltage absorption in electrical circuits. Wide variety of varistor voltages available for diverse applications. Protection for semiconductors and consumer electronic equipment.
Certified to multiple international electrical safety standards. Manufactured for high temperature operation up to 125°C. Explore more surge protection components and reliable Varistors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current rating of this varistor is 7.5 kA.
The clamping voltage of this model is 1815 V.
This varistor has a diameter of 16.5 mm and a length of 24 mm.
The operating temperature range for this model is from -40°C to 125°C.
The varistor voltage of this model is 360 V.
It features a straight lead termination style with a 10 mm lead pitch for easy PCB mounting.
The capacitance of this varistor is 900 pF.
This varistor is suitable for protecting semiconductors like transistors, diodes, ICs, and thyristors, as well as for surge protection in consumer electronics and communication equipment.
It complies with IEC, UL, VDE, and CQC standards, ensuring quality and safety for industrial and electronic applications.
The maximum DC voltage rating for this model is 895 V DC.
This varistor has a pin count of 2.
This model is manufactured in Indonesia.
