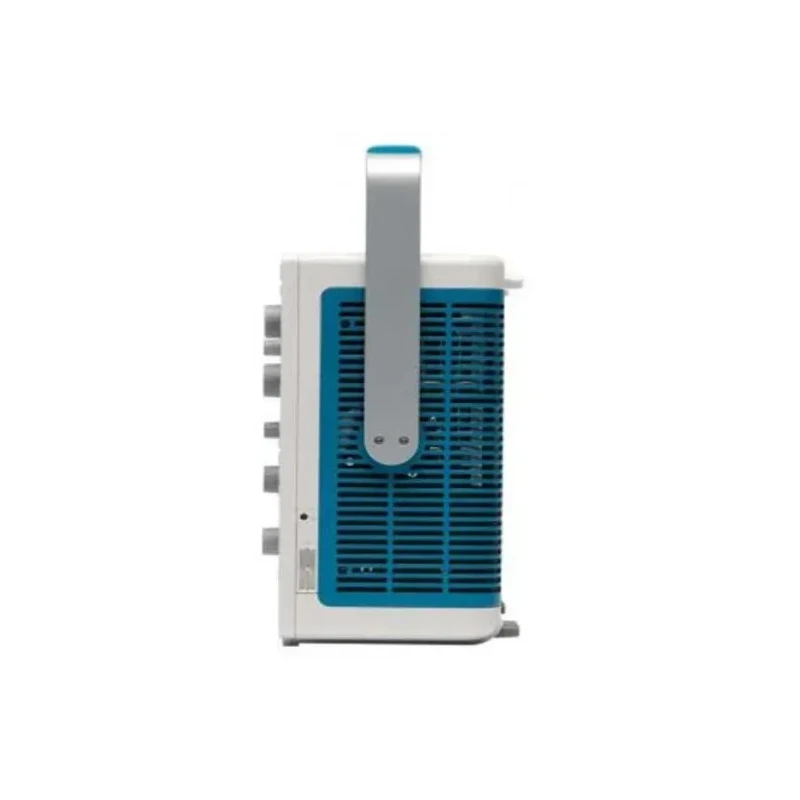

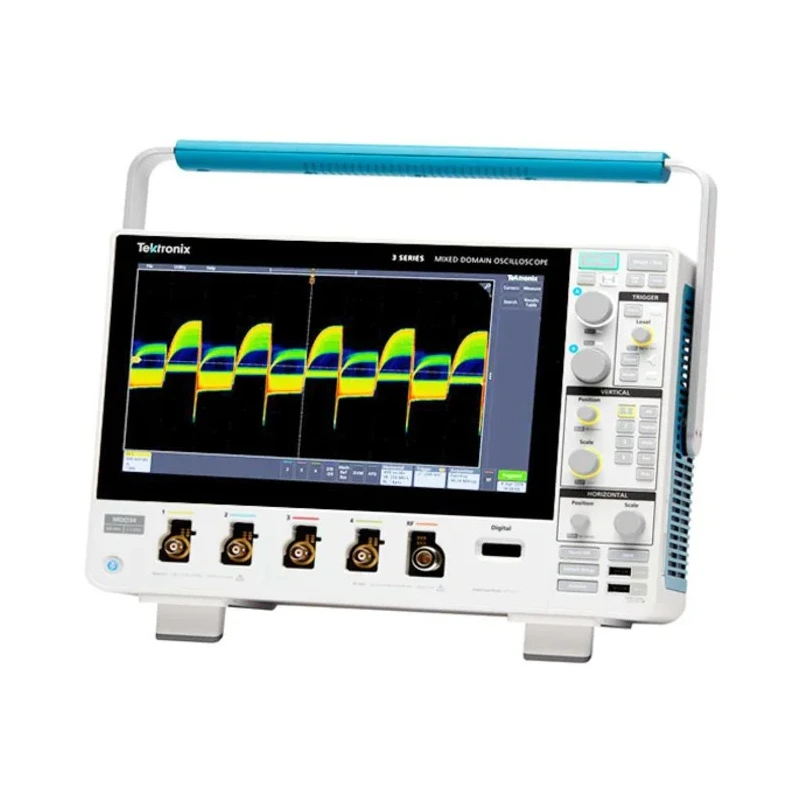

Tektronix 3 Series MDO Mixed Domain Bench Oscilloscope 500 MHz Bandwidth 16 Channels MDO32 3-BW-500

Tektronix MDO32 3-BW-500 3 Series MDO Mixed Domain Bench Oscilloscope features a 500 MHz bandwidth and provides 16 analog and digital channels optimized for precise waveform analysis and mixed signal measurement. With an 11.6-inch capacitive touchscreen TFT LCD display, it offers enhanced visualization and intuitive control for complex testing scenarios.

This bench oscilloscope integrates a true hardware spectrum analyzer that delivers superior RF test performance essential for IoT device development, EMI diagnostics, and baseband signal validation. Its sampling rate of up to 5 GS/s on each analog channel and memory depth of 10 million points ensures detailed capture of transient and complex signals.

The device supports a wide range of serial bus decode and trigger options including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB interfaces, facilitating comprehensive communications analysis. It boasts more than 125 trigger combinations and dozens of automated measurements to streamline testing workflows.

Additional features include an embedded 1 GHz spectrum analyzer and optional upgrades for bandwidth extension up to 3 GHz, an MSO option with 16 digital channels, a 50 MHz arbitrary/function generator, and advanced application software for power, security, automotive, and aerospace analysis.

This oscilloscope is suitable for industrial, laboratory, manufacturing, and research environments requiring high-precision electrical signal measurement and spectrum analysis. It is powered by mains supply and has dimensions of approximately 252 mm height, 148.6 mm width, and 148.6 mm depth. Country of origin is China.

Large 11.6-inch capacitive touchscreen for ease of use. Improved low-level signal measurement accuracy by 40 percent. Built-in 1 GHz Spectrum Analyzer for embedded RF testing. Supports extensive serial bus protocols for advanced triggering and decoding.

Upgradeable hardware and software options for enhanced measurement capabilities. High waveform refresh rate of 280,000 per second for real-time analysis. Memory depth of 10 million points for detailed waveform capture. Vertical sensitivity ranges from 1 mV/div to 10 V/div with 8-bit resolution.

Wide industrial and research applications including IoT, automotive, and EMI testing. Includes connectivity options for USB and multiple serial interfaces. Explore the full range of Tektronix test and measurement instruments at EnvMart, including Oscilloscopes, probes, accessories, and software solutions.
