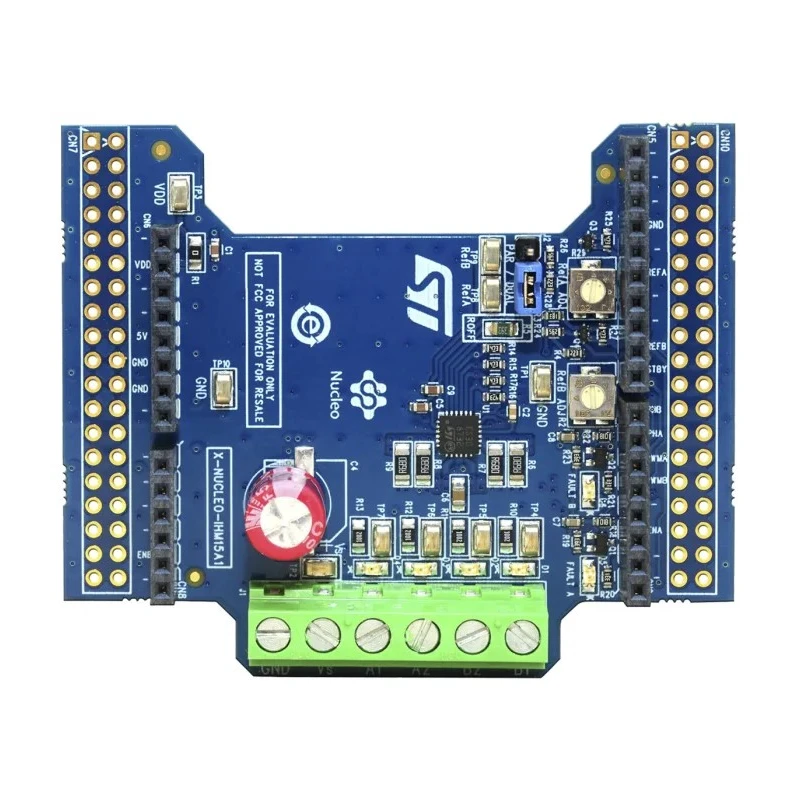

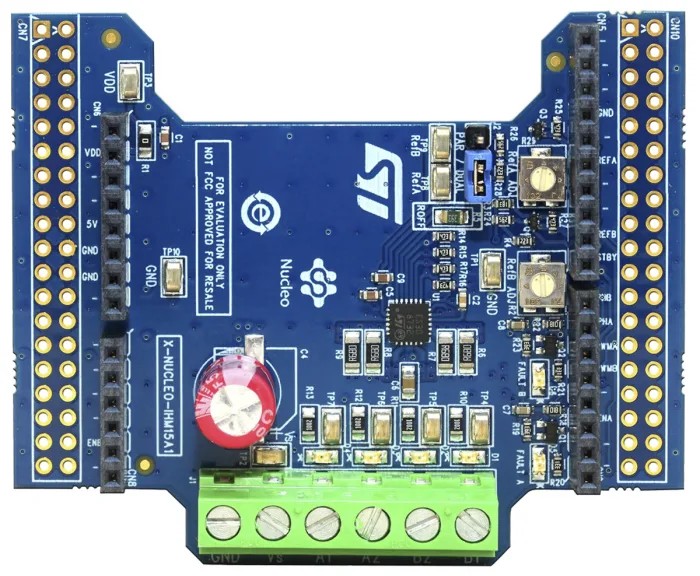

STMicroelectronics Dual Brush DC Motor Driver Expansion Board Based on STSPIN840 for STM32 Nucleo X-NUCLEO-IHM15A1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-IHM15A1 |
| For Use With | STM32 Nucleo |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | STSPIN840 |
| Kit Name | Dual Brush DC Motor Driver Expansion Board Based on STSPIN840 for STM32 Nucleo |
| Full protection set including | overcurrent, short-circuit, under voltage lock out and thermal shutdown |
Key Features
- The board supports a voltage range from 7 to 45 volts.
- It delivers output current up to 1.5 Arms per motor for efficient operation.
- Includes two independent current limiters with adjustable off time for precise control.
- Equipped with full protection features including overcurrent, short-circuit, undervoltage lockout, and thermal shutdown.
- Compatible with Arduino UNO R3 connectors and most STM32 Nucleo boards for flexible integration.
- Suitable for applications such as robotics, thermal printers, and compact motor driving devices.
- Supports parallel operation and can be converted to single brush DC driver with double current capability.
- RoHS compliant for environmental safety.
Product Description
The STMicroelectronics X-NUCLEO-IHM15A1 is a dual brush DC motor driver expansion board based on the STSPIN840, designed specifically for STM32 Nucleo boards. It offers a compact and affordable solution for motor driving applications requiring reliable and efficient control.
This evaluation board supports a wide voltage range of 7 to 45 V, capable of delivering an output current of up to 1.5 Arms for each motor, suitable for demanding motor tasks. With two independent current limiters featuring adjustable off time, the board ensures precise current management, increasing the safety and longevity of connected motors.
It includes a comprehensive protection set covering overcurrent, short-circuit, undervoltage lockout, and thermal shutdown, making it ideal for rugged industrial, robotics, and thermal printer applications.
The board supports parallel operation and can be reconfigured as a single brush DC driver with double current capacity. Its compatibility with Arduino UNO R3 connectors and most STM32 Nucleo boards ensures broad integration possibilities in development and prototyping environments.
The board is especially useful in power management and motor control development kits. Compact and lightweight, it simplifies motor driver integration in embedded systems. Designed for evaluative and prototyping purposes in electronics and robotics engineering.
This product is compliant with RoHS standards, ensuring reduced environmental impact.
For engineers and developers working with STM32 Nucleo platforms, the X-NUCLEO-IHM15A1 is a valuable tool offering reliable motor driving capabilities with extensive protection and configurability.
Explore more in the Motor Driver Boards category at EnvMart for complementary components and development tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The board supports a voltage range from 7 to 45 volts.
It delivers output current up to 1.5 Arms per motor for efficient operation.
It includes two independent current limiters with adjustable off time for precise control.
The board includes a full protection set covering overcurrent, short-circuit, undervoltage lockout, and thermal shutdown.
Yes, it is compatible with Arduino UNO R3 connectors and most STM32 Nucleo boards for flexible integration.
Yes, it supports parallel operation and can be converted to a single brush DC driver with double current capability.
It is suitable for applications such as robotics, thermal printers, and compact motor driving devices.
The specific dimensions and weight are not provided in the available information.
The country of origin for this product is India.
This product is RoHS compliant, ensuring reduced environmental impact.
This kit is classified as an Evaluation Board.
The board is based on the STSPIN840 featured device.
