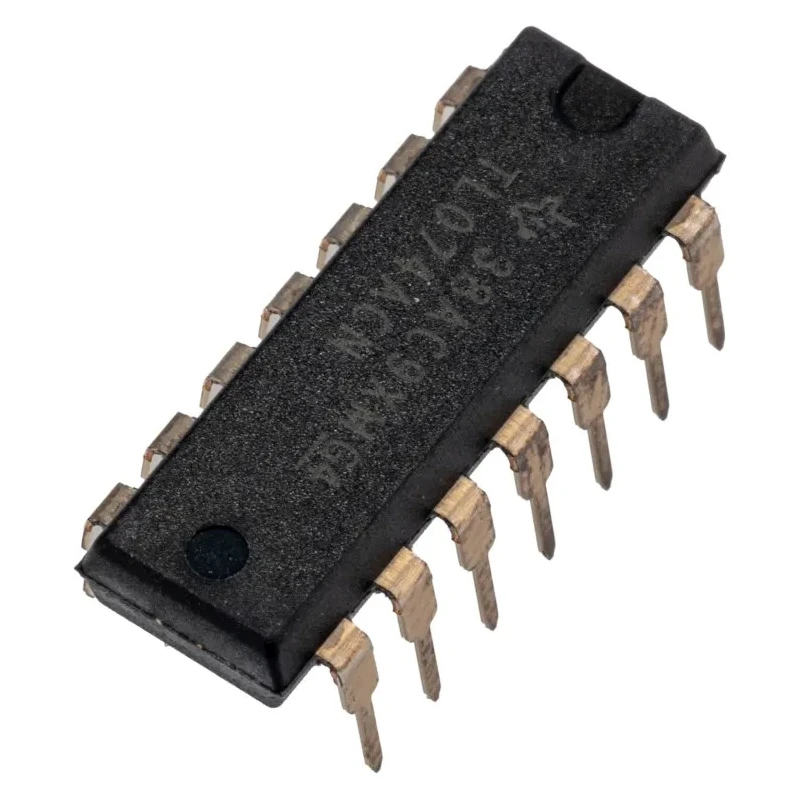

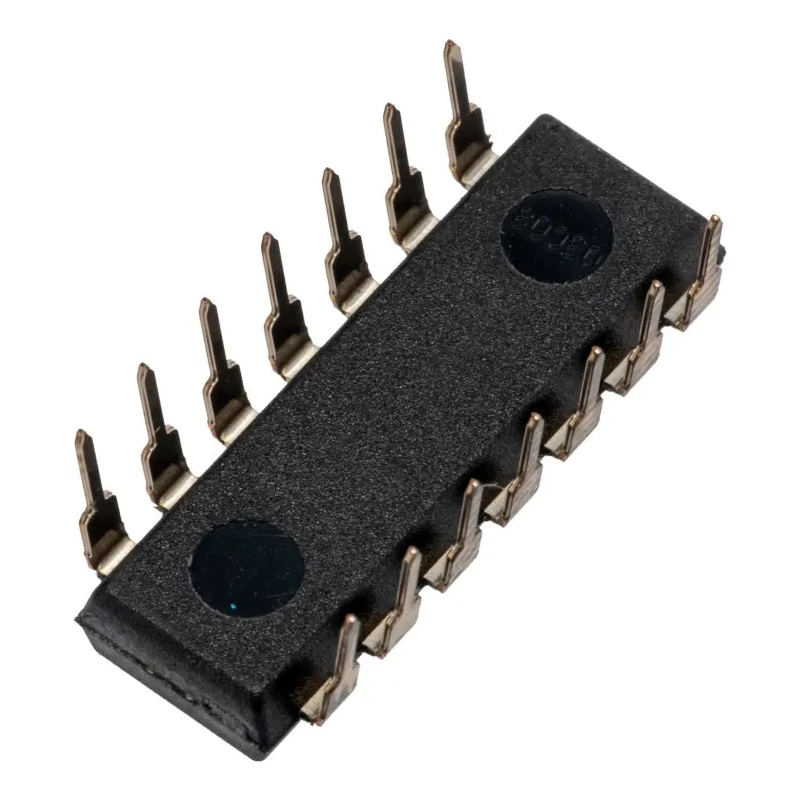

Texas Instruments Operational Amplifier TL074ACN, 4 Channels, 3 MHz Gain Bandwidth, 14-Pin PDIP, 5-15V Supply
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL074ACN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL074 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 7 nA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- Features a wide supply voltage range of 5V to 15V for versatile operation.
- JFET input stage ensures low input bias currents of typically 7 nA.
- Offers high slew rate of 13 V/μs for fast signal response.
- Input offset voltage is typically 7.5 mV for precise amplification.
- Operating temperature range from 0°C to 70°C suitable for standard environments.
- Low total harmonic distortion of 0.003% ensures signal fidelity.
- Package type is PDIP for through-hole mounting convenience.
- Compact dimensions with length 19.3 mm, width 6.35 mm, and height 4.57 mm.
Product Description
Texas Instruments TL074ACN is a quad operational amplifier featuring JFET inputs and bipolar outputs, optimized for a wide range of analog signal processing tasks. It is supplied in a 14-Pin PDIP package designed for through-hole mounting. The device operates over a supply voltage range of 5V to 15V and exhibits a gain bandwidth product of 3 MHz ensuring good frequency response.
The low input bias current of 7 nA and low input offset voltage of 7.5 mV deliver high precision in signal amplification. High slew rate of 13 V/μs allows for fast transient response making it suitable for audio, instrumentation, and active filter applications. It maintains a low total harmonic distortion of 0.003% which preserves signal integrity.
Operating reliably between 0°C and 70°C, TL074ACN is suited for industrial and commercial electronics. Compact physical dimensions allow easy integration into PCB designs. Its low noise performance at 18 nV/√Hz makes it ideal for sensitive analog circuits requiring low interference.
Wide supply voltage range of ±5V to ±15V enhances application flexibility. Four independent amplifier channels in one package. Low offset and bias currents minimize error sources in amplifying signals. High slew rate provides excellent transient response.
Low distortion output ensures clean audio and signal amplification. Compact 14-pin PDIP package supports standard PCB designs. Reliable performance in typical industrial temperature environments. Low noise input for high fidelity signal processing.
Offset current ensures stable operation in precision circuits.
This Operational Amplifier is widely used in industrial, commercial, and laboratory electronic applications including audio equipment, signal conditioning, medical instrumentation, and instrumentation amplifiers. It supports designs requiring high input impedance and low distortion.
For more electronic components and amplifiers, continue browsing the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL074ACN has a gain bandwidth product of 3 MHz, ensuring good frequency response for various applications.
It operates over a supply voltage range of 5V to 15V, providing flexibility for different circuit designs.
This model features four independent amplifier channels in one package, allowing for multiple signal processing tasks.
The typical input bias current is 7 nA, which contributes to its high precision in signal amplification.
The dimensions of this operational amplifier are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The maximum operating temperature for the TL074ACN is 70°C, making it suitable for standard industrial environments.
It has a high slew rate of 13 V/μs, allowing for fast transient response in signal processing applications.
This operational amplifier is supplied in a 14-Pin PDIP package designed for through-hole mounting.
The input offset voltage is typically 7.5 mV, which helps maintain precision in amplification tasks.
The total harmonic distortion is low at 0.003%, ensuring high signal fidelity during amplification.
The input noise level is typically 18 nV/√Hz at 1 kHz, making it suitable for sensitive analog circuits.
It is widely used in audio equipment, signal conditioning, medical instrumentation, and instrumentation amplifiers.
