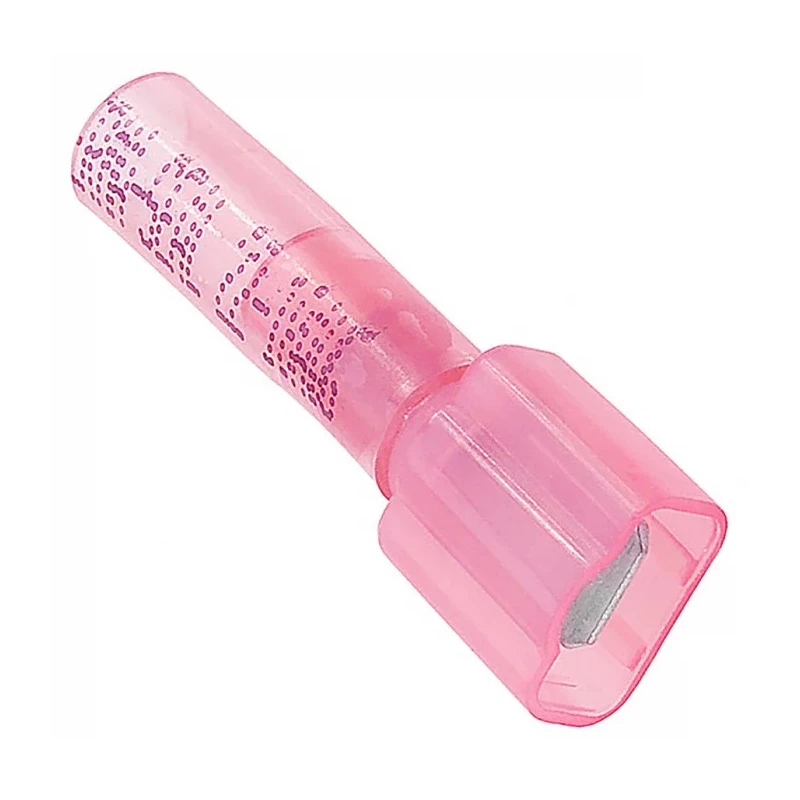

Molex Red Insulated Male Crimp Spade Connector 6.35 x 0.81 mm Tab Size 22 AWG to 18 AWG 19164-0015
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Red |
| Orientation | Straight |
| Gender | Male |
| Insulation | Insulated |
| Overall Length | 40.4mm |
| Contact Material | Brass |
| Series | Perma-Seal 19164 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Zinc Chromate |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Insulated design provides electrical protection and safety.
- Made from brass contact material with zinc chromate plating for corrosion resistance.
- Tab dimensions are 6.35 mm width and 0.81 mm thickness for precise fit.
- Overall length of the connector is 40.4 mm.
- Suitable for male termination and straight orientation in electrical wiring applications.
- Nylon insulation material ensures durability and reliability.
- Designed for wire cross section sizes from 0.25 mm² to 1.5 mm².
- Compliant with Molex Perma-Seal 19164 series standards.
Product Description
Molex 19164-0015 Red Insulated Male Spade Connector is a high-quality crimp terminal designed for reliable electrical connections within wire gauge sizes 22 AWG to 18 AWG. This male Spade Connector features a straight orientation and insulated nylon housing to ensure electrical safety and durability in various industrial and electrical applications. The brass contact material plated with zinc chromate enhances corrosion resistance and conductivity, making it ideal for use in both commercial and industrial electrical wiring setups.
The connector has precise tab dimensions of 6.35 mm width and 0.81 mm thickness, allowing for secure and consistent mating with female terminal counterparts. With an overall length of 40.4 mm, it provides convenient handling and ease of installation during wiring or repair tasks.
Applications include industrial electrical assemblies, automotive wiring harnesses, HVAC systems, and electronic equipment wiring. Its compatibility with 22 AWG to 18 AWG wires, translating to 0.25 mm² to 1.5 mm² conductor sizes, ensures versatility across multiple wiring requirements. The red color coding allows for easy identification in complex wiring diagrams.
This Molex Perma-Seal 19164 series connector meets quality expectations for performance consistency and long-lasting durability in demanding environments. Insulated design provides electrical protection and safety. Made from brass contact material with zinc chromate plating for corrosion resistance.
Tab dimensions are 6.35 mm width and 0.81 mm thickness for precise fit. Overall length of the connector is 40.4 mm. Suitable for male termination and straight orientation in electrical wiring applications. Nylon insulation material ensures durability and reliability.
Designed for wire cross section sizes from 0.25 mm² to 1.5 mm². Compliant with Molex Perma-Seal 19164 series standards. Explore more Molex connectors and wire terminals to optimize your electrical connectivity needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 18 AWG, which corresponds to conductor sizes from 0.25 mm² to 1.5 mm².
The tab dimensions are 6.35 mm in width and 0.81 mm in thickness, ensuring a precise fit with female terminal counterparts.
The overall length of this connector is 40.4 mm, providing convenient handling during installation.
It features a brass contact material with zinc chromate plating for enhanced corrosion resistance, and an insulated nylon housing for durability.
This model utilizes a crimp termination type, suitable for secure electrical connections.
The connector is designed for straight orientation, making it suitable for various wiring applications.
Yes, it features an insulated design that provides electrical protection and safety during use.
This spade connector is part of the Molex Perma-Seal 19164 series, ensuring compliance with specific quality standards.
The connector is red, which allows for easy identification in wiring applications.
The country of origin for this connector is the United States.
It is suitable for use in industrial electrical assemblies, automotive wiring harnesses, HVAC systems, and electronic equipment wiring.
The insulation material used is nylon, which contributes to the reliability of the connector in various environments.
