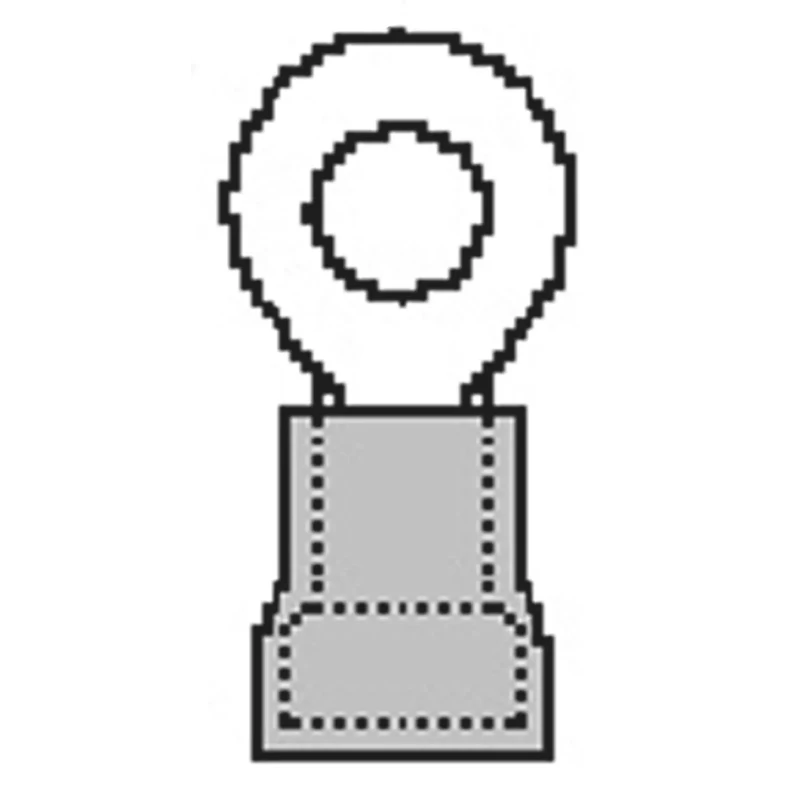

Molex 800 Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size Blue 19073-0085
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 22.48mm |
| Contact Material | Copper |
| Series | 800 |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.18mm |
| Inner Ring Diameter | 4.39mm |
| Stud Size | M4 |
Key Features
- Constructed with copper contact material for excellent conductivity.
- Blue nylon insulation provides electrical insulation and mechanical protection.
- Tin-plated contact ensures corrosion resistance and longevity.
- Designed with seamless barrel to facilitate easier crimping and rotation in crimping jaws.
- Overall length measures 22.48mm for compact installation.
- Outer ring diameter is 8.18mm and inner ring diameter is 4.39mm for secure stud fitment.
- Thickness of terminal is 0.79mm to maintain mechanical strength.
- Compatible with wire size ranging from 16 AWG (1mm²) to 14 AWG (2.5mm²).
Product Description
Molex 19073-0085 800 series insulated ring terminal with M4 stud size and nylon insulation is engineered for robust electrical connections in industrial and electronic applications.
This ring terminal features a seamless barrel design which simplifies crimping by allowing the barrel to rotate within the crimping jaws, reducing installation effort and enhancing connection reliability.
The contact is made of copper with tin plating to ensure superior conductivity and resistance to corrosion, extending service life.
With an overall length of 22.48mm, outer ring diameter of 8.18mm, inner ring diameter of 4.39mm, and thickness of 0.79mm, it provides mechanical robustness while fitting securely on M4 stud sizes.
The blue halogen-free nylon insulation safeguards against electrical shorts and mechanical damage, suitable for wire sizes from 16 AWG (1mm²) to 14 AWG (2.5mm²). Constructed with copper contact material for excellent conductivity.
Blue nylon insulation provides electrical insulation and mechanical protection. Tin-plated contact ensures corrosion resistance and longevity. Seamless barrel design facilitates easier and reliable crimping. Compact overall length of 22.48mm for tight space applications.
Designed for M4 stud size with precise ring diameters. Terminal thickness of 0.79mm ensures durability. Suitable for wire sizes 16 AWG to 14 AWG for flexible use. Halogen-free nylon insulation enhances safety and environmental compliance.
Made in the United States to stringent quality standards. This insulated Ring Terminal is ideal for electrical wiring in industrial machines, power connectors, automotive, and electronic devices. Discover more from Molex and explore our wide range of reliable wire terminals and splices at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 16 AWG (1mm²) to 14 AWG (2.5mm²).
The overall length measures 22.48mm, making it suitable for compact installations.
The outer ring diameter is 8.18mm, and the inner ring diameter is 4.39mm, designed for secure fitment on M4 studs.
The contact material is copper, which provides excellent conductivity and is tin-plated for corrosion resistance.
It features blue nylon insulation, which provides electrical insulation and mechanical protection.
The thickness of the terminal is 0.79mm, ensuring mechanical strength.
The seamless barrel design facilitates easier crimping and allows the barrel to rotate within the crimping jaws, enhancing connection reliability.
This insulated ring terminal is made in the United States to stringent quality standards.
This product belongs to the Molex 800 series of insulated ring terminals.
It is designed for electrical wiring in industrial machines, power connectors, automotive, and electronic devices.
The tin-plated contact ensures corrosion resistance and enhances the longevity of the terminal.
The insulation of this terminal is blue, which also indicates its halogen-free composition for enhanced safety.
