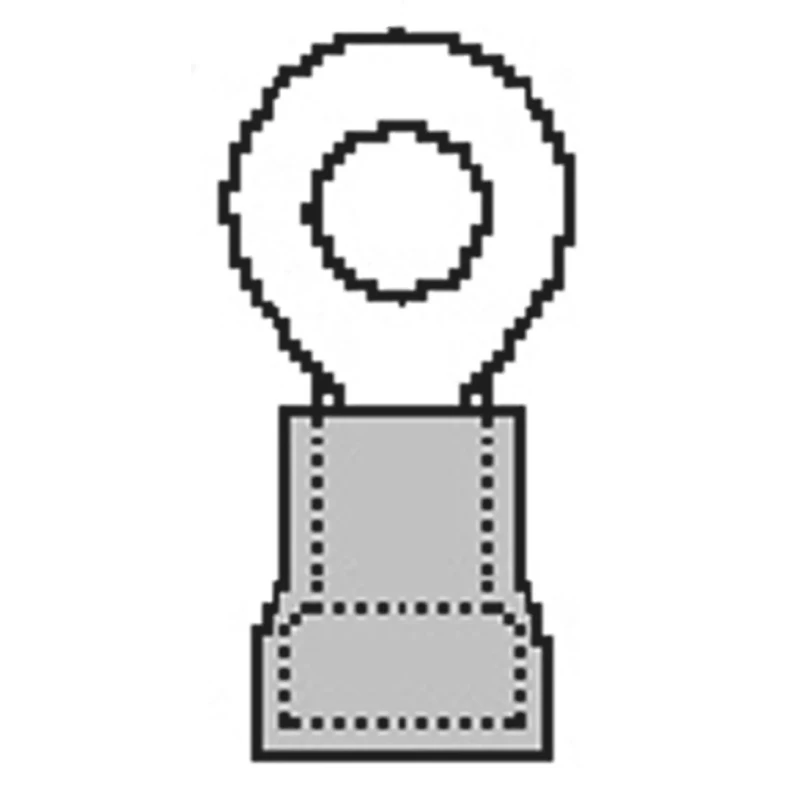

Molex 800 Insulated Nylon Ring Terminal M5 Stud Size 16 AWG to 14 AWG Blue 19073-0087

Molex 19073-0087 insulated ring terminal is a high-quality electrical connector designed for secure and durable wire termination in industrial and electronic applications. Featuring a halogen-free nylon insulation, this ring terminal provides excellent electrical insulation and mechanical protection, ensuring safety and reliability.

The terminal is constructed using copper with tin plating on the contacts, enhancing corrosion resistance and conductivity. The tin plated brass ferrule further reinforces the terminal's durability and lifespan.

The seamless barrel design facilitates smoother crimping operations by allowing the barrel to rotate within crimping jaws, which improves crimp quality and consistency.

Designed to accommodate wire sizes ranging from 16 AWG minimum to 14 AWG maximum, this ring terminal supports cross-sectional areas between 1 mm² and 2.5 mm². It is intended to be used with an M5 stud size, making it compatible with a wide range of electrical assemblies.

The dimensions include an outer ring diameter of 8.18 mm, an inner ring diameter of 5.03 mm, thickness of 0.79 mm, and an overall length of 22.48 mm. The product is identified by its distinct blue color code for easy wire size recognition.

This ring terminal is insulated with halogen-free nylon material ensuring electrical safety. Made with copper contact material and tin plating for corrosion resistance. The seamless barrel design allows easier and more reliable crimping by rotating in crimping jaws.

Suitable for wire sizes from 16 AWG minimum to 14 AWG maximum, accommodating 1 to 2.5 mm² cross-sectional area. Features a 5 mm stud size and blue color code for visual identification. Contact thickness is 0.79 mm, with an overall length of 22.48 mm.

Outer ring diameter measures 8.18 mm and inner ring diameter is 5.03 mm. This product is manufactured in the United States and conforms to no specific standards or approvals.

This Molex insulated Ring Terminal is suitable for various electronics, electrical assembly, manufacturing, power supply, and industrial environments requiring secure wire connections with reliable conductivity and protection.
