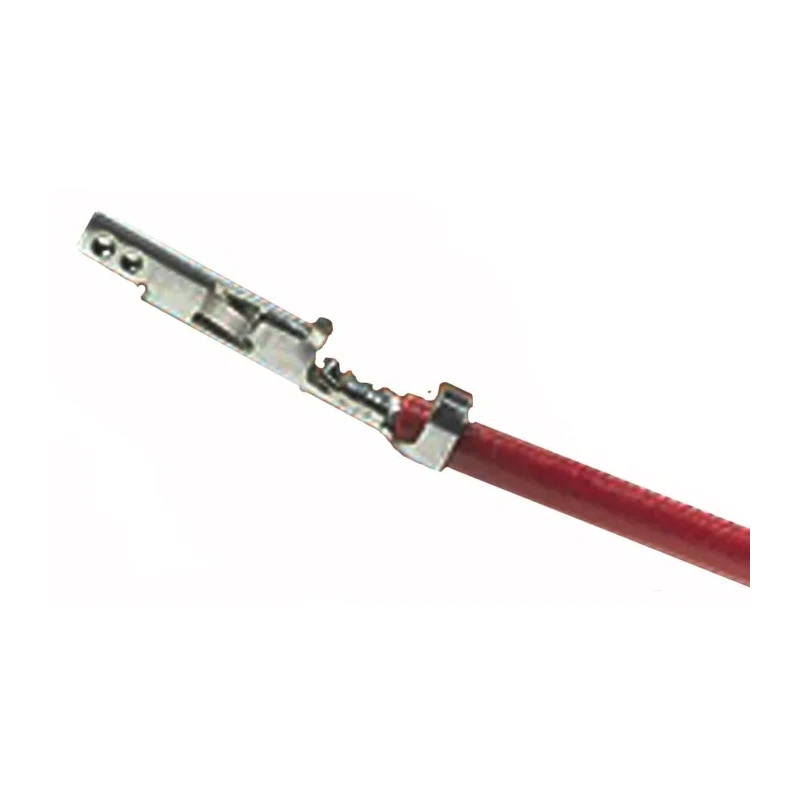

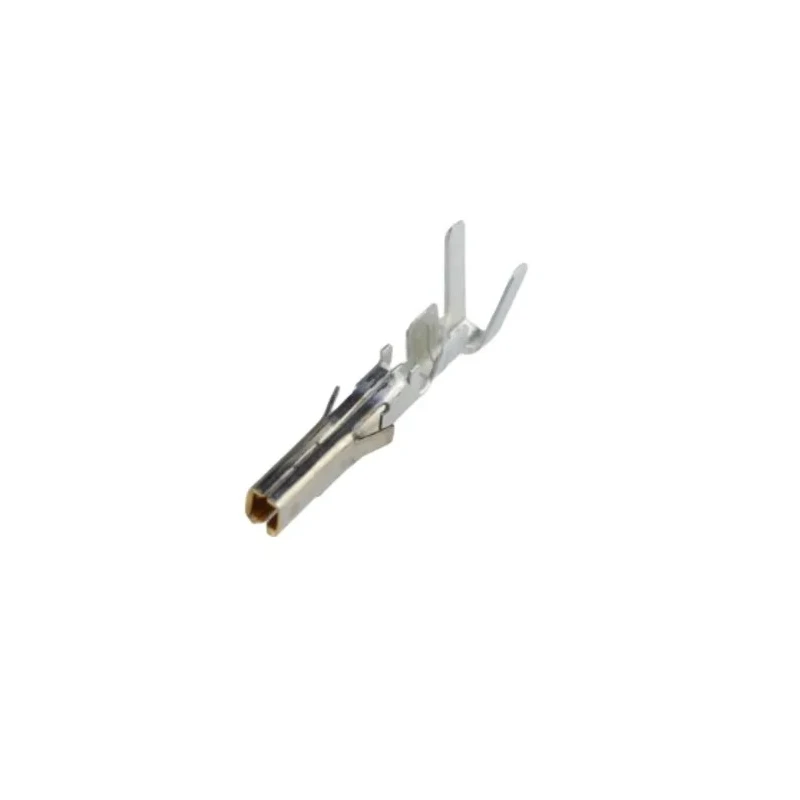

Molex 5556 Series Female Crimp Terminal 24 AWG Min Crimp 18 AWG Max, Brass Contact with Gold Plating 39-00-0074
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- The terminal supports current up to 9A, ensuring reliable electrical performance.
- Constructed with brass contact material plated with gold for excellent conductivity and corrosion resistance.
- Designed for crimp termination type, providing quick and secure installation.
- Operates reliably in temperature range from -40°C to 105°C, suitable for demanding environments.
- Features a maximum contact resistance of 10mΩ, maintaining signal integrity.
- Comes in a pack of 25 terminals, making it ideal for multiple installations or projects.
- Compatible with Mini-Fit Jr connector series 5556 connectors for versatile use.
- Manufactured in the United States ensuring high-quality standards.
Product Description
Molex 39-00-0074 female crimp terminal is engineered for robust electrical connections with Mini-Fit Jr connector housings, supporting wire sizes from 24 AWG to 18 AWG. This 5556 Series terminal carries currents up to 9A, making it suitable for a wide range of electronic and electrical applications.
Its contact is made of highly conductive brass, plated with gold to ensure superior conductivity and resistance to corrosion over long-term usage. The crimp termination method allows for easy and secure installation, reducing assembly time while ensuring reliable mechanical and electrical connections.
The terminal performs effectively within a wide temperature range from -40°C to 105°C, making it ideal for industrial, telecommunications, automotive, and consumer electronic applications. The maximum contact resistance of 10 milliohms minimizes signal loss and maintains connection quality.
Packaged in a quantity of 25, this crimp terminal provides sufficient units for small to medium-scale projects. The terminal is designed to comply with no specific certifications but meets industry standards for connector reliability and performance.
Applications for this terminal include computer building, telecommunications networks, lighting systems, and other electrical assemblies requiring a dependable female crimp contact. Manufactured in the United States, it demonstrates consistent quality and manufacturing excellence.
Supports current up to 9A for reliable power handling. Gold-plated brass contact provides excellent conductivity and corrosion resistance. Crimp termination ensures secure and efficient installation. Wide operating temperature range from -40°C to 105°C suits harsh environments.
Low maximum contact resistance of 10mΩ for minimal signal loss. Pack of 25 terminals ensures ample quantity for project needs. Explore more Molex Crimp Terminals and connectors on EnvMart for diverse electrical component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current of 9A, ensuring reliable electrical performance for various applications.
It is compatible with wire sizes ranging from 24 AWG to 18 AWG, accommodating various electrical connections.
The terminal operates reliably within a temperature range of -40°C to 105°C, suitable for demanding environments.
It features a brass contact material that is plated with gold, providing excellent conductivity and corrosion resistance.
This model uses a crimp termination type, which allows for quick and secure installation.
The maximum contact resistance is 10 milliohms, which helps in maintaining signal integrity.
Each pack contains 25 terminals, making it suitable for multiple installations or projects.
It is designed for use with Mini-Fit Jr connector housings, specifically the 5556 series.
It is suitable for applications in computer building, telecommunications networks, lighting systems, and other electrical assemblies.
This terminal is manufactured in the United States, ensuring adherence to high-quality standards.
This model is a female crimp terminal, designed for secure connections in various electrical setups.
This terminal belongs to the Molex 5556 series, which is known for its reliable electrical connections.
