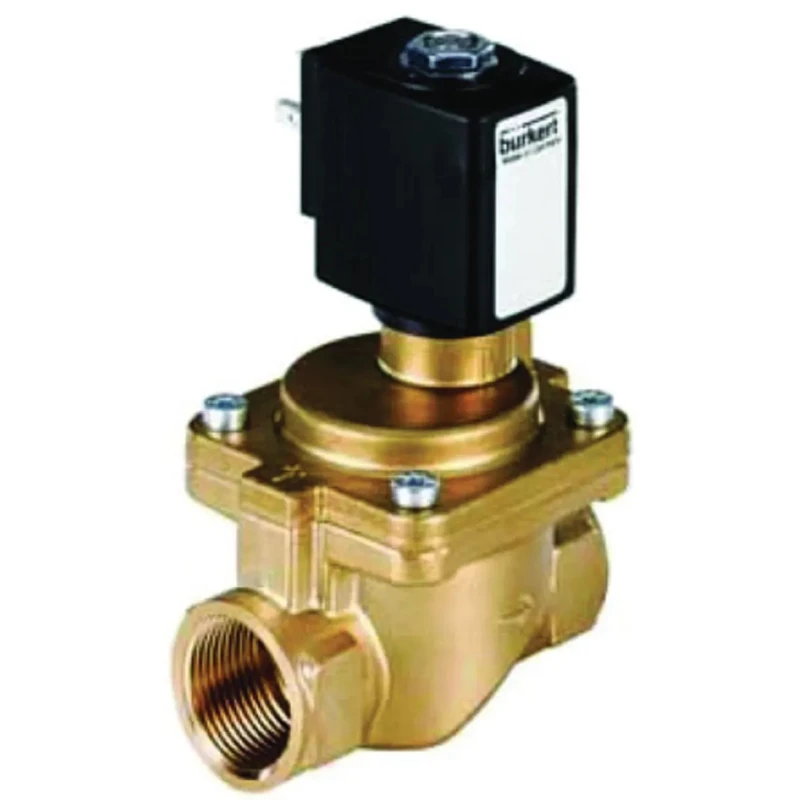

Burkert 2 Port Normally Open Brass Body Solenoid Valve 230V AC 25mm Orifice 16 Bar 221942

Burkert 221942 is a 2 port normally open solenoid valve constructed with a robust brass body designed for industrial applications involving fluids such as compressed air and water. Operating at 230V AC, this valve offers a reliable and compact solution for fluid power systems.

The valve features a 25mm orifice diameter and supports a maximum operating pressure of 16 bar with temperatures ranging from -10°C to 80°C, enabling use in diverse environments including heating, refrigeration, and water treatment plants. The servo assist mechanism ensures smooth and efficient valve operation with maximum opening and closing times of 4 seconds.

Certified to DIN EN 50930-6, KTW W270, EPDM, and DIN EN 175301-803 Form A standards, this valve meets high safety and performance benchmarks. Its explosion-proof ATEX-certified variants make it suitable for hazardous area installations, adhering to strict safety requirements.

The valve combines quiet operation and a water hammer free design within a compact installation length. Its IP65 rating with cable protection enhances durability by protecting against dust and water ingress. The valve is fitted with NPT / Rc threaded connection ports to accommodate varied piping configurations.

This solenoid valve is ideal for industrial, laboratory, HVAC, manufacturing, and water treatment applications where precision fluid control is required. Its flow factor Kv of 12 m³/h allows efficient and consistent fluid throughput.

Features a brass body material ensuring durability and corrosion resistance. Operates with a maximum pressure of 16 bar and temperature range from -10°C to 80°C. Incorporates servo assist technology for reliable valve actuation.

Complies with DIN EN 50930-6, KTW W270, EPDM, and DIN EN 175301-803 Form A standards. Explosion proof certified including ATEX compliant versions for hazardous areas. Maximum opening and closing times are 4 seconds to ensure responsive control.

Flow coefficient Kv is 12 m³/h allowing efficient fluid handling. Designed for use in heating, refrigeration, water treatment, compressed air, and vacuum systems. Compact installation length with IP65 rating when cable protection is used.

Equipped with NPT / Rc threaded connection ports for versatile installation. Explore more Burkert Solenoid Valves and industrial valve solutions in the EnvMart category to find compatible components for your fluid control needs.
