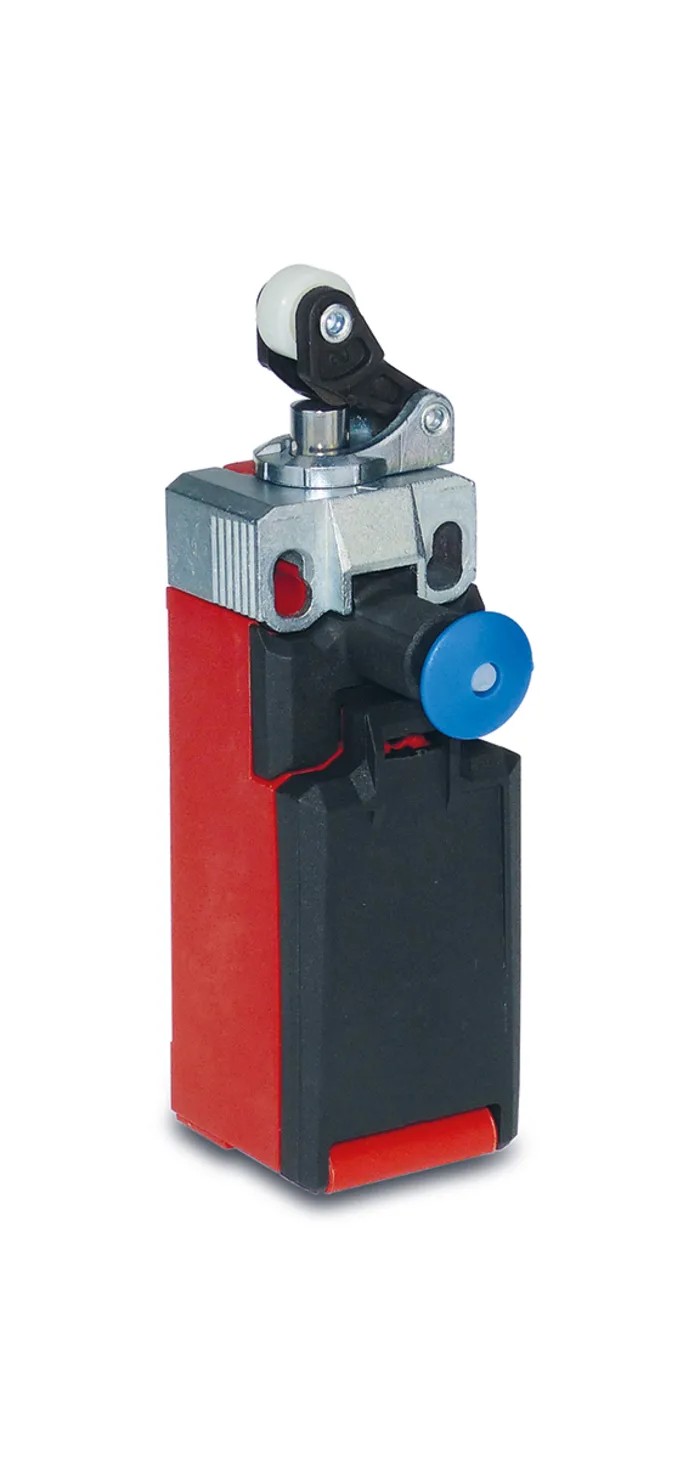

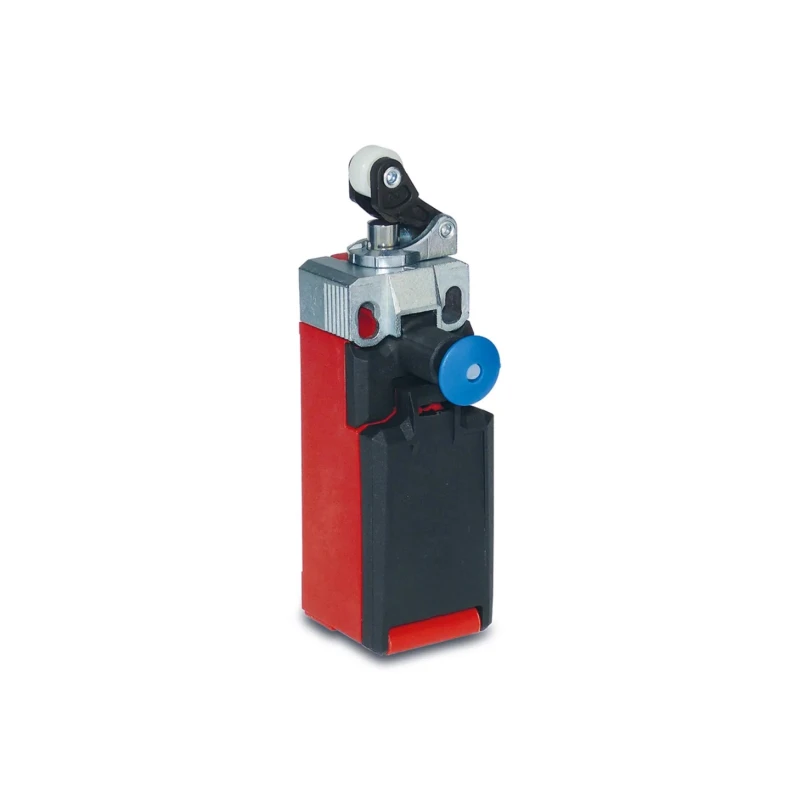

Bernstein AG I81 Series Roller Lever Limit Switch, DPST, IP66 IP67, Fibreglass Reinforced Thermoplastic Housing 6083000244
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Bernstein AG |
| Length | 31mm |
| Depth | 30.3mm |
| IP Rating | IP66, IP67 |
| Width | 105.5mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | I81 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Screw |
| Contact Configuration | DPST |
| Actuator Type | Roller Lever |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -30°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Operating Force | 10N |
| Mechanical Life | 100000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Mechanical Service Life | 100.000 switching cycles |
| Integrated latch function | After actuation manually reset by pulling the blue button necessary |
Key Features
- The switch has a DPST contact configuration suited for various industrial applications.
- It features a fibreglass reinforced thermoplastic housing for durability.
- The actuator type is a roller lever with slow action contacts.
- Designed for 240V AC voltage and 24V DC switching voltage.
- Mechanical life is rated at 100,000 switching cycles, ensuring longevity.
- IP66 and IP67 ratings provide dust-tight and water immersion protection.
- Integrated latch function requires manual reset for controlled operation.
- Mounting is secured with a screw and metal mounting clip for stability.
Product Description
Bernstein AG 6083000244 Roller Lever Limit Switch is a highly reliable industrial-grade electrical limit switch designed to operate at 240V AC and 24V DC. The device features a DPST (Double Pole Single Throw) contact configuration with slow action contacts, suitable for precise switching control in automation and machinery applications.
Encased in a fibreglass reinforced thermoplastic housing, the switch offers excellent mechanical strength and chemical resistance, meeting IP66 and IP67 standards for protection against dust ingress and temporary water immersion. This makes it ideal for demanding industrial environments including manufacturing, electrical automation, and control systems.
The roller lever actuator type facilitates smooth mechanical operation, with adjustable actuator elements allowing repositioning in 45° increments to suit specific installation needs. The integrated latch function adds safety, requiring manual reset by pulling the blue button after actuation, preventing accidental reactivation.
Designed for long service life, the switch supports up to 100,000 mechanical switching cycles. It includes a metal actuator locking mechanism and a metal mounting clip that ensures durable and secure installation. The hinged snap-on cover protects the internal mechanism while allowing easy access for maintenance.
Operating under a wide temperature range of -30°C to 75°C, this limit switch suits varied industrial and outdoor applications. The device is mounted using screws and features an M20 conduit entry for wiring, providing compatibility with standard industrial cabling systems.
The modular design enables flexible configuration to meet individual customer requirements. High reliability is maintained even at low currents as low as 1 mA. Tool-free turning and replacement of actuator elements enhances maintainability.
Adjustable and rotatable lever options provide installation versatility. Complies with RoHS standards for environmental safety.
This limit switch from Bernstein AG is manufactured in Germany, ensuring high quality and precision engineering. It is suited for applications in industrial automation, manufacturing machinery, process control, and electrical equipment where dependable limit switching is essential.
Explore the wide range of Limit Switches and automation products on EnvMart for robust industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The limit switch features a DPST (Double Pole Single Throw) contact configuration, suitable for various industrial applications.
It has IP66 and IP67 ratings, providing protection against dust ingress and temporary water immersion.
The maximum operating temperature is 75°C, allowing it to function effectively in high-temperature environments.
This model is designed for 240V AC and 24V DC switching voltage.
The mechanical life of this limit switch is rated at 100,000 switching cycles, ensuring longevity in operation.
It is mounted using screws and includes a metal mounting clip for stability during installation.
The housing is made from fibreglass reinforced thermoplastic, providing mechanical strength and chemical resistance.
It uses a roller lever actuator type, which facilitates smooth mechanical operation.
The minimum operating temperature is -30°C, making it suitable for low-temperature environments.
The integrated latch function requires manual reset by pulling the blue button after actuation, preventing accidental reactivation.
The switch features an M20 conduit entry for wiring, compatible with standard industrial cabling systems.
Yes, it complies with RoHS standards for environmental safety.
