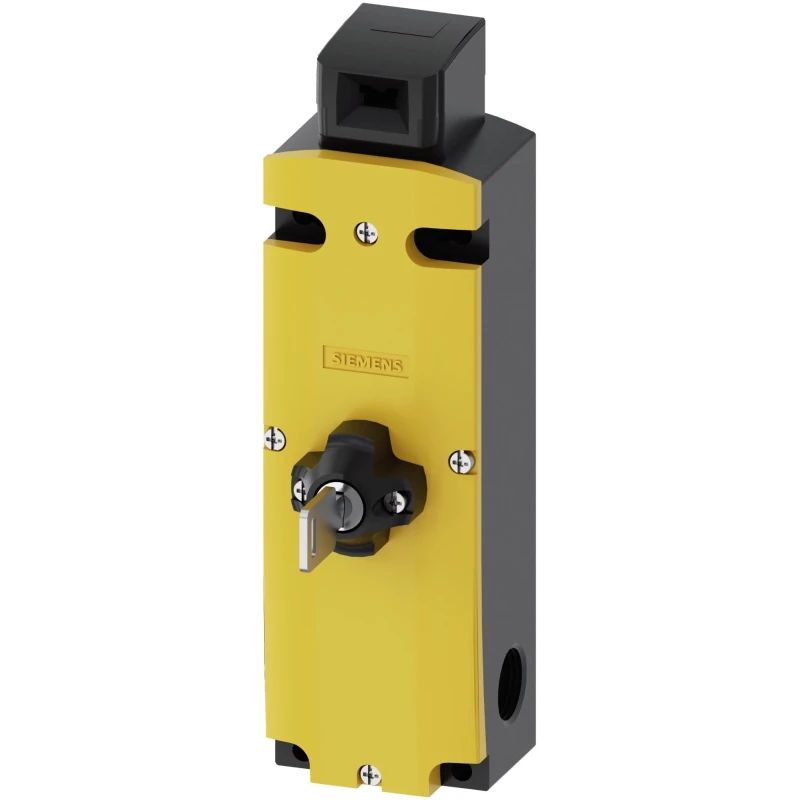

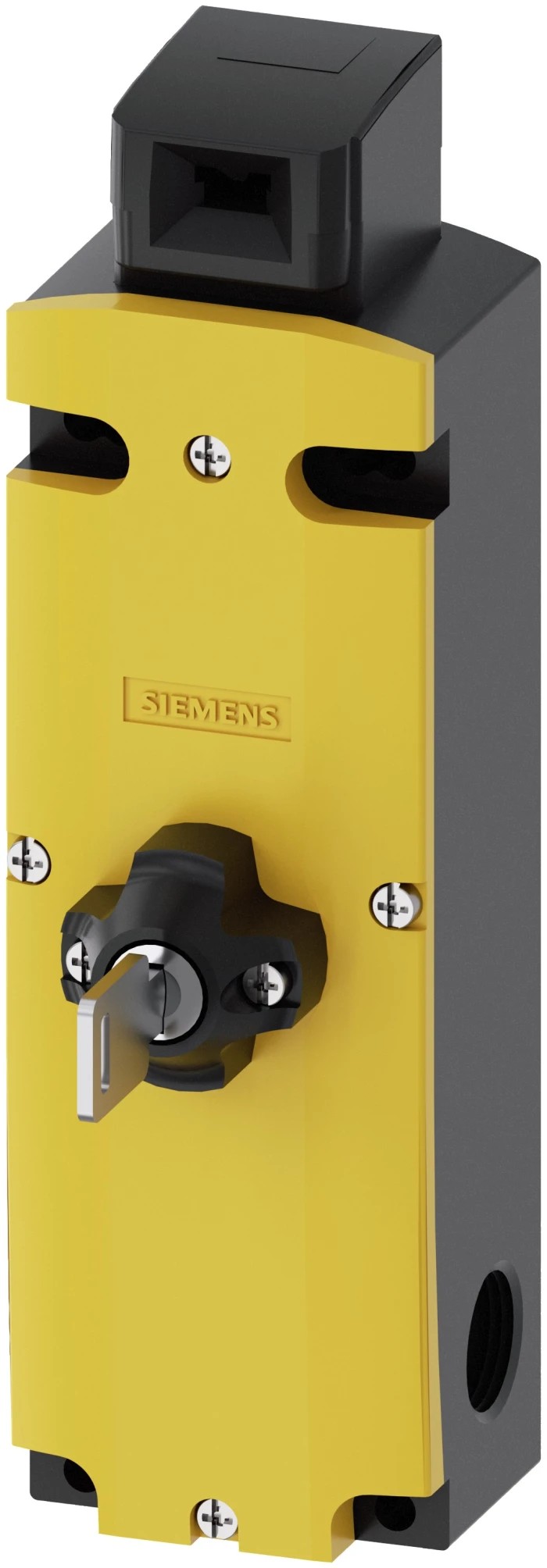

Siemens 3SE5 Series Solenoid Interlock Switch with Power to Lock Actuator Included, 230V AC, 3.5W, Plastic 3SE5322-0SE23
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 3.5W |
| Brand | Siemens |
| Length | 54mm |
| Model | 3SE5322-0SE23 |
| Depth | 184.1mm |
| IP Rating | IP67, IP66 |
| Width | 43.8mm |
| Housing Material | Plastic |
| Series | 3SE5 |
| Actuator Type | Standard Coded |
| Terminal type | Screw |
| Supply Voltage | 230V ac |
| Standards/Approvals | CSA, VDE, UL |
| Contact AC Voltage | 230V ac |
| Contact Current | 1.5A |
| Safety Contacts | 1 NO |
| Conduit Entry | M20 |
| in mind, greatly reduces the load on the data line | contact monitoring and magnet control draw on |
| A number of additional release mechanisms to handle any application | auxiliary release mechanism, lock release, escape release and emergency release |
Key Features
- Includes power to lock actuator for enhanced security.
- Features a plastic housing with IP66 and IP67 protection ratings.
- Incorporates 1 normally open safety contact for reliable monitoring.
- Designed to meet CSA, VDE, and UL standards for safety compliance.
- Equipped with screw type terminals and M20 conduit entry.
- Manual auxiliary release mechanism available for access during power failure or installation.
- Suitable for harsh industrial environments with high locking forces available.
- Provides optical status monitoring with LED status display.
Product Description
Siemens 3SE5322-0SE23 model Solenoid Interlock Switch with power to lock actuator included operates at 230V AC with a power consumption of 3.5W. It is designed for secure locking of protective doors on machinery, ensuring safety during shutdown processes.
The switch incorporates a plastic housing that provides IP66 and IP67 ratings, protecting it effectively against dust and water ingress, making it suitable for demanding industrial environments. It features 1 normally open (NO) safety contact, screw terminal connections, and a conduit entry of M20 size, complying with internationally recognized standards including CSA, VDE, and UL.
Its integrated electromagnetic tumbler and auxiliary magnet ensure the door remains locked until a release signal is received, thereby preventing unauthorized access during operation. The manual auxiliary release mechanism allows door access even during power failures or maintenance.
The actuator heads can be rotated in 4 increments of 90 degrees and are accessible from five approach directions, enhancing installation flexibility. The switch supports additional release mechanisms such as lock release, escape release, and emergency release to suit varied safety requirements.
Equipped with LED status indicators for optical monitoring and featuring high locking forces on metal and plastic versions, this device is engineered for robust and reliable use in industrial automation, manufacturing safety, and electrical control panels.
Includes power to lock actuator for enhanced security. Plastic housing with IP66 and IP67 protection. One normally open safety contact for secure switching. Complies with CSA, VDE, and UL standards. Screw terminal type and M20 conduit entry.
Manual auxiliary release for accessibility during power outages. Rotatable actuator heads and multiple approach directions. Supports auxiliary, lock, escape, and emergency release mechanisms. LED status indicators for optical monitoring.
Suitable for industrial, manufacturing, and electrical panel safety applications. Explore other Siemens products and related safety interlock switches in the EnvMart catalog for comprehensive industrial safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power consumption of this model is 3.5W.
It operates at a supply voltage of 230V AC.
The dimensions are 54mm in length, 43.8mm in width, and 184.1mm in depth.
It features a plastic housing that provides IP66 and IP67 protection ratings.
This switch incorporates 1 normally open (NO) safety contact.
The conduit entry for this model is M20 size.
It complies with CSA, VDE, and UL standards for safety compliance.
It supports auxiliary release, lock release, escape release, and emergency release mechanisms.
This model uses a standard coded actuator type.
Yes, it includes a manual auxiliary release mechanism for access during power failures or maintenance.
The contact current rating is 1.5A.
This model is suitable for industrial, manufacturing, and electrical panel safety applications.
