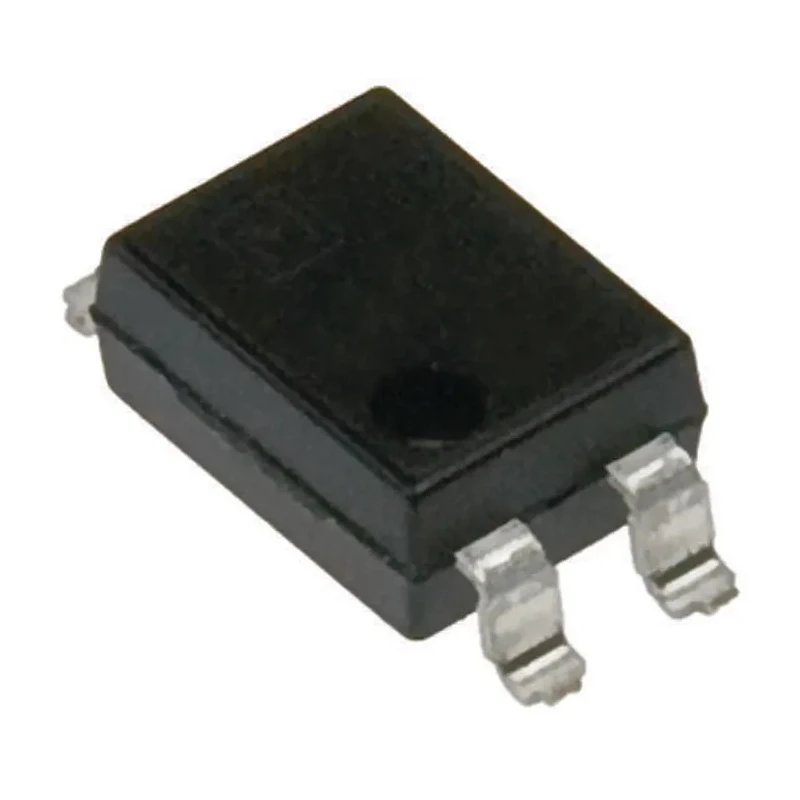

Panasonic Solid State Relay, 130 mA Load Current, 350 V Load, Through Hole Mount, 5V DC Control AQY280EHA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 2.7mm |
| Length | 6.4mm |
| Model | AQY280EHA |
| Width | 5mm |
| Mount Type | Through Hole |
| Output type | Photo MOSFET |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 130mA |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 350V |
| Minimum Control Voltage | 1.5V |
| Maximum Control Voltage | 5V dc |
| Off State Leakage Current | 1μA |
| On State Resistance | 2.5Ω |
Key Features
- Designed for through hole mounting applications.
- Features low off-state leakage current of 1 μA for efficient switching.
- Utilizes Photo MOSFET output type enhancing switching performance.
- Operates within temperature range of -40°C to 85°C for robust use.
- Has low on-state resistance of 2.5Ω reducing power loss.
- Supports AC/DC switching functionality for versatile applications.
- Compact dimensions measuring 6.4mm length, 5mm width, and 2.7mm height.
- Complies with RoHS standards ensuring environmental compliance.
Product Description
Panasonic AQY280EHA Solid State Relay is designed to control low-level analog signals with a maximum load current of 130 mA and maximum load voltage of 350 V. It utilizes a Photo MOSFET output type and supports through hole mounting, making it ideal for various industrial and automation systems requiring reliable switching.
Its low off-state leakage current of 1 μA and low on-state resistance of 2.5Ω contribute to efficient operation and reduced power consumption. Operating temperature ranges from -40°C to 85°C, ensuring durability in demanding environments.
The relay supports SPST (Single Pole Single Throw) contact configuration and AC/DC switching functionality for flexible control of electrical loads. The compact form factor, with a length of 6.4 mm, width of 5 mm, and height of 2.7 mm, allows easy integration onto circuit boards using through hole mount technique.
Compliant with RoHS standards, the AQY280EHA provides an environmentally friendly solution while meeting industrial reliability expectations. Designed for through hole mounting applications. Features low off-state leakage current of 1 μA for efficient switching.
Utilizes Photo MOSFET output type enhancing switching performance. Operates within temperature range of -40°C to 85°C for robust use. Has low on-state resistance of 2.5Ω reducing power loss. Supports AC/DC switching functionality for versatile applications.
Compact dimensions measuring 6.4mm length, 5mm width, and 2.7mm height. Complies with RoHS standards ensuring environmental compliance. This solid state relay is widely used in electronics, industrial automation, signal conditioning, and control systems requiring precise and reliable switching performance.
Explore more Solid State Relays and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 130 mA.
This solid state relay has a maximum load voltage rating of 350 V.
It utilizes a Photo MOSFET output type, enhancing its switching performance.
The maximum control voltage for this relay is 5 V DC, with a minimum of 1.5 V.
It operates within a temperature range of -40°C to 85°C.
The on-state resistance is 2.5Ω, which helps reduce power loss during operation.
This model is designed for through hole mounting applications.
The relay features an SPST (Single Pole Single Throw) contact configuration.
The off-state leakage current is 1 μA, contributing to its efficient switching.
Yes, it supports AC/DC switching functionality for versatile applications.
The dimensions are 6.4 mm in length, 5 mm in width, and 2.7 mm in height.
Yes, it complies with RoHS standards, ensuring environmental compliance.
