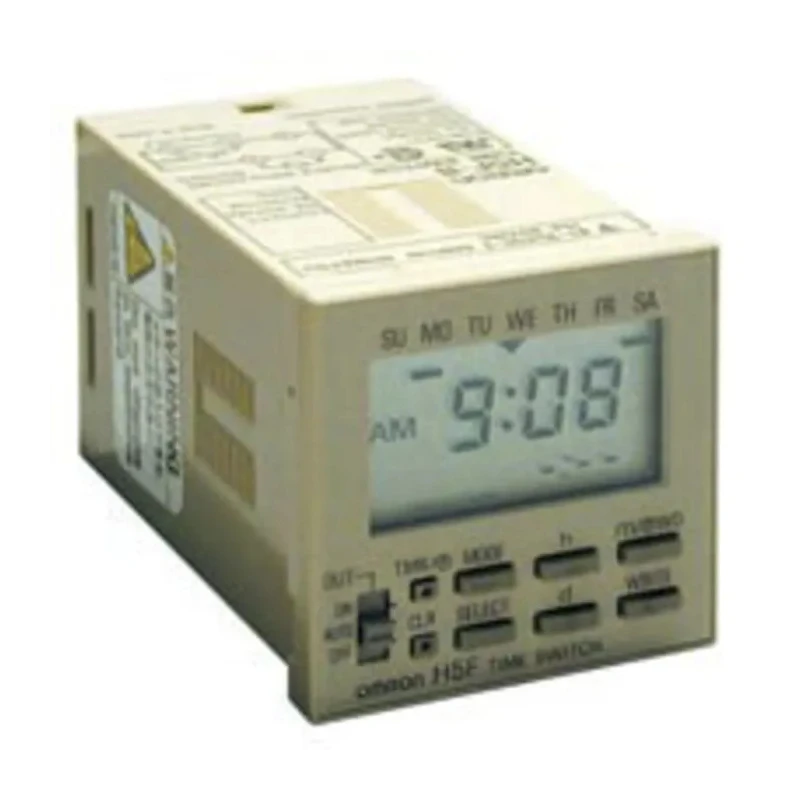

Omron Panel Timer Relay 1-Contact SPST Switch 12 V DC, 100/240 V AC, 15A Contact Current, 24 h to 7 Days Range ON/OFF H5F-B

Omron H5F-B Panel Timer Relay is a precision timing device designed for integration into control panels of industrial environments requiring scheduled electrical switching.

Featuring a single-pole single-throw (SPST) contact configuration, it supports high current switching of up to 15A and can handle switching voltages up to 250V, making it suitable for a wide range of electrical loads.

Its dual timer function capability allows it to operate on adjustable timing ranges from 24 hours to 7 days, offering flexible automation for daily or weekly control tasks. The relay accepts multiple supply voltages including 12 V DC and 100 to 240 V AC, which enhances its application versatility across different systems.

The device employs robust screw terminals for reliable wiring and is designed specifically for panel mounting, fitting into standard cut-outs and ensuring ease of installation within switchboards or control cabinets.

Constructed with an IP54F rating, it is protected against dust ingress and water splashing, which ensures durability in demanding industrial or commercial settings.

Certified with a comprehensive list of international standards such as EN61000 series and UL508, the H5F-B ensures compliance with safety, electromagnetic compatibility, and performance requirements.

Common applications include timed control of industrial lighting, scheduled HVAC system operation, pump cycling for irrigation or water treatment, and shift-based machinery start and stop routines.

This timer relay is an essential component for process sequencing and reliable automated control within manufacturing, water management, and building automation systems. This timer relay supports a switching voltage up to 250V and contact current of 15A.

It operates with ON/OFF delay mode and provides two timer functions for versatile control. The relay features an IP54F rating for protection against dust and splashing water. Screw terminal type ensures secure and simple panel wiring.

Designed for panel mounting with compact dimensions of 83.7mm height, 48mm width, and 48mm length. Operates reliably within an ambient temperature range of -10°C to 55°C. Complies with international safety and electromagnetic compatibility standards including UL508 and EN61010-1.

Ideal for industrial control applications like lighting circuits, HVAC systems, pump cycling, and machinery scheduling. Discover comprehensive ranges of Timer Relays and automation components in the EnvMart catalog for industrial, electrical, and automation solutions.
