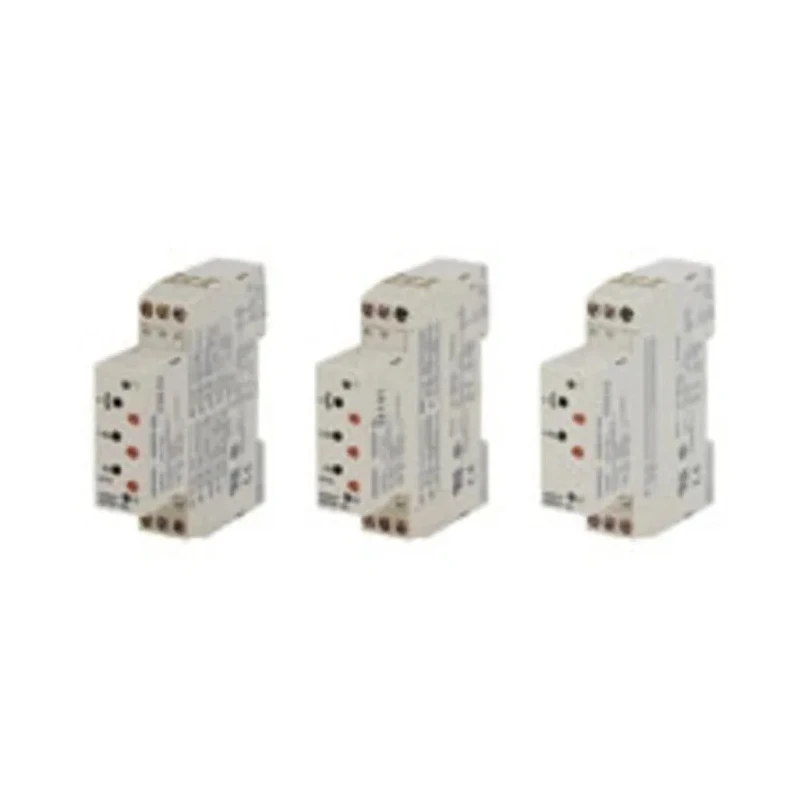

Omron H3DS Series DIN Rail Timer Relay, 24 to 48 V dc 230 V ac, 24 V ac, 0.1 s to 120 h, Multifunction SPDT Contact H3DS
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 74mm |
| Function | Offset Double Ring End, Timer, Star-Delta |
| Length | 17.5mm |
| Model | H3DS |
| IP Rating | IP20, IP30 |
| Mode | ON Delay |
| Width | 80mm |
| Mount Type | DIN Rail |
| Series | H3DS |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 s to 120 h |
| Terminal type | Screw |
| Standards/Approvals | DIN 43880, UL, CE, CSA |
| Number of Timer Functions | Multifunction |
| Supply DC Voltage | 24 to 48 V dc |
| Timing Adjustment | Dial |
| Supply AC Voltage | 230, 24V ac |
Key Features
- Supports a supply voltage range of 24 to 48 V dc and 24/230 V ac for flexible installation.
- SPDT (single-pole double-throw) contact configuration enables reliable single changeover switching.
- Dial-adjustable timing for straightforward on-site setting and tuning.
- Conforms to industrial standards including DIN 43880, UL, CE, and CSA ensuring safety and quality.
- Rated for operating temperatures from -10°C to 55°C, suitable for typical industrial environments.
- Mounts easily on DIN rails, allowing quick installation and removal in electrical panels.
- Equipped with screw terminals for secure and simple wiring connections.
- Ingress protection ratings of IP20 and IP30 provide options for cabinet-mounted applications.
Product Description
The Omron H3DS Series DIN Rail Timer Relay is a multifunction timing device designed for industrial and automation control panels. It supports a wide voltage range including 24 to 48 V dc and 24/230 V ac, enabling use across varied electrical systems. The timer relay features a flexible time range from 0.1 seconds up to 120 hours, providing exceptional adaptability for many timing and sequencing applications.
This model incorporates a SPDT contact configuration for single changeover switching, making it suitable for diverse control tasks such as offset double ring end timing and star-delta motor starting sequences.
The device mounts directly onto standard DIN rails, which facilitates rapid installation and ease of removal during panel maintenance or upgrades. Its dial-adjustable timer enables rapid, manual tuning to fine-tune timing parameters right on site.
Designed to operate reliably in temperatures from -10°C to 55°C, this timer relay is suitable for typical indoor industrial environments and carries multiple international approvals including DIN 43880, UL, CE, and CSA - assuring compliance with safety and quality standards.
Wiring connections are provided via secure screw terminals, supporting quick and reliable electrical interfacing. Options for IP20 and IP30 ingress protection ratings allow this timer relay to be used safely within protected enclosures.
The Omron H3DS Timer Relay finds applications in motor start sequencing for star-delta motors, general purpose delay and sequencing in control panels, integration with PLC auxiliary timing and interlocking functions, and phased machine start-up to reduce startup current spikes.
Supports a supply voltage range of 24 to 48 V dc and 24/230 V ac for flexible installation. SPDT contact configuration allows reliable single changeover switching. Dial-adjustable timing enables straightforward on-site tuning.
Mounts easily to standard DIN rails for quick installation and maintenance. Rated for operation from -10°C to 55°C, suitable for typical industrial environments. Complies with DIN 43880, UL, CE, and CSA standards. Screw terminal connections provide secure wiring options.
Available with IP20 and IP30 ingress protection classifications. Ideal for motor start sequencing, PLC timing, and phased machine startups. Explore EnvMart's selection of Omron industrial automation components for high quality and reliable control panel solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage supply range of 24 to 48 V dc and 24/230 V ac, allowing for flexible installation across various electrical systems.
The dimensions of the H3DS timer relay are 74 mm in height, 80 mm in width, and 17.5 mm in length.
This model features a timing range from 0.1 seconds up to 120 hours, making it adaptable for various timing applications.
It utilizes an SPDT (single-pole double-throw) contact configuration, which allows for reliable single changeover switching.
It is rated for operation in temperatures from -10°C to 55°C, suitable for typical industrial environments.
This model mounts directly onto standard DIN rails, facilitating quick installation and easy removal during maintenance.
It is equipped with screw terminals, providing secure and simple wiring connections.
The H3DS timer relay has ingress protection ratings of IP20 and IP30, allowing for use in cabinet-mounted applications.
It conforms to multiple standards including DIN 43880, UL, CE, and CSA, ensuring compliance with safety and quality requirements.
This timer relay is suitable for motor start sequencing, general purpose delay, and integration with PLC timing functions.
Timing is adjusted via a dial, allowing for straightforward on-site tuning of timing parameters.
It offers multiple timer functions including offset double ring end, timer, and star-delta motor starting sequences.
