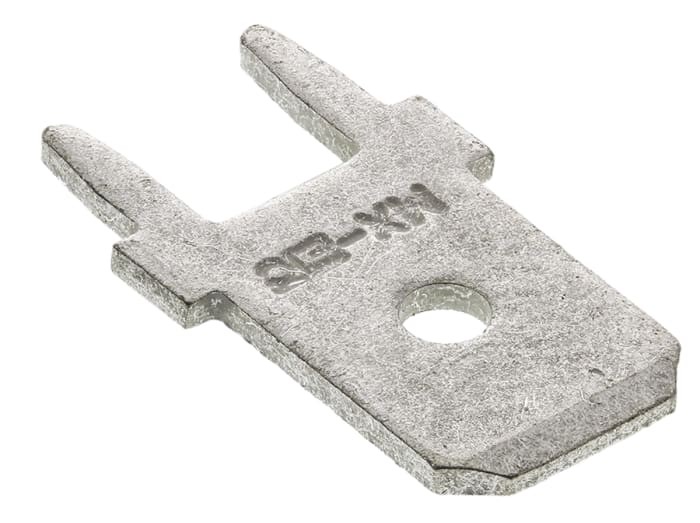

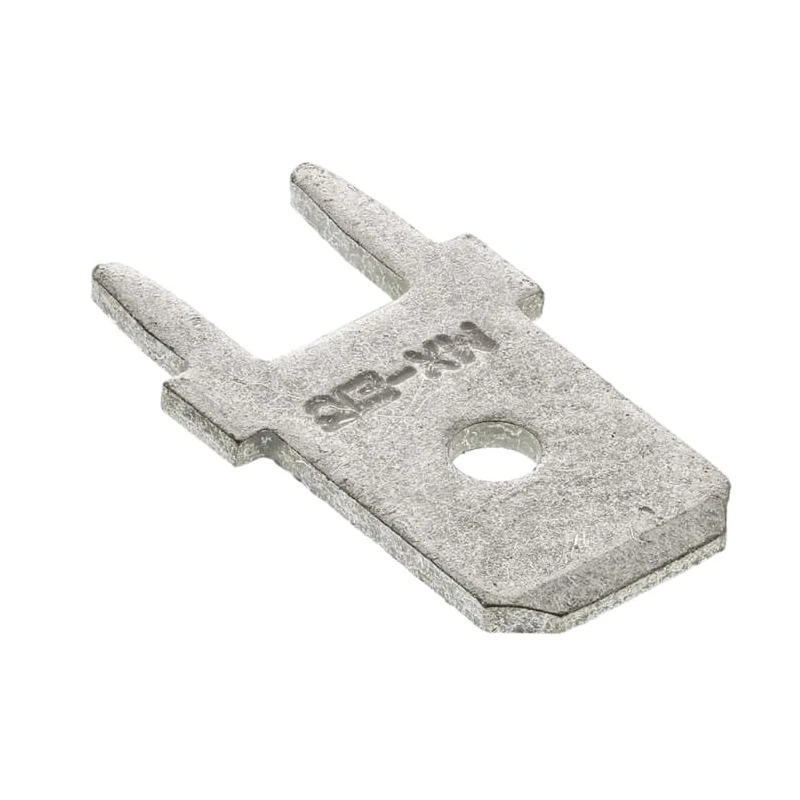

Molex Silver Uninsulated Male Spade Connector PCB Tab, Solder Termination, 6.35 x 0.81 mm Tab Size 19705-4301
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Silver |
| Orientation | Straight |
| Gender | Male |
| Insulation | Uninsulated |
| Overall Length | 7.9mm |
| Contact Material | Brass |
| Series | PCB Tab |
| Termination Type | Solder |
| Contact Plating | Tin |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Constructed with brass contact material for reliable conductivity.
- Silver-colored uninsulated design supports robust electrical connections.
- Solder termination ensures secure and durable attachment to wiring.
- Straight orientation suits standard PCB mounting requirements.
- Compact overall length of 7.9 mm fits tight assembly spaces.
- Conforms to NEMA specifications for quick disconnect PCB mount terminals.
- Includes 19705 Series specifying consistent quality and precision.
- Made in the United States assuring manufacturing standards.
Product Description
Molex 19705-4301 is a high-quality PCB Tab Silver Uninsulated Male Spade Connector specifically designed for solder termination applications in electronic and electrical components. Featuring a precise 6.35 x 0.81 mm tab size, this Spade Connector facilitates quick and reliable disconnects critical in power and signal circuits.
The connector uses brass as the contact material, plated with tin for enhanced corrosion resistance and excellent conductivity. Its uninsulated, silver-colored finish ensures optimal electrical performance without additional bulk from insulation materials, making it ideal for PCB mounting where space and electrical efficiency are crucial.
The straight orientation and compact overall length of 7.9 mm allow for straightforward PCB installation and integration in various electronic assemblies. The solder termination type guarantees a solid mechanical and electrical bond, supporting long-term durability in manufacturing and industrial environments.
This quick disconnect PCB mount tab terminal conforms to NEMA specifications, evidencing compliance with established electrical safety and performance standards. The 19705 Series is known for consistent manufacturing quality, ensuring compatibility and reliability across applications.
Manufactured in the United States, the product benefits from stringent production controls and material quality oversight, supporting its use in industrial, manufacturing, and electronic laboratory contexts.
High conductor brass contact with tin plating to prevent corrosion. Silver uninsulated finish for efficient electrical contact. 6.35 x 0.81 mm tab size, commonly used in PCB quick disconnect applications. Solder termination provides permanent and reliable connections.
Compact and straight design for space-saving PCB installation. Conforms to NEMA standards ensuring safety and durability. Part of the reputable Molex 19705 series, trusted in electrical component markets.
These connectors are widely employed in electronics manufacturing, laboratory equipment assemblies, HVAC control systems, and other commercial and industrial electrical installations.
Explore more Molex connectors and similar electronic components in EnvMart’s comprehensive catalog for reliable sourcing and quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this male spade connector is 6.35 x 0.81 mm.
This model uses solder termination, ensuring a secure and durable attachment to wiring.
The overall length of this spade connector is 7.9 mm, making it suitable for tight assembly spaces.
The contact material used in this connector is brass, which is plated with tin for enhanced corrosion resistance.
No, this connector is uninsulated, which allows for efficient electrical contact without additional bulk.
The orientation of this spade connector is straight, suitable for standard PCB mounting requirements.
This connector is manufactured in the United States, ensuring adherence to stringent production standards.
It conforms to NEMA specifications for quick disconnect PCB mount terminals, ensuring safety and performance standards.
This connector is part of the Molex 19705 series, known for consistent manufacturing quality.
This model is widely employed in electronics manufacturing, laboratory equipment assemblies, and HVAC control systems.
The tab dimensions are 6.35 mm in width and 0.81 mm in thickness.
This connector is male, designed for specific applications requiring a male connection.
