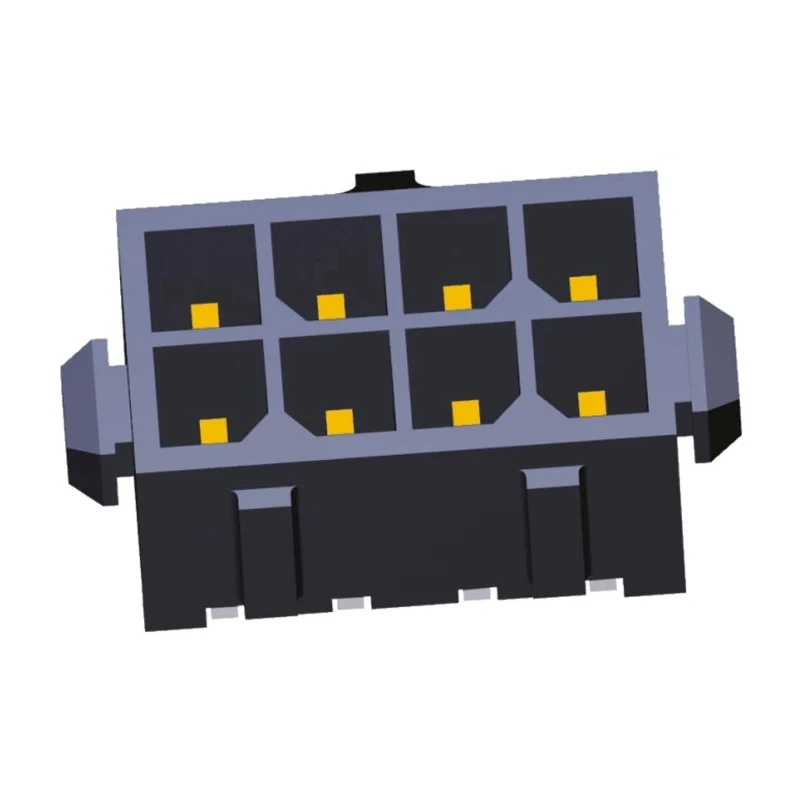

TE Connectivity Micro MATE-N-LOK Series Straight Through Hole PCB Header, 8 Contacts, 3 mm Pitch, 2 Row 3-794632-8
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- Constructed with nylon housing for durability and insulation.
- Features gold-plated brass male contacts ensuring excellent conductivity.
- Offers through-hole mounting with 3.18 mm tail pin length for stable PCB attachment.
- Operates safely up to 250 V and 5 A current rating.
- Polarized design prevents mis-mating and includes positive lock tabs for secure connections.
- Designed for operating temperatures from -65°C to 105°C.
- Ideal for household appliances, lighting, factory automation, data storage, and security systems.
- Shrouded housing enhances connector protection and reliability.
Product Description
TE Connectivity 3-794632-8 Micro MATE-N-LOK Series Straight Through Hole PCB Header is a precision engineered wire-to-board connector featuring 8 male contacts arranged in 2 rows with a 3 mm pitch. It incorporates a durable nylon housing with a shrouded design to protect contacts and prevent damage.
This connector offers a current rating of 5 A and is rated for voltages up to 250 V, suitable for various electronic applications requiring reliable connectivity. The brass contacts are gold-plated for optimum conductivity and corrosion resistance, with solder termination designed for through-hole PCB mounting and a tail pin length of 3.18 mm to ensure robust mechanical and electrical connection.
Operating temperature ranges from -65°C to 105°C, making it adaptable to demanding environments. The connector includes polarization and positive locking tabs that prevent mis-mating and provide secure cable locking, enhancing system reliability.
Common industrial and commercial applications include household appliances, lighting solutions especially LED lighting, factory automation, data storage, and security systems, benefiting from the connector’s low profile and strong performance.
TE Connectivity's Micro MATE-N-LOK system supports various configurations and is compatible with wire-to-wire and wire-to-panel connectors in the series, allowing flexible design integration.
Constructed with nylon housing for durability and insulation. Features gold-plated brass male contacts ensuring excellent conductivity. Offers through-hole mounting with 3.18 mm tail pin length for stable PCB attachment.
Operates safely up to 250 V and 5 A current rating. Polarized design prevents mis-mating and includes positive lock tabs for secure connections. Designed for operating temperatures from -65°C to 105°C. Ideal for household appliances, lighting, factory automation, data storage, and security systems.
Shrouded housing enhances connector protection and reliability.
Explore the TE Connectivity Micro MATE-N-LOK Series and related PCB Connectors in the Electronics & Electricals category at EnvMart for your precise industrial and commercial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely at a voltage of up to 250 V and a current rating of 5 A.
It features a 3 mm pitch and includes 8 male contacts arranged in 2 rows.
The housing is constructed from nylon, providing durability and insulation.
The tail pin length is 3.18 mm, designed for stable PCB attachment.
This unit supports through-hole mounting for easy installation on PCBs.
It is designed to operate within a temperature range of -65°C to 105°C.
Yes, it includes a polarized design and positive lock tabs to prevent mis-mating and ensure secure connections.
This model utilizes solder termination for reliable electrical connections.
The contacts are made of brass and are gold-plated to ensure excellent conductivity and corrosion resistance.
It is ideal for various applications including household appliances, lighting, factory automation, data storage, and security systems.
Yes, it is compatible with wire-to-wire and wire-to-panel connectors in the Micro MATE-N-LOK series, allowing flexible design integration.
The orientation of this connector is straight, facilitating straightforward installation on PCBs.
