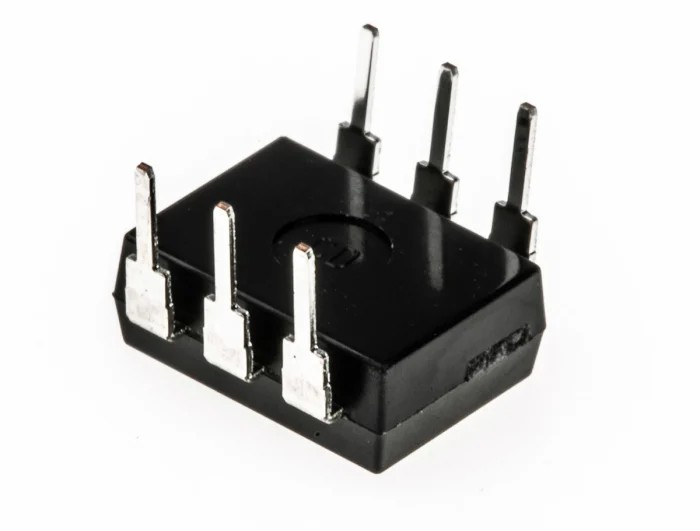

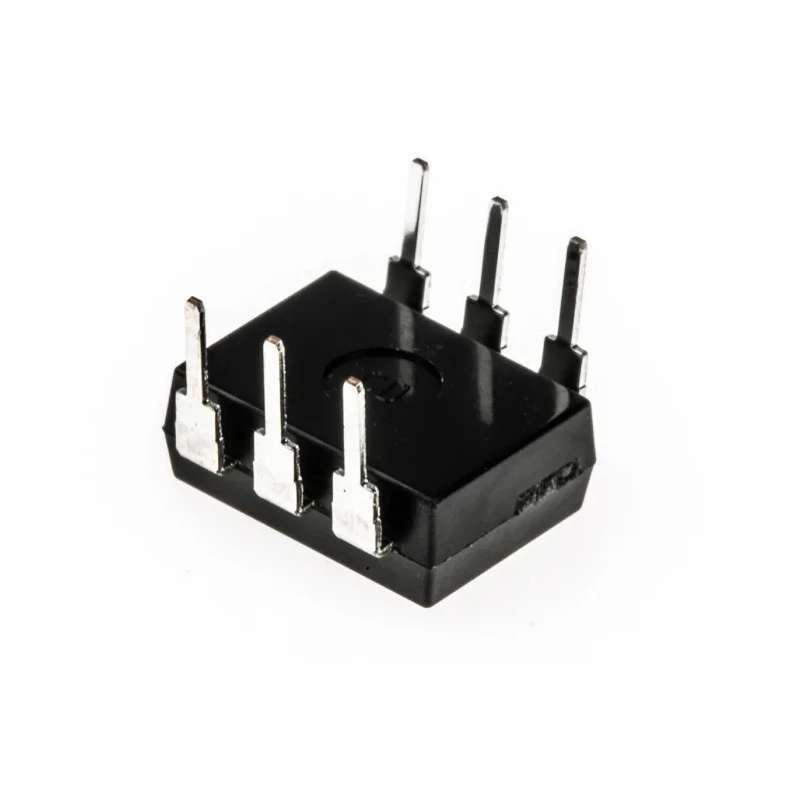

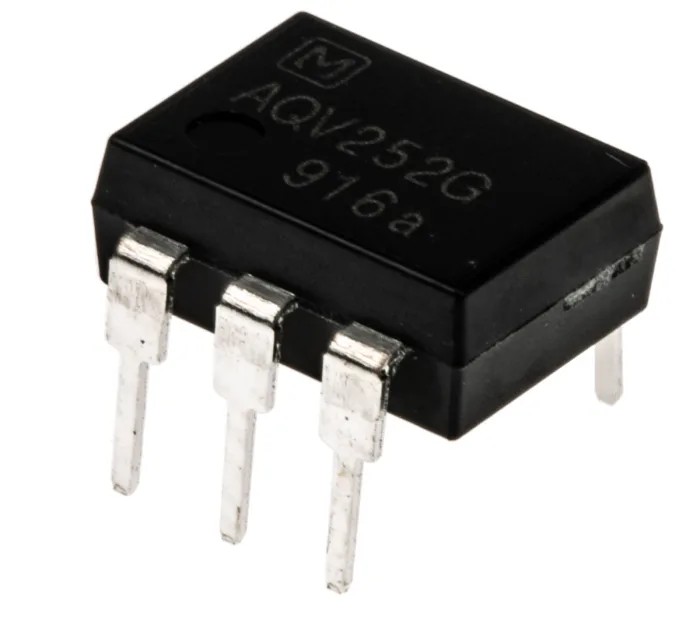

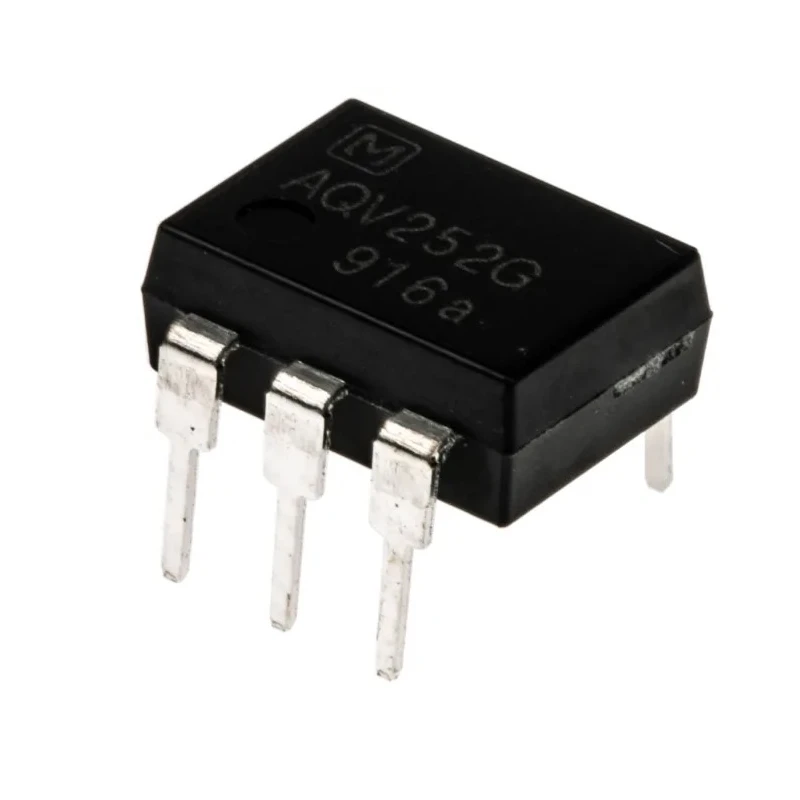

Panasonic HE 1 Form A High Capacity Series Solid State Relay, 2.5 A Load Current, 60 V Load Voltage, 5 V DC Control AQV252G

Panasonic AQV252G HE 1 Form A High Capacity Series Solid State Relay is a high-performance electronic component designed for switching applications that require reliable and efficient operation. It supports a maximum load current of 2.5 A and a maximum load voltage of 60 V, making it suitable for diverse industrial, automation, and control system uses.

This solid state relay features a MOSFET output type which ensures fast switching speeds and minimal off-state leakage current, measured at only 1 microampere, enhancing energy efficiency and reducing heat generation in circuits. The relay’s on-state resistance is an exceptionally low 0.035 ohms, contributing to low power loss during operation.

The compact DIP package with standardized PCB terminal makes for easy installation on PCBs, while the SPST contact configuration supports simple circuit design requirements. The relay operates reliably in harsh environmental conditions with a temperature range of -40°C to 85°C, suitable for industrial automation, manufacturing control, instrumentation, and HVAC applications.

Panasonic’s HE 1 Form A series emphasizes reinforced insulation for enhanced operational safety and adheres to key international certifications including EN62368-1 (VDE) and UL1577, ensuring compliance with industrial electrical safety standards.

The minimal output capacitance of 0.8 pF reduces noise susceptibility in sensitive electronics, making the AQV252G ideal for precision control systems. Produced in Japan, this relay guarantees high quality assurance and extended lifespan for demanding applications.

Supports a maximum load current of 2.5 A for high capacity operation. Operates at maximum load voltage of 60 V allowing versatile applications. Low on-state resistance of 0.035 ohms ensuring efficient conduction. Compact DIP package with dimensions of 8.8 mm length by 3.9 mm width and height.

MOSFET output type delivering fast switching and low leakage current of 1 μA. Operating temperature range from -40°C to 85°C suitable for harsh environments. PCB terminal type with SPST contact configuration for straightforward installation.

Reinforced insulation and compliance with EN62368-1 (VDE) and UL1577 standards. Extremely low output capacitance of 0.8 pF minimizes noise interference. Manufactured in Japan with proven quality and durability. Explore the comprehensive Panasonic Solid State Relay range on EnvMart to find durable and reliable components for industrial electronics and automation projects.
